Installation
19
User Manual

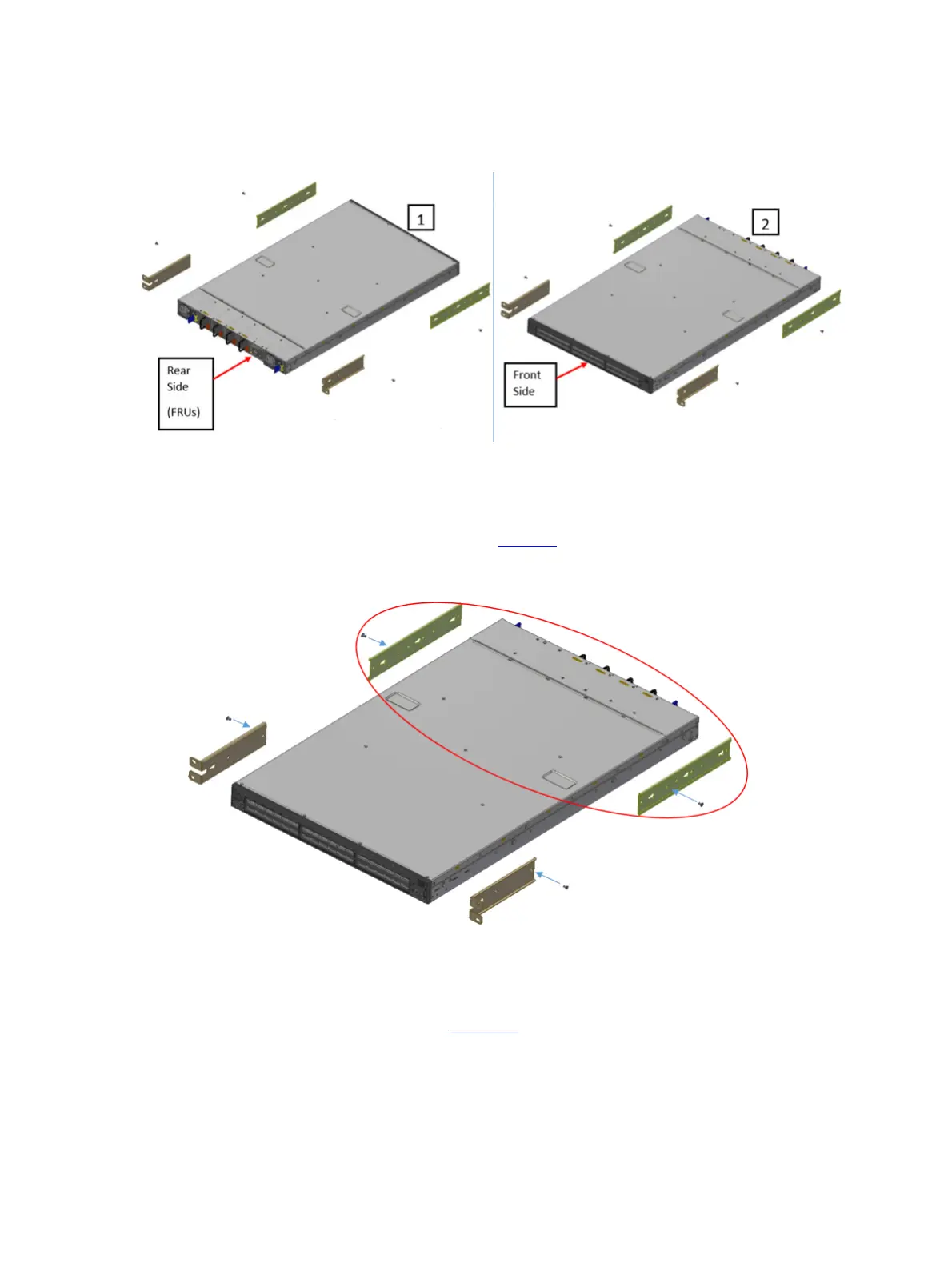

Figure 8: Installation Options
Step 1. Attach the left and right rack mount rails (A) to the switch, by gently pushing the switch
chassis’ pins through the slider key holes, until locking occurs.
Step 2. Secure the chassis in the rails by screwing 2 flat head Phillips screws (E) in the designated
points with a torque of 1.5±0.2 Nm. See
Figure 9.
Figure 9: Attaching the Rails to the Chassis
Step 3. Attach the left and right rack mount brackets (B) to the switch, by gently pushing the switch
chassis’ pins through the slider key holes, until locking occurs. Secure the system in the
brackets by screwing the remaining 2 flat head Phillips screws (E) in the designated points
with a torque of 1.5±0.2 Nm. See
Figure 10.
