60 User Manual
3.2.1.3 Power Supply Status LEDs

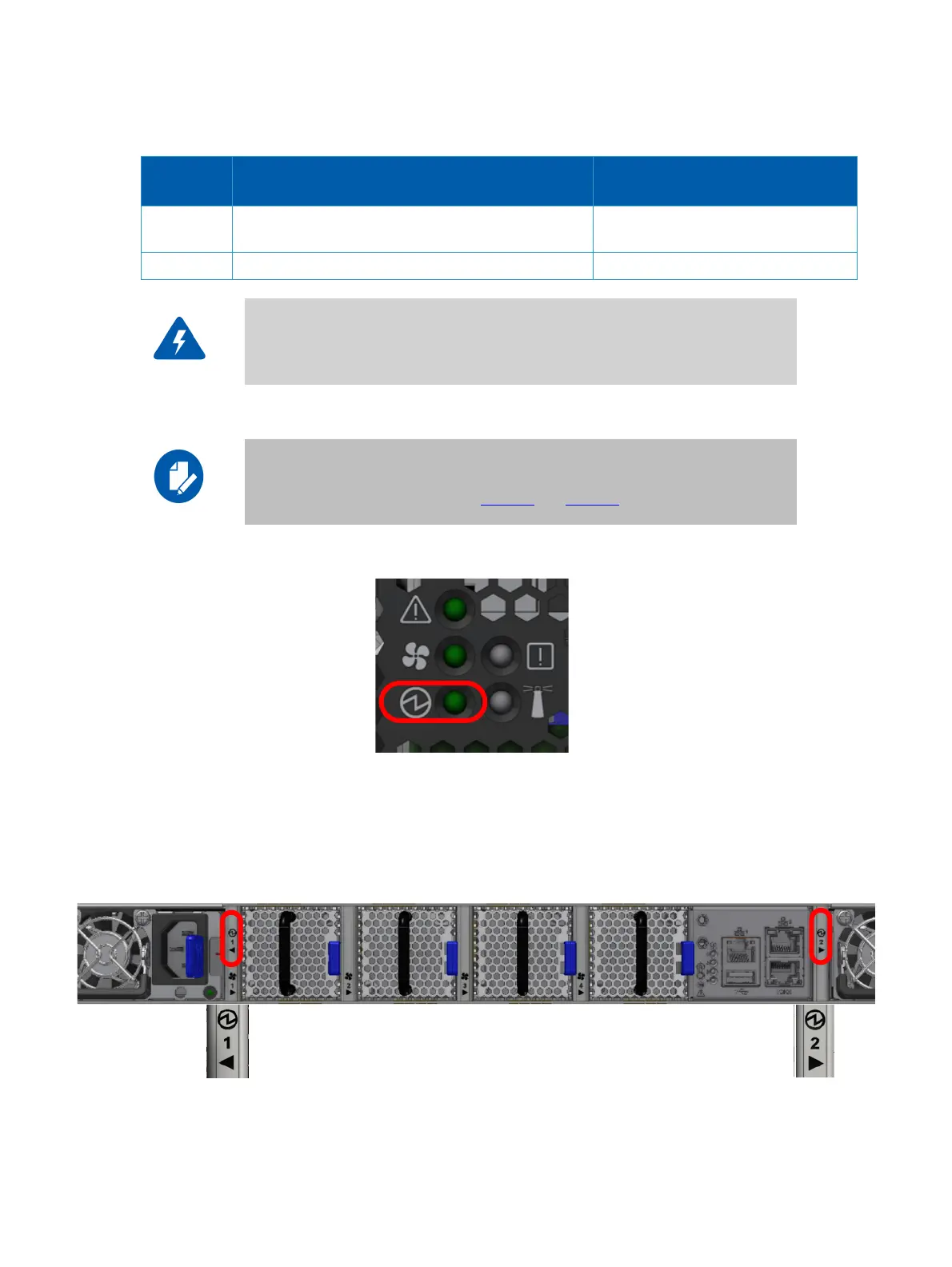

Figure 58: Power Status LED
There are two power supply inlets in the system (for redundancy). The system can operate with
only one power supply connected. In case the power supply is an FRU, a second power supply
unit can be added to support hot-swap ability. Each power supply unit has a single 2 color LED
on the right side of the unit, that indicates the status of the unit.
Figure 59: SN2700M and SN2410M/SN2410bM Rear Side Panel
Solid Red A specific fan unit is missing or not
operating properly.
The fan unit should be replaced.
Off System boot N/A
Risk of Electric Shock!
With the fan module removed, power pins are accessible within the module cavity.
Do not insert tools or body parts into the fan module cavity.
The following information does not apply to the SN2100M systems. In these systems,
the power supply units are non-replaceable, and there is a designated LED for each
unit in the system’s front panel. See Figure 3
and Figure 5.
LED
Behavior
Description Action Required
