2.6.1.2 SN2700M Splitting Options

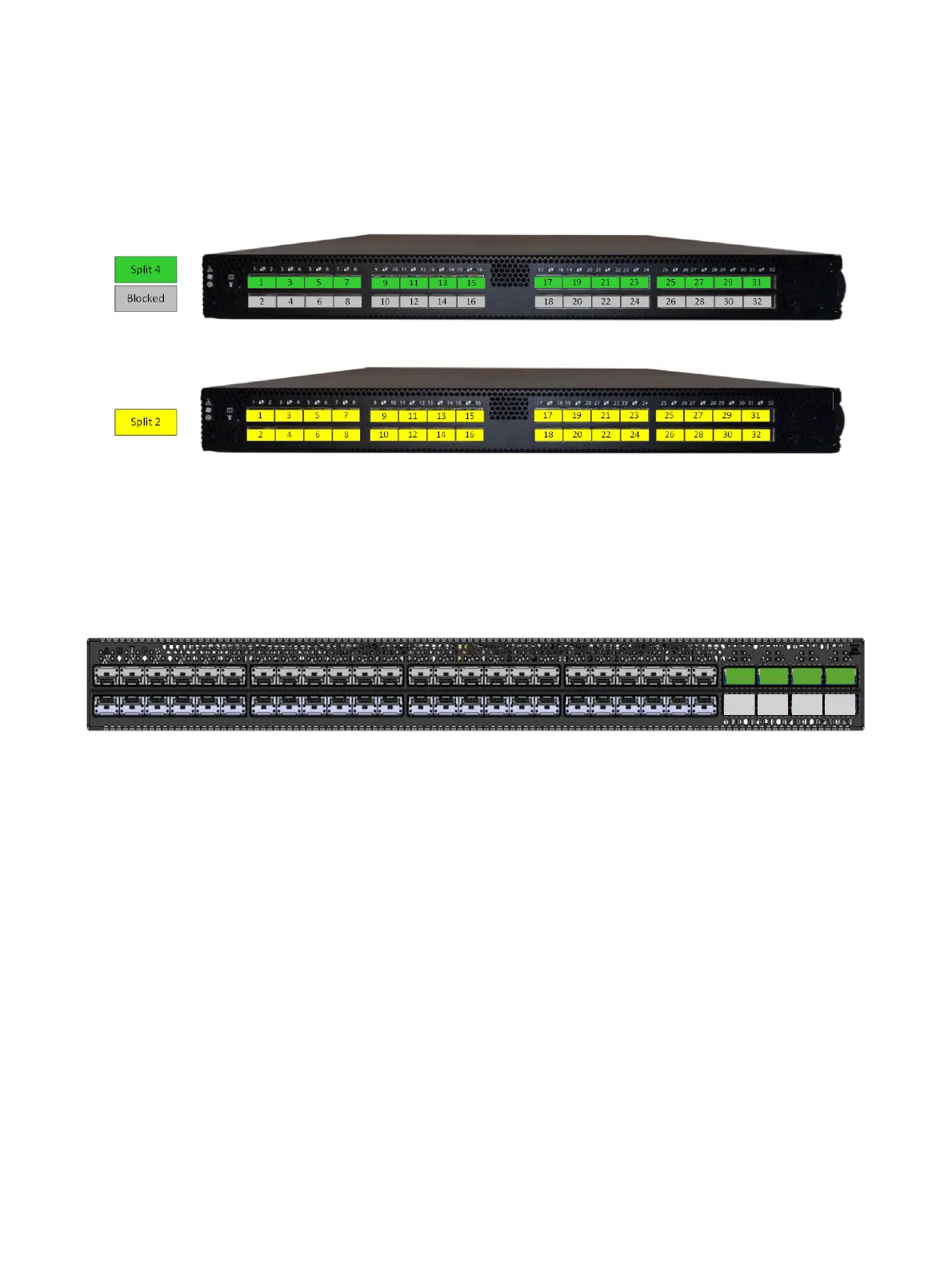

Figure 42: SN2700M Splitting Options
The top QSFP28 ports marked in green are splittable to 4 SFP28 ports, each. The bottom
QSFP28 ports (gray) are blocked when the upper ports are in split mode. All QSFP28 ports
marked in yellow can be split to 2 SFP28 ports.
2.6.1.3 SN2410M/SN2410bM Splitting Options
Figure 43: SN2410M/SN2410bM Splitting Options
The top QSFP28 ports - 49,51,53,55 (green) are splittable to 4 SFP28 ports each.
All QSFP28 ports can be split into two SFP28 ports.
The bottom QSFP28 ports - 50,52,54,56 (gray) are blocked when the upper ports are in split
mode.
