Installation
27
User Manual

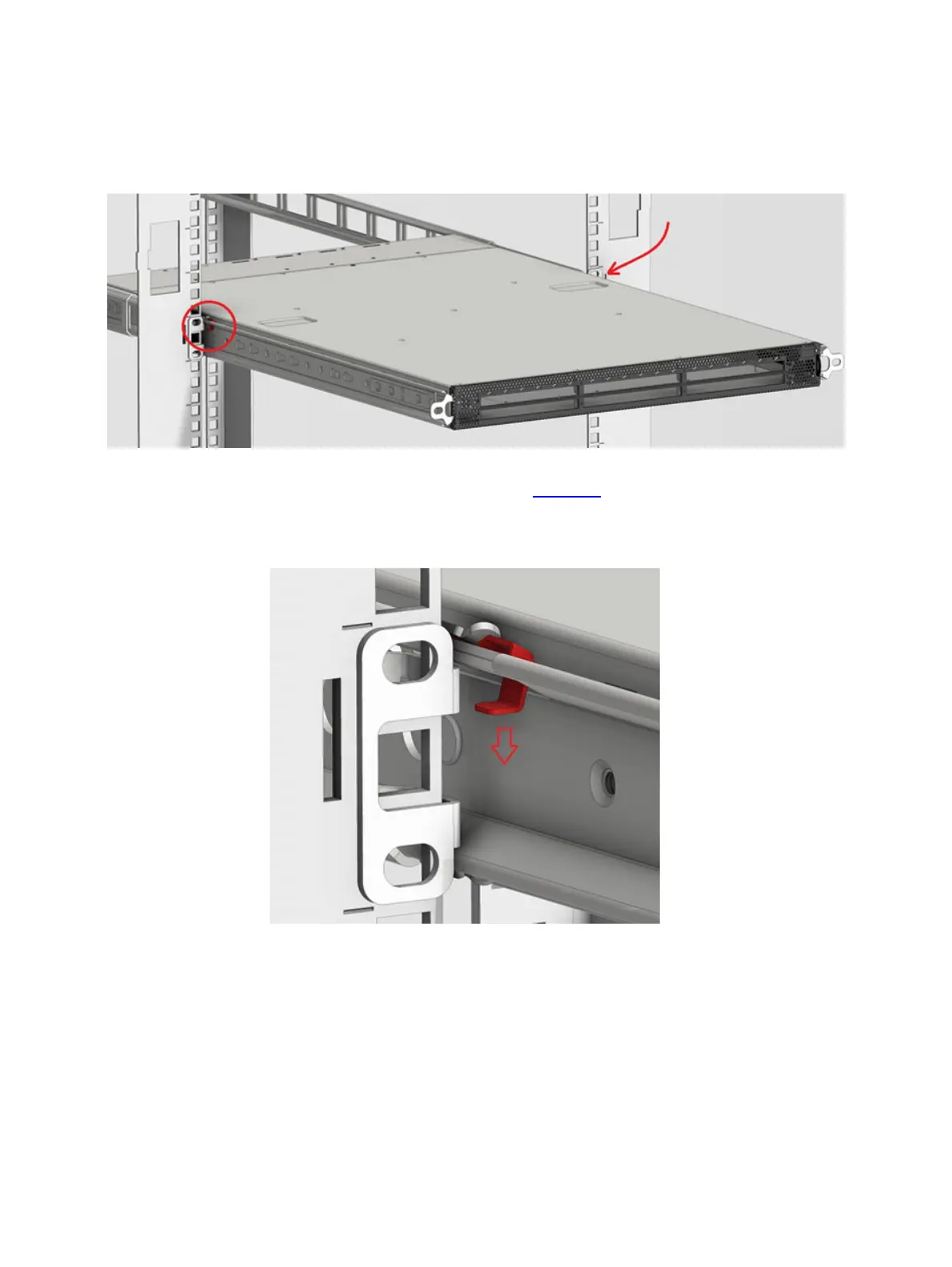

Figure 21: Pulling the Unit Outwards
Step 4. Press on the locking spring (appears in red in Figure 22) on both sides simultaneously, and
continue pulling the unit towards you until it is fully removed.
Figure 22: Locking Mechanism
