20 User Manual

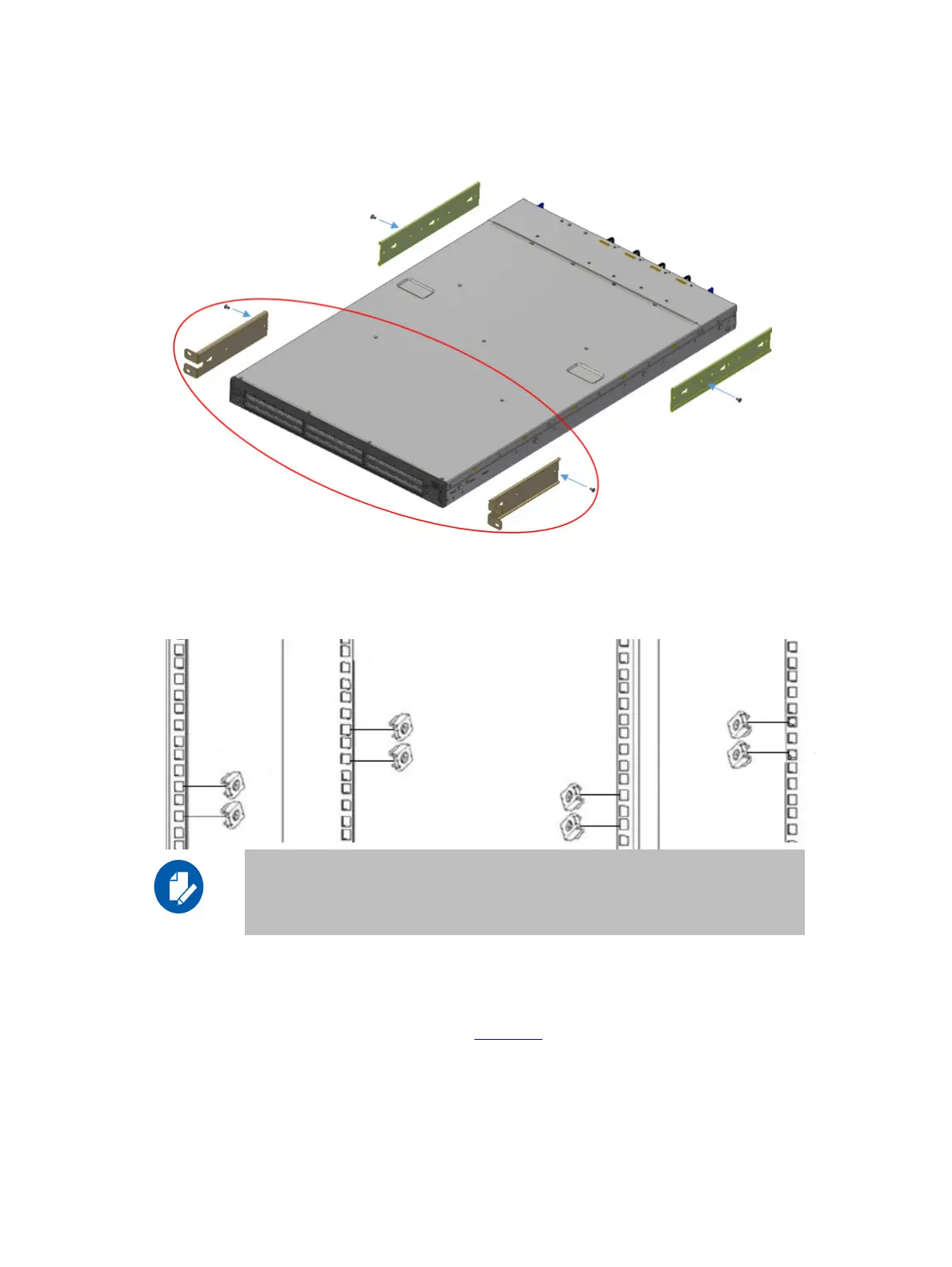

Figure 10: Attaching the Brackets to the Chassis
Step 4. Install 8 cage nuts in the desired 1U slots of the rack: 4 cage nuts in the non-extractable side
(in the top and bottom holes only) and 4 cage nuts in the extractable side.
Figure 11: Installing the Cage Nuts
While your installation partner is supporting the system’s weight, perform the following steps:
Step 5. Mount the system into the rack enclosure, and attach the brackets installed on the system to
the rack’s posts. Secure the brackets to the rack’s posts by inserting four M6 screws in the
designated cage nuts, as described in
Figure 12. Do not tighten the screws yet.
While each rack U (unit) consists of three holes, the cage nut should be installed verti-
cally with its ears engaging the top and bottom holes only.
