38 User Manual

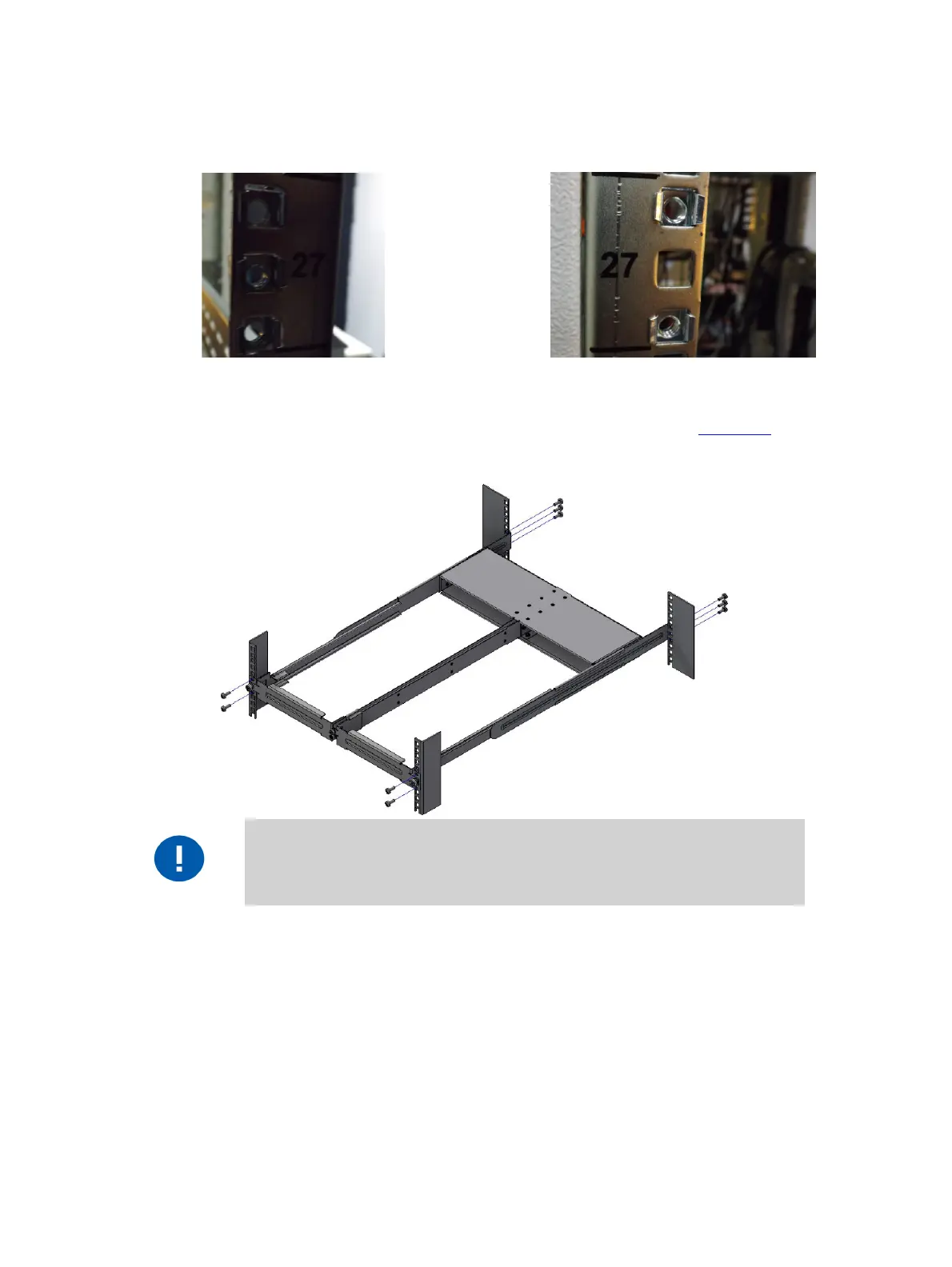

Figure 36: Installing the Cage Nuts
Step 7. Attach the frame to the rack by using ten spacer cage nut to adapt the square openings in the
vertical support, and screwing ten M6 pan head screws - four in the front part of the rack,
and 6 in its rear part. The recommended torque is 6.55-7.35 Nm. See
Figure 36.
Figure 37: Attaching the Frame to the Rack
Step 8. Remove the blank cover from the selected slot in the frame, and mount the system by slid-
ing its mounting blades into the frame. Repeat this step to install an additional system in the
other side of the frame, if needed.
Step 9. Tighten the capture nuts to secure the system in the frame. The recommended torque on the
right screw is 3.0-3.36 Nm while on the left screw recommended torque is 0.89-0.98 Nm.
Do not remove both of the blank covers at the same time. When no system is installed,
at least one of them should be present to support the frame’s partition.
