HPE SN2100M

54 User Manual
3 Interfaces
3.1 Supported Interfaces
The systems support the following interfaces:
• Data interfaces - Ethernet
• 10/100/1000 MbE speed rates
• USB port (mini USB in SN2100M)
• RS232 Console port
• RJ45 management interface(s)
• Reset button
• Status and Port LEDs
In order to review the full configuration options matrix, refer to Table 4, “Management Inter-
faces, PSUs and Fans”.
3.1.1 Data Interfaces
The data interfaces use QSFP28 connectors. The full list of interfaces per system is provided in
Table 3, “Speed and Switching Capabilities”. Each QSFP28 port can be connected with a
QSFP28 cable or connector for 25/40/50/56/100GbE, or 1/10/25GbE when connecting through
QSFP28 to SFP28 (QSA) adapters, hybrid or split cables. The systems offer High Power/LR4
transceivers support (up to 3.5W) in all QSFP28 ports. Some QSFP28 ports support 4.5W trans
-
ceivers, as detailed in the following table:
Table 13 - High Power/LR4 Transceivers Support
The SFP28 ports in SN2410M/SN2410bM support Level II (up to 1.5W) transceivers.

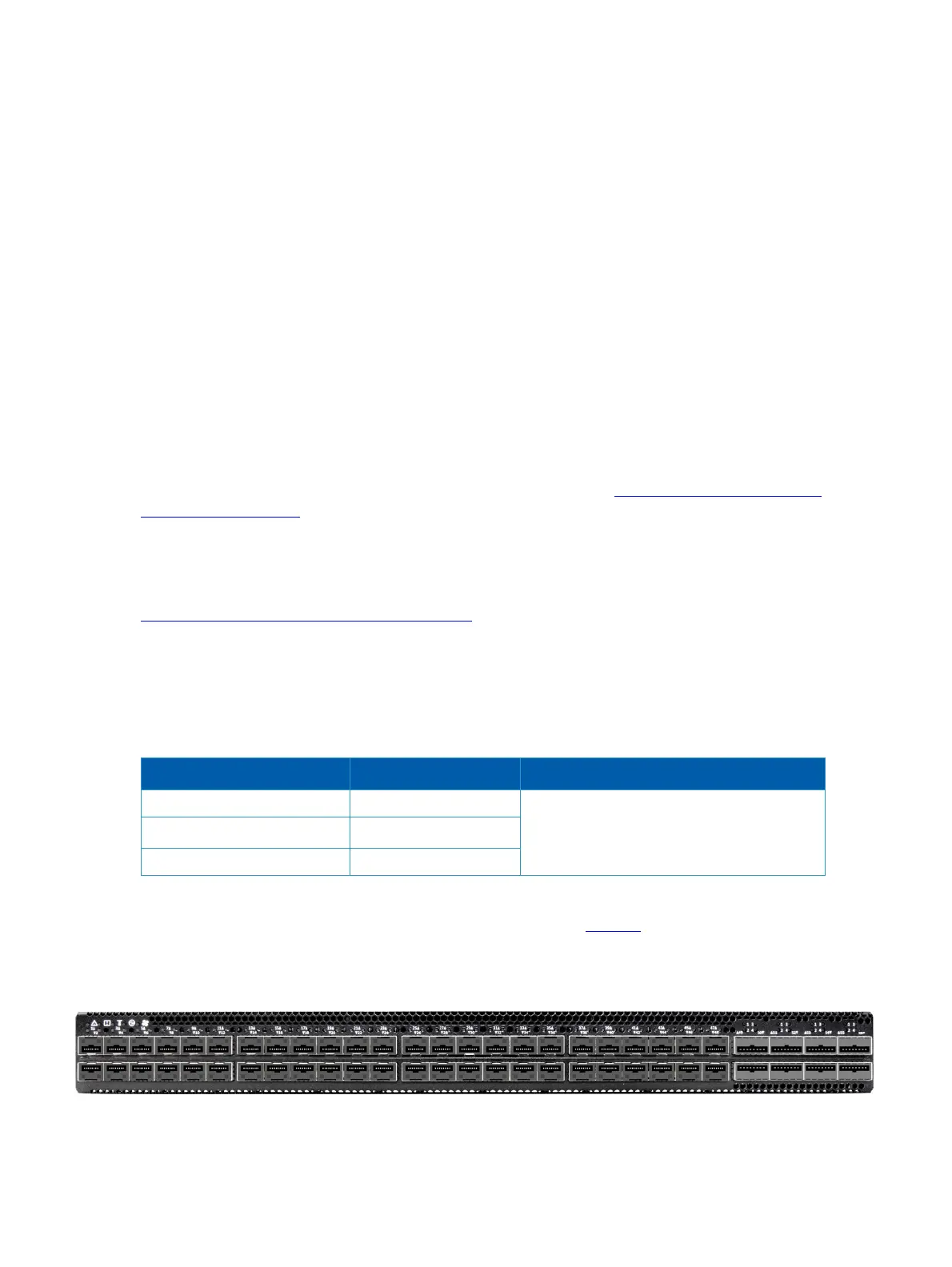

Figure 51: Using 4.5W Modules on Ports 49, 50, 55, 56 in SN2410M/SN2410bM
Model Family Ports Maximum High Power Support
SN2700M 1, 2, 31, 32
4.5W
a
a. 4.5W high power modules are supported on MLNX-OS from version 3.6.3004 onwards.
SN2410M/SN2410bM
b
b. When using 4.5W modules on the specified four ports, only cables and transceivers with lower power
than 1.5W can be used on ports 51, 52, 53 and 54. See illustration in
Figure 51.
49, 50, 55, 56
SN2100M 1, 2, 15, 16
4.5W
4.5W
4.5W
4.5W
Up to 1.5W
Up to 1.5W
Up to 1.5W
Up to 1.5W
