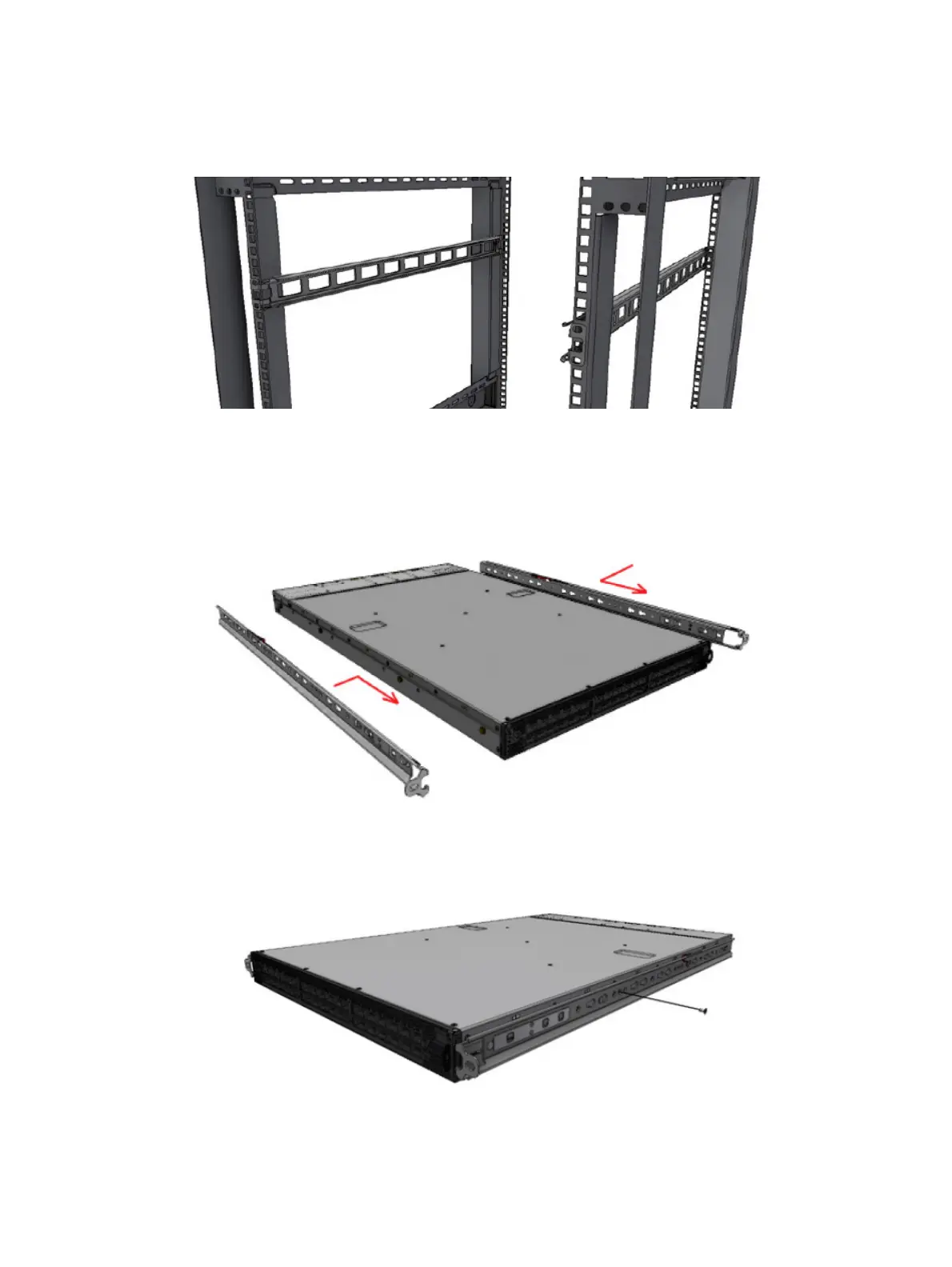

Figure 17: Mounting the Outer Rails into the Rack
Step 3. If cable accommodation is required, route the power cable and/or Eth cable through either
of the outer rails.
Step 4. Attach the switch to the left and right inner rails (A+B), by gently pushing the switch chas-
sis’ pins through the slider key holes, until locking occurs.
Figure 18: Attaching the Inner Rails to the Chassis
Step 5. Secure the chassis in the inner rails by screwing the 2 flat head Phillips screws (F) in the
designated points with a torque of 1.5±0.2 Nm.
Figure 19: Securing the Chassis in the Inner Rails
Step 6. Slide the switch into the rack by carefully pushing the inner rails into the outer rails installed
on the rack.
