62 User Manual
3.2.1.4 UID LED
The UID LED is a feature that can be used to find a particular system within a cluster. The spe-
cific system is signified by the blue UID LED.
3.2.1.5 Bad Port LED
The Bad Port LED indicator is used to indicate symbol errors in one or more system ports.
Table 21 shows the bad port status LED assignment.
3.2.1.6 Port LEDs

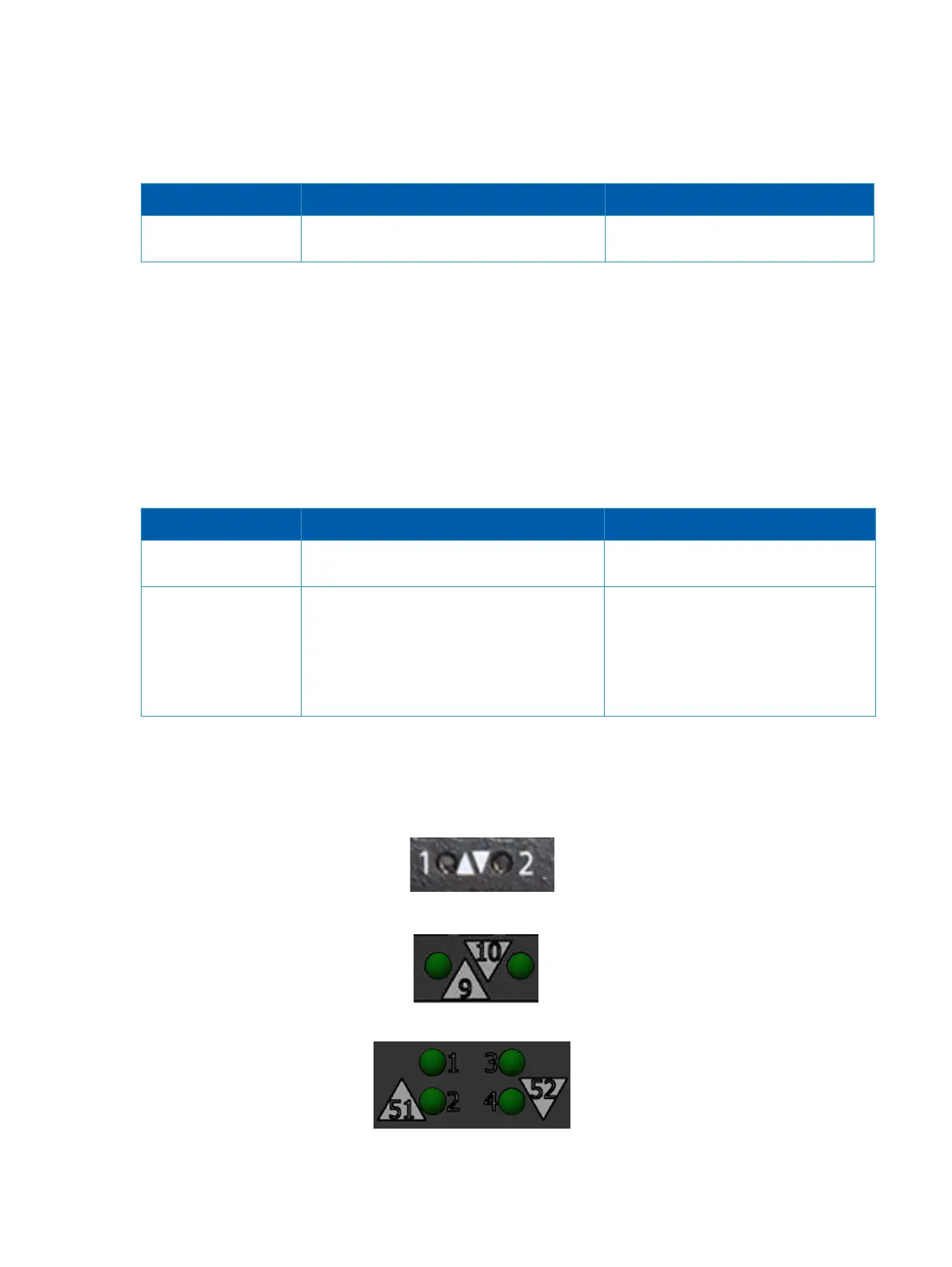

Figure 60: SN2700M Port LEDs
Figure 61: SN2410M/SN2410bM SFP28 Port LEDs
Figure 62: SN2410M/SN2410bM QSFP28 Port LEDs
Off No AC power to all power supplies. Call your HPE representative for assis-
tance.
Table 21 - Bad Port LED Assignments
LED Configuration Description Action Required
Off No symbol errors have been received in last
few seconds (normal condition).
N/A
Flashing Amber Error, one or more ports have received sym-
bol errors.
Possible causes are:
• Bad cable
• Bad connection
• Bad connector
Check symbol error counters on the
system UI to identify the ports.
Replace the cable on these ports.
Table 20 - Power Supply Unit Status Rear LED Assignments
LED Behavior Description Action Required
