Step 1. Insert the SE (single ended) plugs to the dedicated inlets in the system’s rear panel.
Step 2. Carefully position the SE (single ended) cables one on top of the other, and use three cable-
ties to pair them together, as shown in
Figure 30.

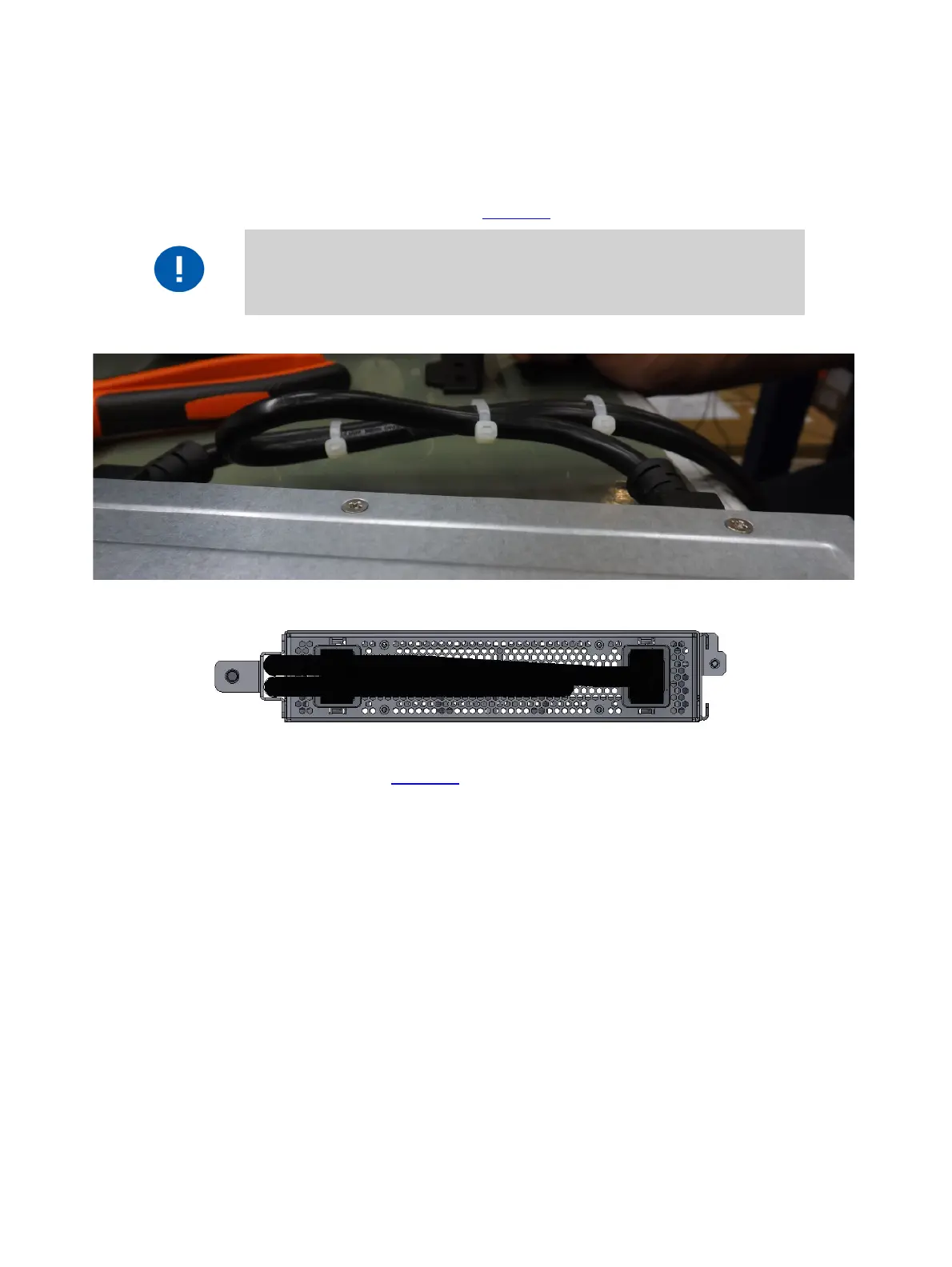

Figure 30: Coupling the Cables with Cable-ties
Figure 31: Coupled Cables - Rear View
Step 3. Place the coupled cables in the designated area within the right flat blade (the blade with 7
screw holes) as shown in
Figure 30.
While pairing the cables, make sure the cables are paired in symmetry to the switch, in
order to avoid damaging the cables.
