Device bay partitions
Vertical frame partitions
There are two vertical partitions between device bays in the frame. These nonremovable partitions provide structural
integrity to the frame as well as mechanical attach points for the horizontal shelf that divide a full-height bay into two
half-height bays.
Up to six full-height device modules can be installed in a frame.

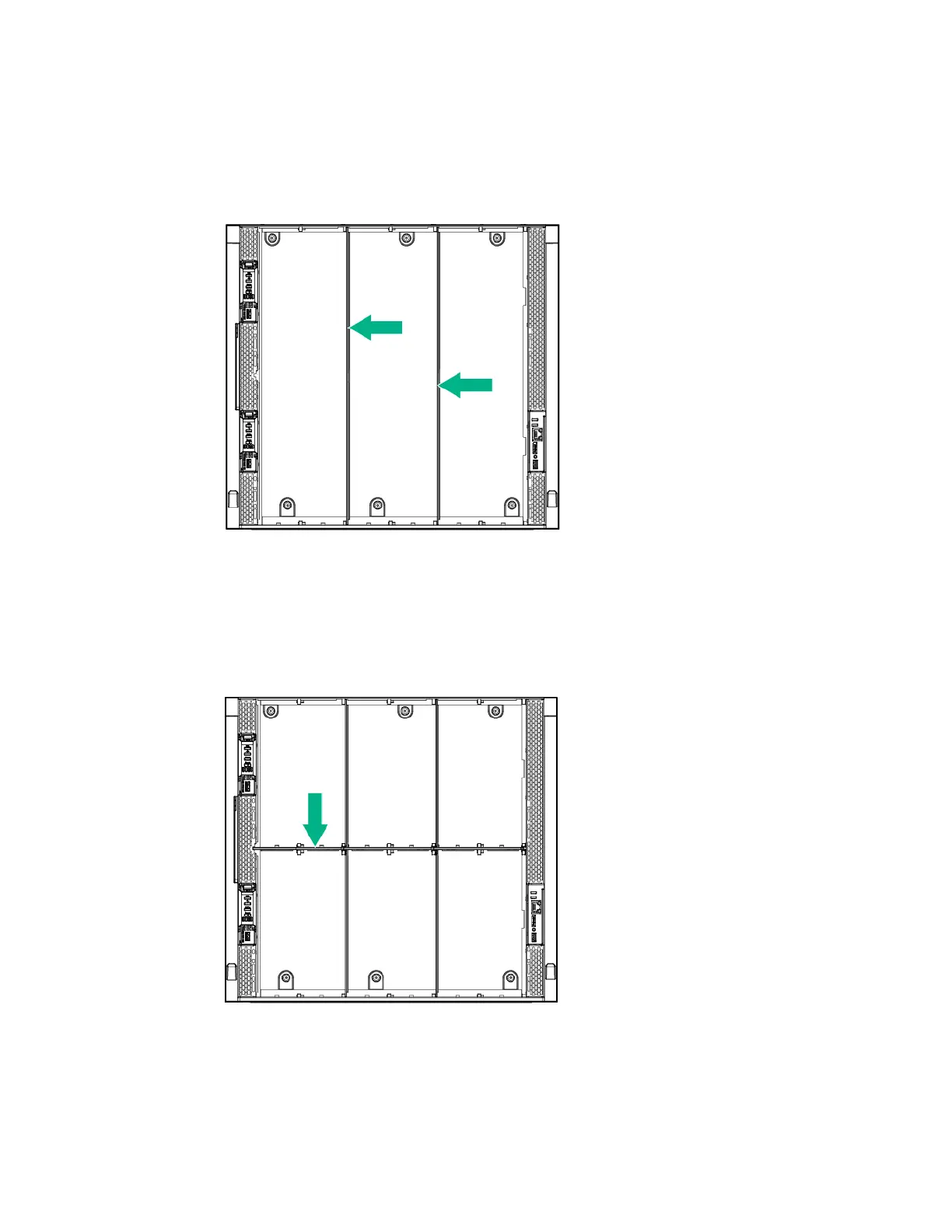

Figure 3: Vertical partitions
Horizontal frame partitions
The horizontal frame partitions are removable shelves that divide a full-height device bay into a half-height device bay.
Up to 12 half-height device modules can be installed in a frame.
Figure 4: Horizontal partitions
An optional horizontal half shelf can be installed between bay 1 and bay 7 to enable those bays to be used by half-height
device modules when a full-height module is installed in bay 2.
