HPE Synergy 12000 Frame

WARNING: To reduce the risk of personal injury or damage to the equipment in a rack-free environment:
◦ Never stack the frame on top of another frame.
◦ Never place equipment on top of the frame.
◦ Never place the frame on a surface that cannot support up to 24950 kg ( 55000 lb).
HPE Synergy configuration
An initial setup for HPE Synergy requires software release planning and planning the location for each component. To
ensure a proper configuration, review the information in the following documents on the Hewlett Packard Enterprise
website (http://www.hpe.com/info/synergy-docs):
• HPE Synergy Configuration and Compatibility Guide—This document helps to understand more about each
component and the configuration requirements for installing each component. It provides the following:
◦ An overview of HPE Synergy management and fabric architecture
◦ Detailed hardware component identification
◦ Hardware configuration guidelines
◦ Interconnect, power, and HPE Synergy Console cabling information
• HPE Synergy Cabling Guide—This document provides detailed information and diagrams on how to cable HPE
Synergy.
• HPE Synergy Migration Guide—This document takes you through the steps to migrate to the latest oerings of
appliances and Frame Link Modules.

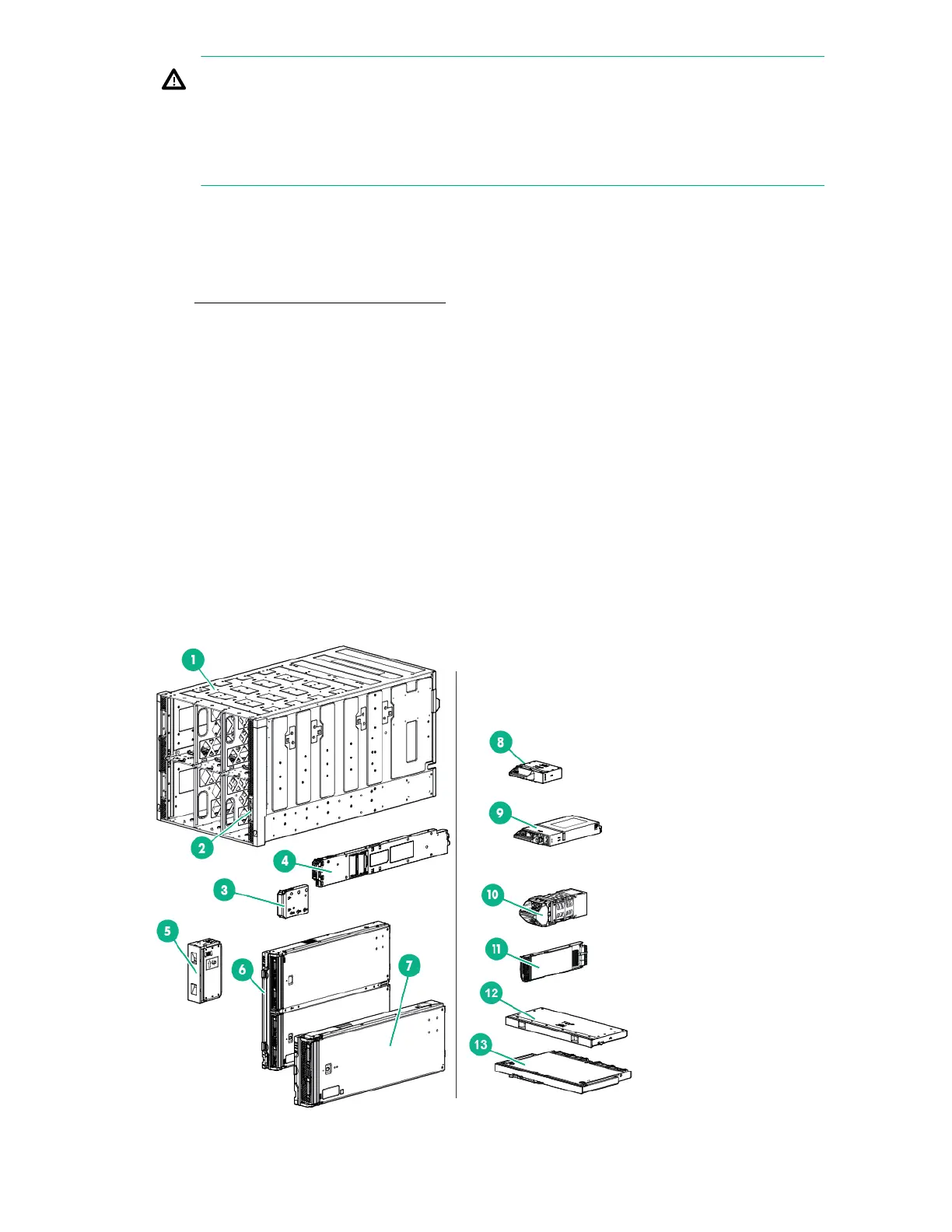

Pallet contents
10 Planning the installation
