Item LED Status Definition
Flashing amber Thermal warning, close the
drive drawer
2 UID Solid blue One or more drives are
being located
Flashing blue Firmware flash in progress
O No drives are being located
3 Health status Green Normal operation
Flashing amber Degraded condition
Flashing red Critical condition
4 Drive status (in priority
order)
Solid amber One or more drives failed
Flashing amber One or more drives are
predicted to fail
Flashing green One or more drives are
rebuilding or transforming
Solid green One or more drives are
members of a logical drive
O No drives are configured by
a RAID controller
5 Drawer power Green Storage module is in use, do
not remove
O Storage module is not in use,
safe to remove
1
The drive drawer must be closed within five minutes after it is opened.

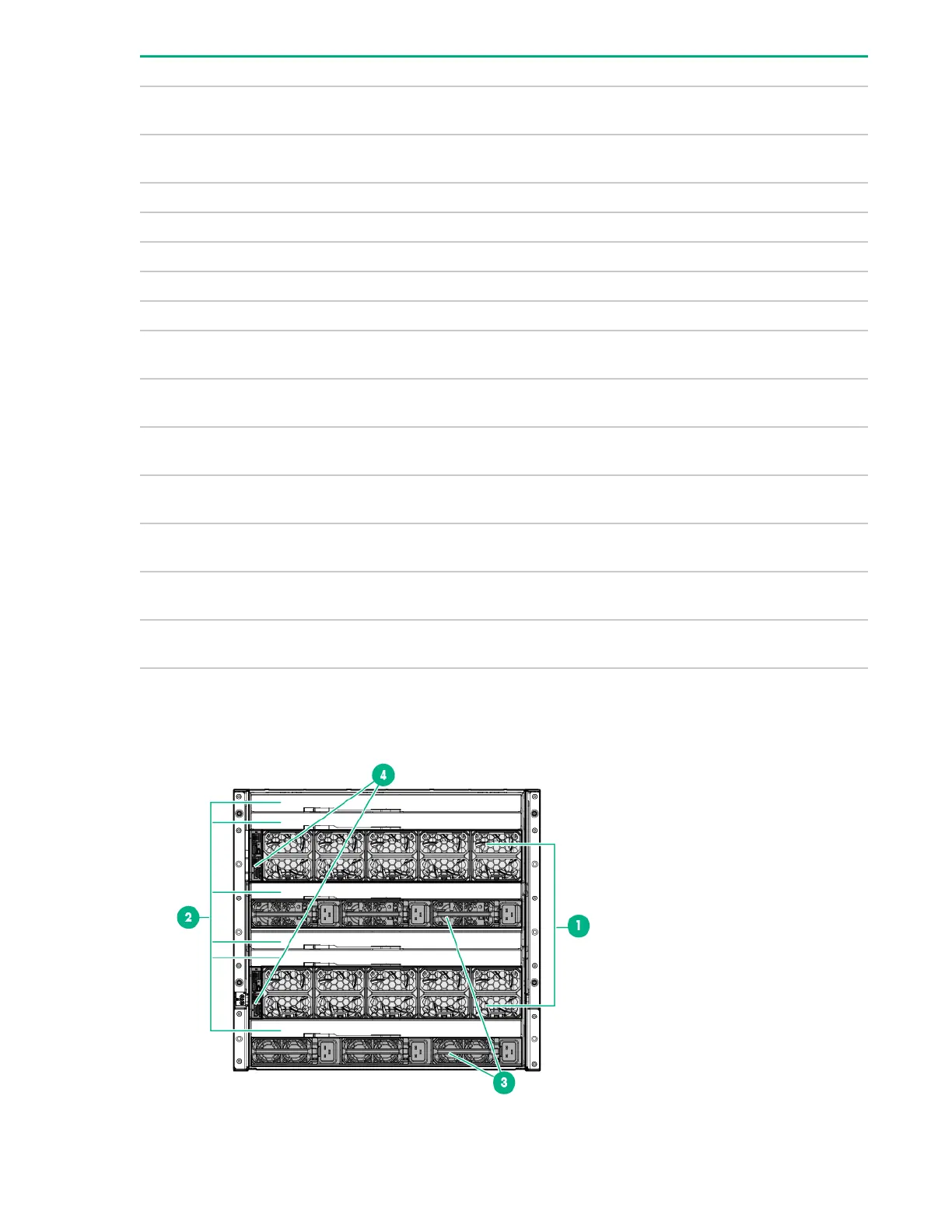

Frame rear components
24 Component and LED identification
