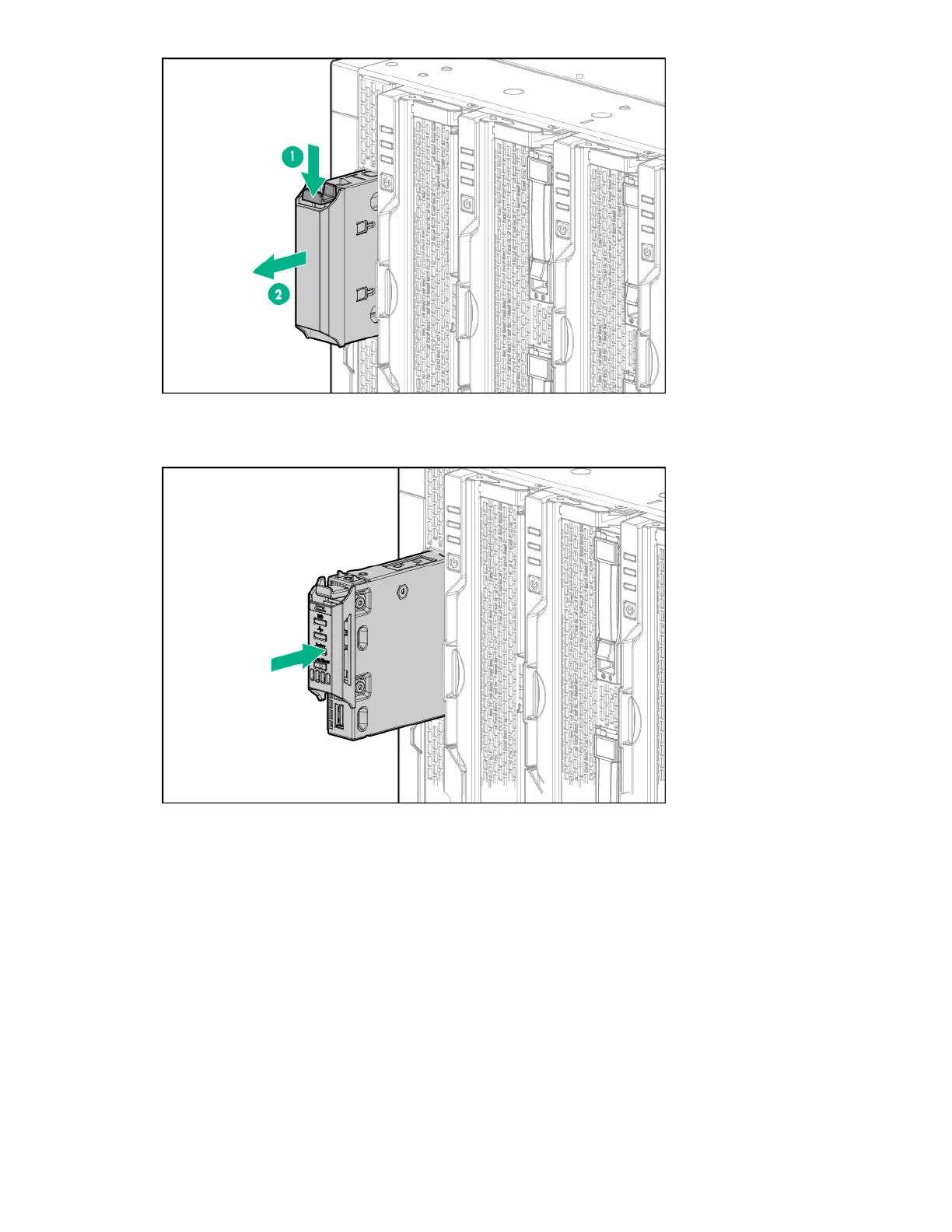

2. Install the first appliance module into appliance bay 1.
When the appliance module is fully seated, it locks into place.
Configuring the device bays
You have to add or remove the shelves depending on the type of compute modules that you are installing in the frame.
Creating a full-height module bay blank
Procedure
1. Obtain the coupler plate:
Installation 55
