HPE Synergy 12000 Frame

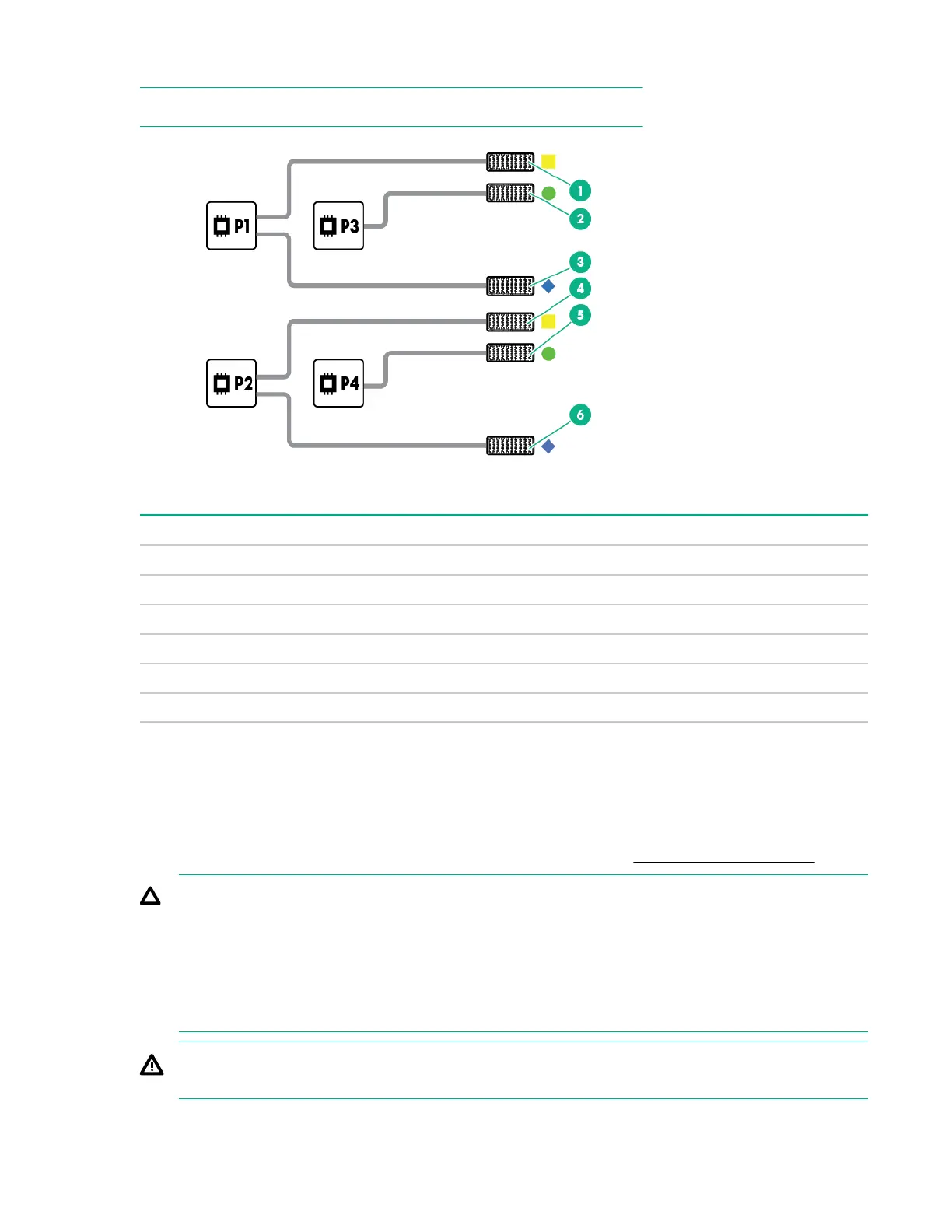

Full-height compute module mezzanine connector definitions
NOTE: The compute module hood label includes the exact mezzanine card locations.
The symbols in the image correspond with symbols on the rear of the frame.
Item
Mezz slot connector identification Supported card types Fabric Supported ICM bays
1 Mezzanine slot 1 (M1) Type C and Type D 1 ICM 1 and 4
2 Mezzanine slot 2 (M2)
1
Type C and Type D 2 ICM 2 and 5
3 Mezzanine slot 3 (M3) Type C only 3 ICM 3 and 6
4 Mezzanine slot 4 (M4) Type C and Type D 1 ICM 1 and 4
5 Mezzanine slot 5 (M5)
1
Type C and Type D 2 ICM 2 and 5
6 Mezzanine slot 6 (M6) Type C 3 ICM 3 and 6
1
When installing a mezzanine option in mezzanine slot 2, processor 3 must be installed. When installing a mezzanine option in
mezzanine slot 5, processor 4 must be installed.
Installing power supplies
HPE Synergy supports several
dierent types of HPE Synergy power supplies. For more information, see the HPE Synergy
12000 Frame Quick Specs on the Hewlett Packard Enterprise Information Library (http://www.hpe.com/info/qs).
CAUTION: Mixing
dierent types of power supplies in the same frame might:
• Limit or disable some power supply features including support for power redundancy.
• Cause the system to become unstable and might shut down.
To ensure access to all available features, all power supplies in the same frame should have the same output and
eiciency ratings. Verify that all power supplies have the same part number and label color.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the power supply and the power supply
blank to cool before touching them.
