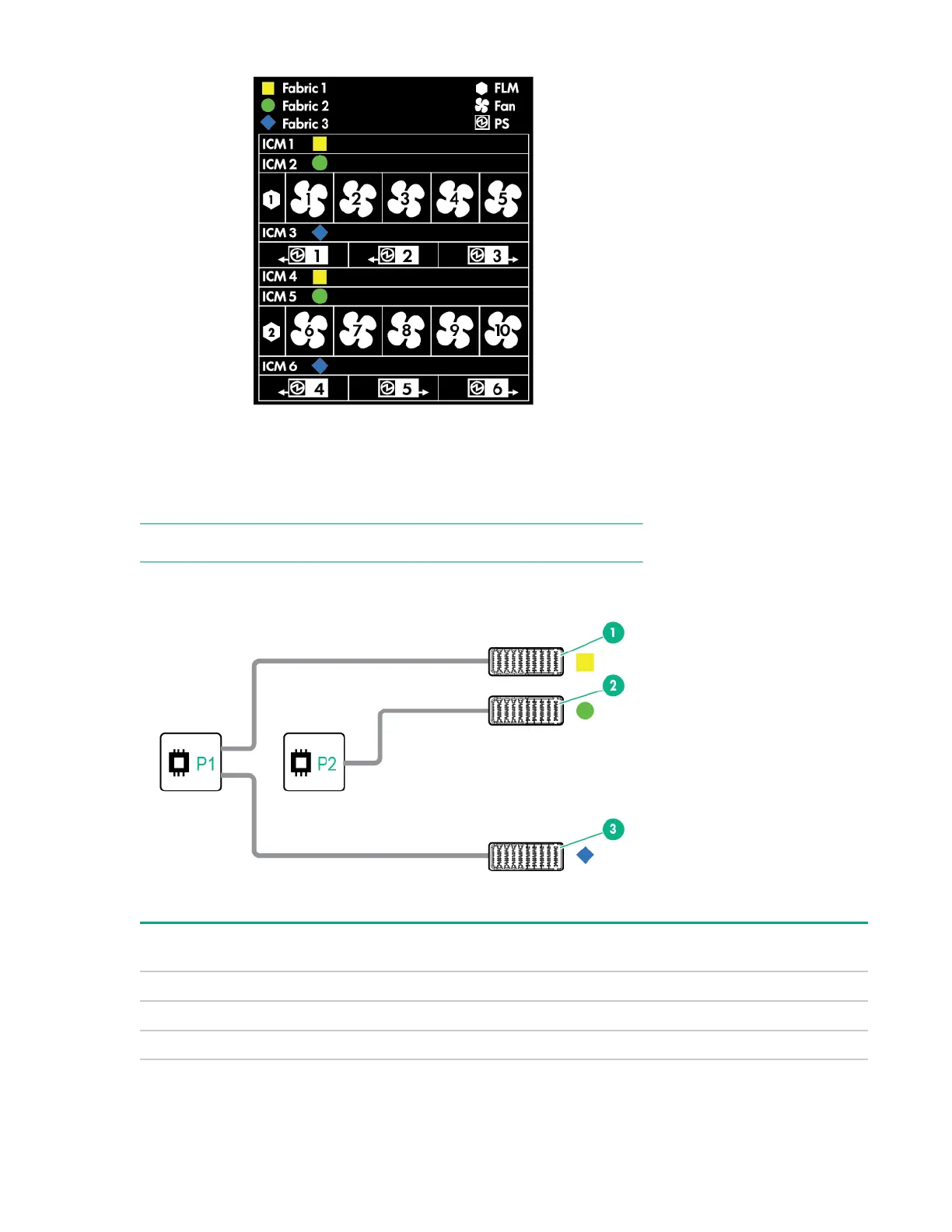

The location of a mezzanine option in the compute module dictates the location of the corresponding interconnect module
in the rear of the frame.
Half-height compute module mezzanine connector definitions
NOTE: The compute module hood label includes the exact mezzanine card locations.
Item Mezz slot connector identification Supported card types Fabric Interconnect
bay sets
1 Mezzanine slot 1 (M1) Type C and Type D 1 ICM 1 and 4
2 Mezzanine slot 2 (M2)
1
Type C and Type D 2 ICM 2 and 5
3 Mezzanine slot 3 (M3) Type C only 3 ICM 3 and 6
1
When installing a mezzanine option in mezzanine slot 2, processor 2 must be installed.
Installation 75
