HPE Synergy 12000 Frame

HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy components

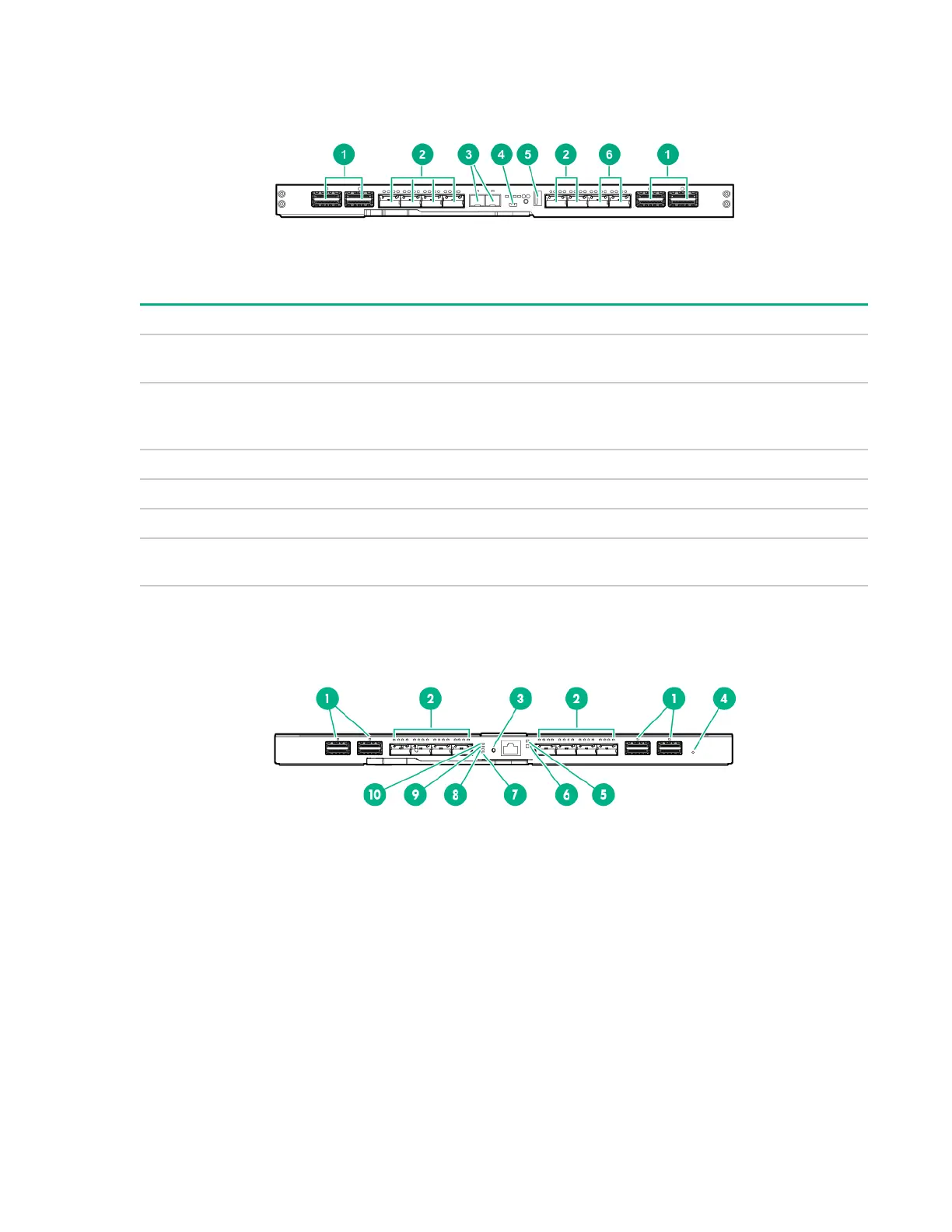

Item Component Description
1 Interconnect link ports L1–
L4
For linking Interconnect Link modules
2 QSFP28 uplink ports Q1–
Q6
10/25/40/100Gb Ethernet
or 8/16/32Gb Fibre Channel
3 SFP+ uplink ports X1-X2 For Image Streamer
4 Micro-USB For Serial Port (11520081)
5 USB USB 30 port (unused)
6 QSFP28 uplink ports Q7–
Q8
For Ethernet stacking links
HPE Virtual Connect SE 40Gb F8 Module for HPE Synergy LEDs and buttons
