Item Description Status
5 UID LED/button
Solid blue = Activated
Flashing blue = Firmware upgrade in progress
O = Deactivated
6 Health LED
Solid green = Normal
Solid amber = No power present
Flashing amber = Module degraded
Solid red = A physical alignment error exists.
2
7 Link/Activity mode LED
3
Solid green = Link/Activity mode is selected.
8 PID mode LED
3
Solid green = PID mode is selected.
9 Ethernet mode LED
3
Solid green = Ethernet mode is selected.
10 Fibre Channel (FC) mode
LED
3
Solid green = FC mode is selected.
1
See OneView (http://www.hpe.com/info/oneview/docs)
2
Remove and then reinstall the module.
3
When illuminated, QSFP+ port LEDs indicate the port operating states for each of the uplink ports in the selected mode.

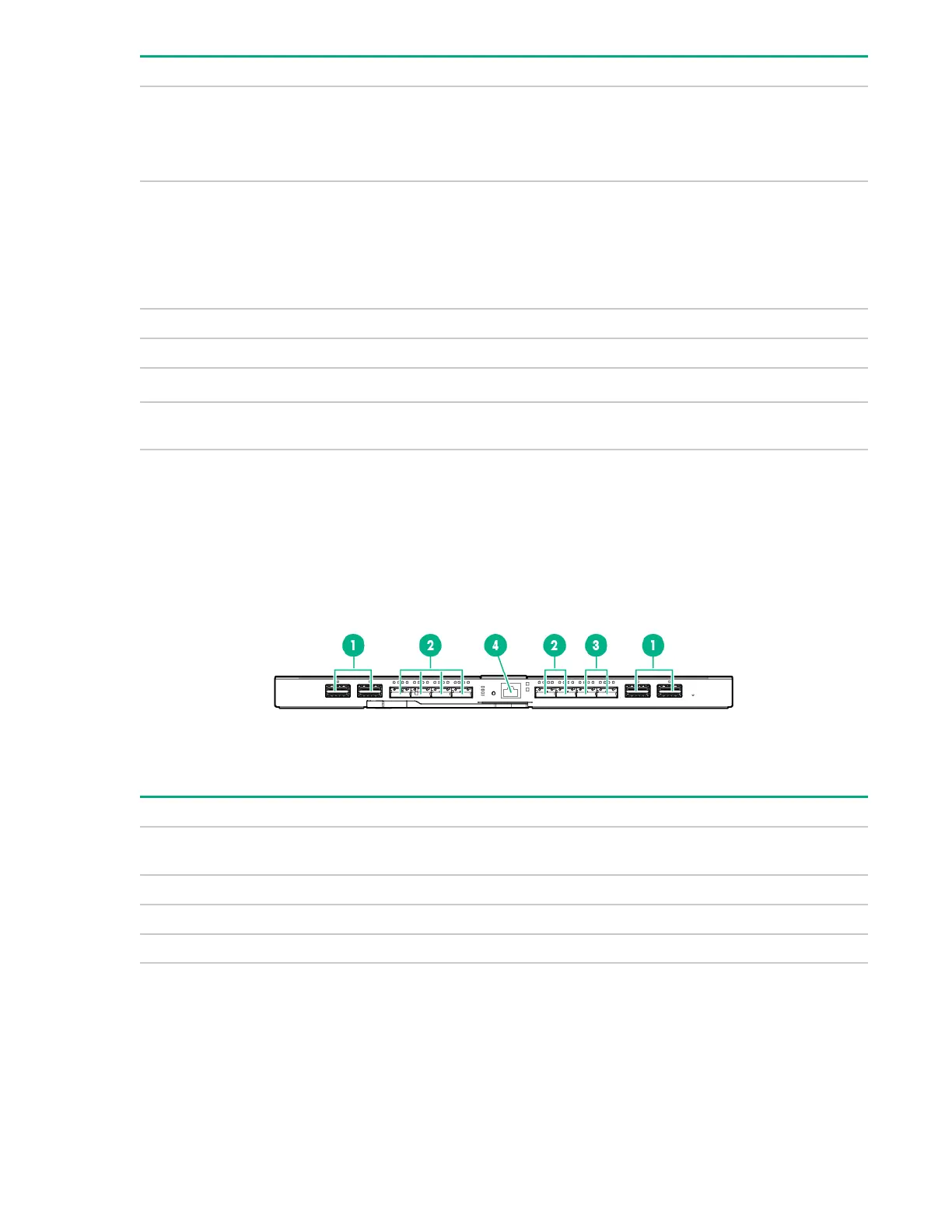

HPE Synergy 40Gb F8 Switch Module components
Item
Component Description
1 Interconnect link ports L1–
L4
For linking satellite modules
2 QSFP+ uplink ports Q1– Q6 40Gb Ethernet or 8Gb Fibre Channel
3 QSFP+ uplink ports Q7– Q8 40Gb Ethernet
4 Serial port For management
44 Component and LED identification
