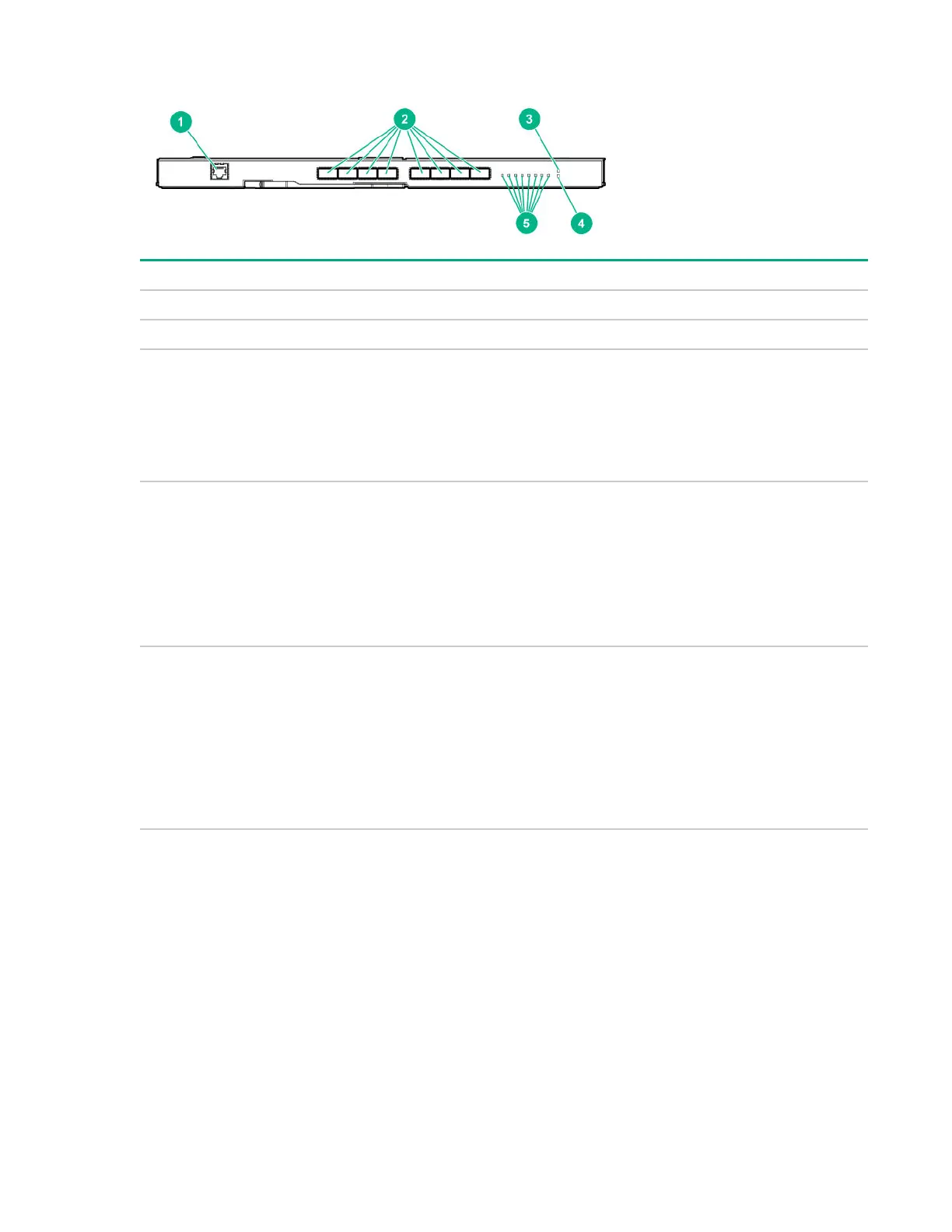

Mellanox SH2200 Switch Module for HPE Synergy LEDs and components
Item Description
1 Serial port
2 QSFP+ uplink ports (8)
3 UID LED
Solid blue = Activated
Flashing blue = Firmware upgrade in progress.
O = Deactivated
4 Health LED
O = No power present
Solid green = Normal
Flashing amber = Fault
Solid red = CANMIC boot failure
5 QSFP+ LEDs
O = Link is down
Solid green = Link is active
Flashing green = Data activity is proportional to data
transfer
Flashing orange = Link error
Component and LED identification 45
