Item Description
1 Fans (10)
2 Interconnect modules (up to 6)
3 Power supplies (6)
4 Frame link modules (2)

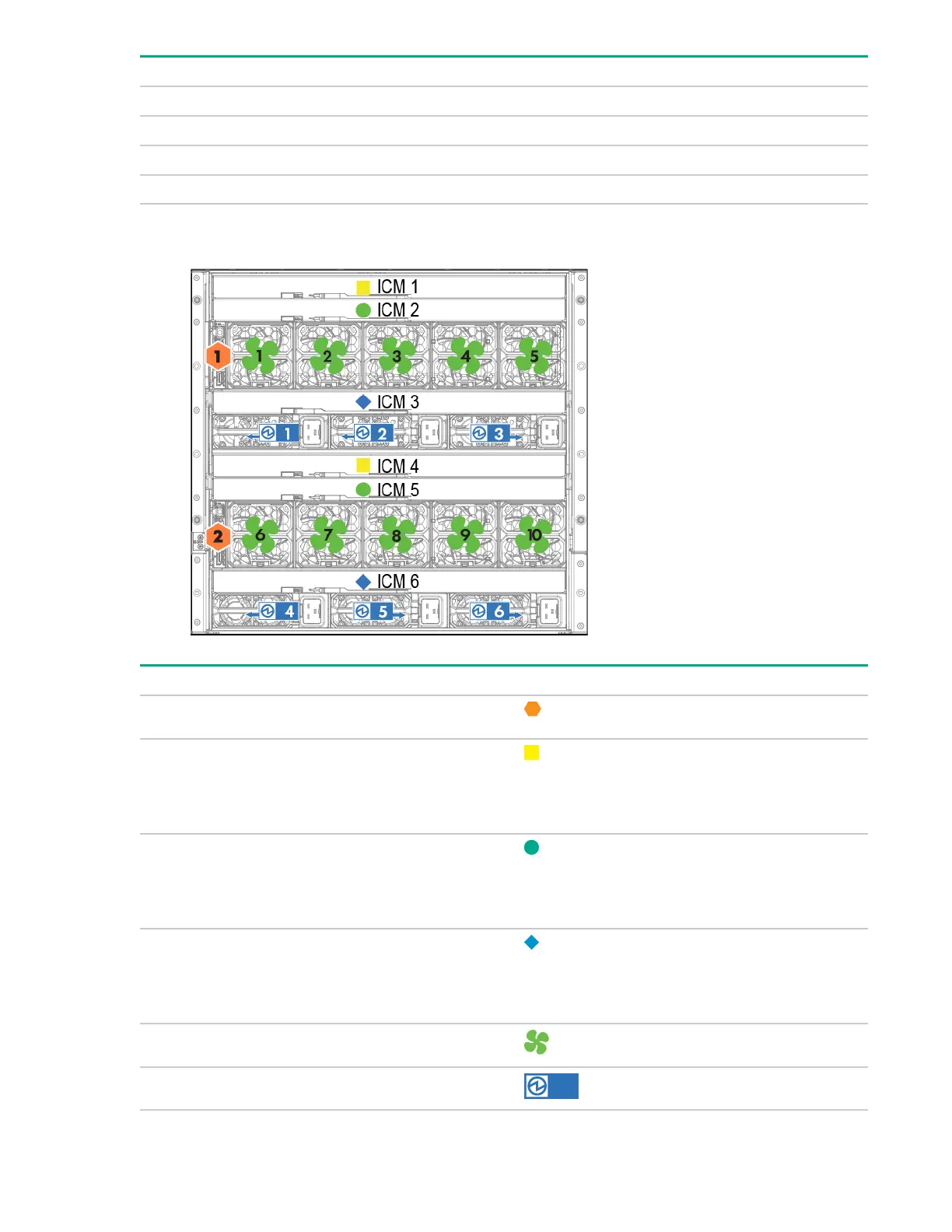

Rear component bay numbering
Components Bays Labels
Frame link modules
1 and 2
Interconnect modules
These interconnect modules are redundant
pairs on fabric 1.
1 and 4
Interconnect modules
These interconnect modules are redundant
pairs on fabric 2.
2 and 5
Interconnect modules
These interconnect modules are redundant
pairs on fabric 3.
3 and 6
Fans
1 through 10
Power supplies
1 through 6
Component and LED identification 25
