• Solid indicates that the LED remains in the on state.
• Flashing indicates that the LED is on for 2 seconds and o for 1 second.
• Fast-flashing indicates that the LED is on for 300 ms and o for 300 ms.
State Definition NVDIMM-N Function LED
0 The restore operation is in progress. Flashing
1 The restore operation is successful. Solid or On
2 Erase is in progress. Flashing
3 The erase operation is successful. Solid or On
4 The NVDIMM-N is armed, and the NVDIMM-N is in normal
operation.
Solid or On
5 The save operation is in progress. Flashing
6 The NVDIMM-N finished saving and battery is still turned on
(12 V still powered).
Solid or On
7 The NVDIMM-N has an internal error or a firmware update is in
progress. For more information about an NVDIMM-N internal
error, see the IML.
Fast-flashing
Storage module LEDs

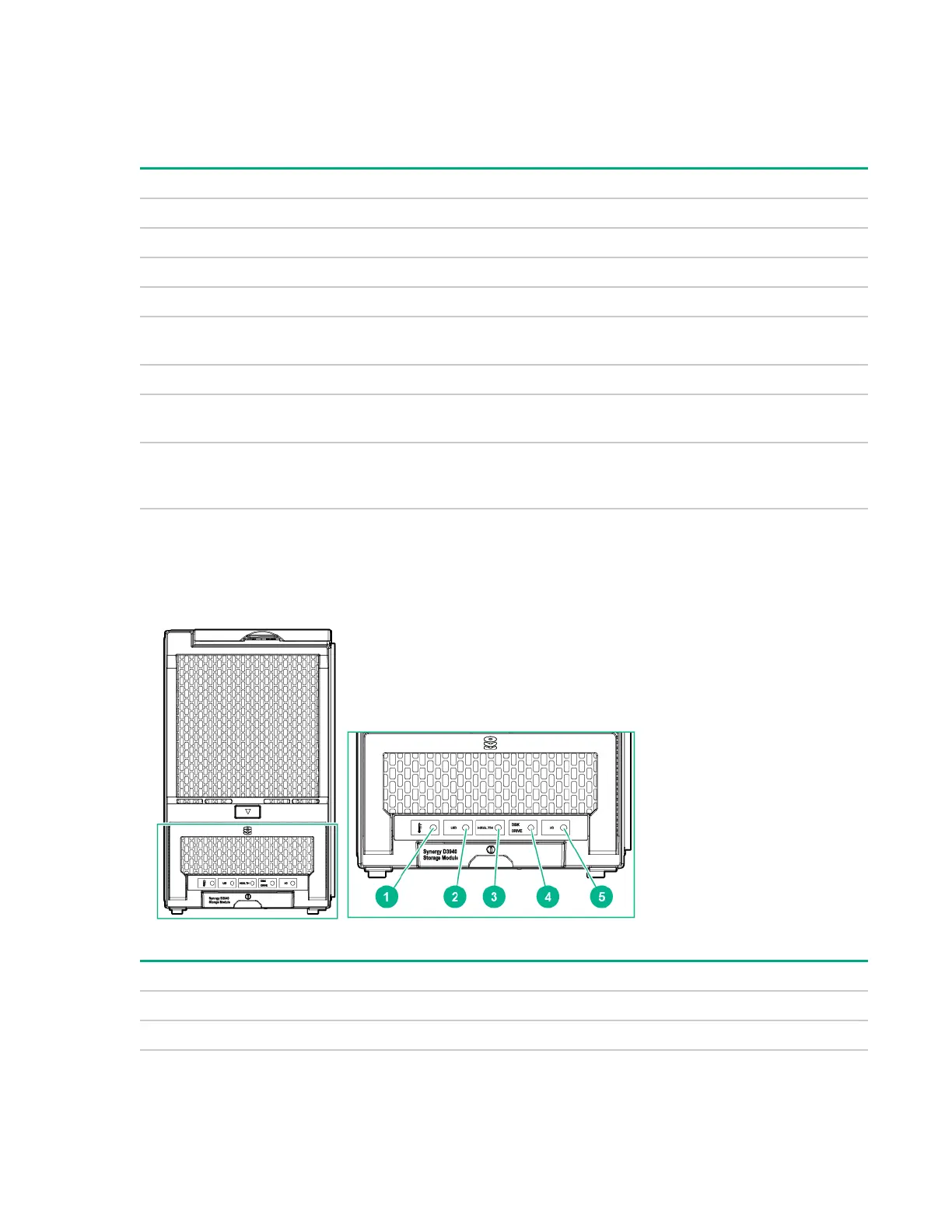

The front panel and LED layout shown in the following illustration is an example. Depending on your specific model, the
LEDs might be dierent.
Item
LED Status Definition
1 Drawer status
1
Solid green Drive drawer is closed
Flashing green Drive drawer is open
Table Continued
Component and LED identification 23
