NOTE: The arrow direction on each of the power supply icons indicates the recommended power routing to either A-side
or B-side. For more information about A-side and B-side power distribution, see the HPE Synergy Cabling Guide in the
Hewlett Packard Enterprise Information Library (http://www.hpe.com/info/synergy-cabling-guide).

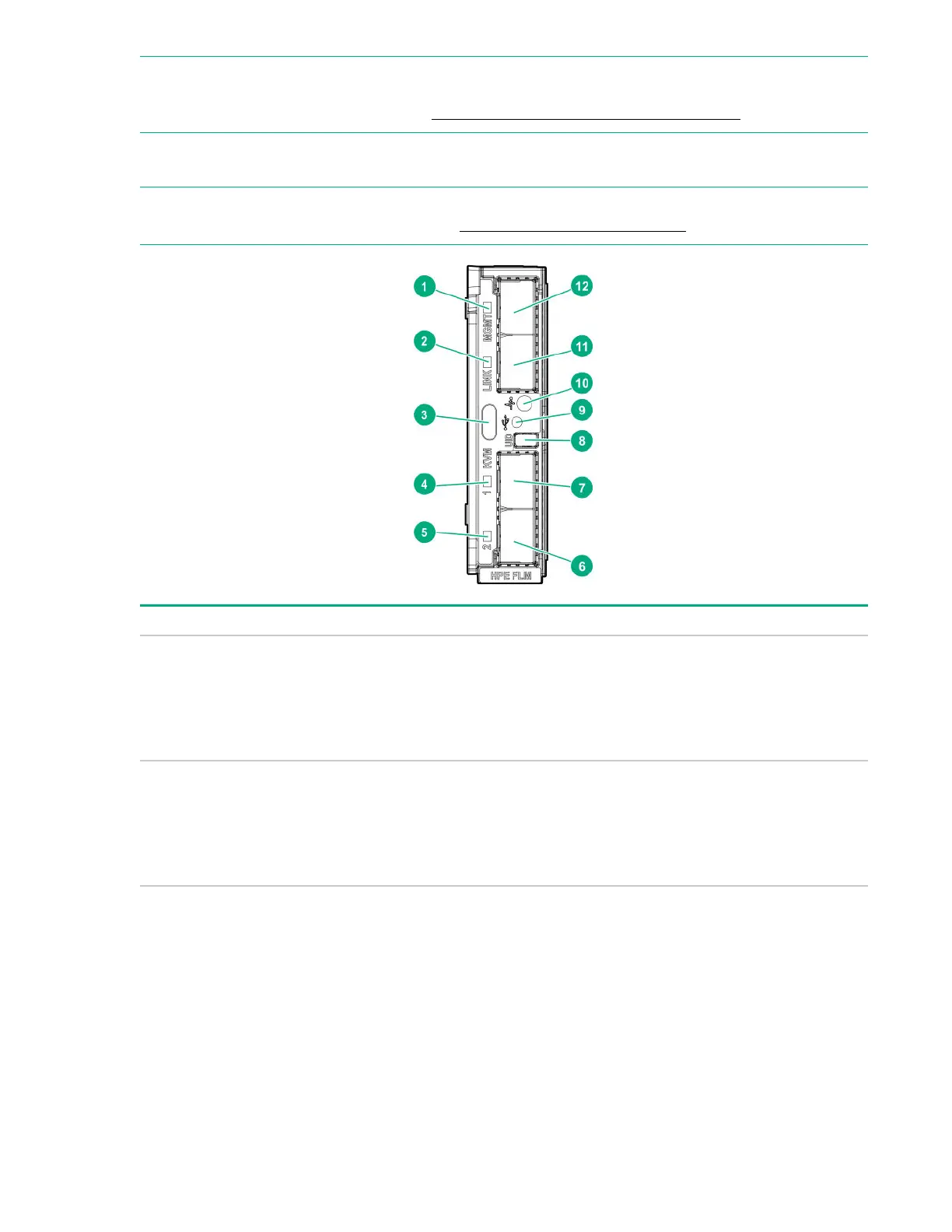

HPE Synergy 4-Port Frame Link Module components and LEDs
NOTE: HPE Synergy 4-Port Frame Link Modules require supported SFP+ DAC cables or SFP+ transceivers for cabling. For
more information, see the product QuickSpecs on the Hewlett Packard Enterprise website.
Item Description Function
1 MGMT port activity LED Reports MGMT port activity:
• Flashing green = Activity on the MGMT port
• O = No activity on the MGMT port
2 LINK port activity LED Reports LINK port activity:
• Flashing green = Activity on the LINK port
• O = No activity on the LINK port
