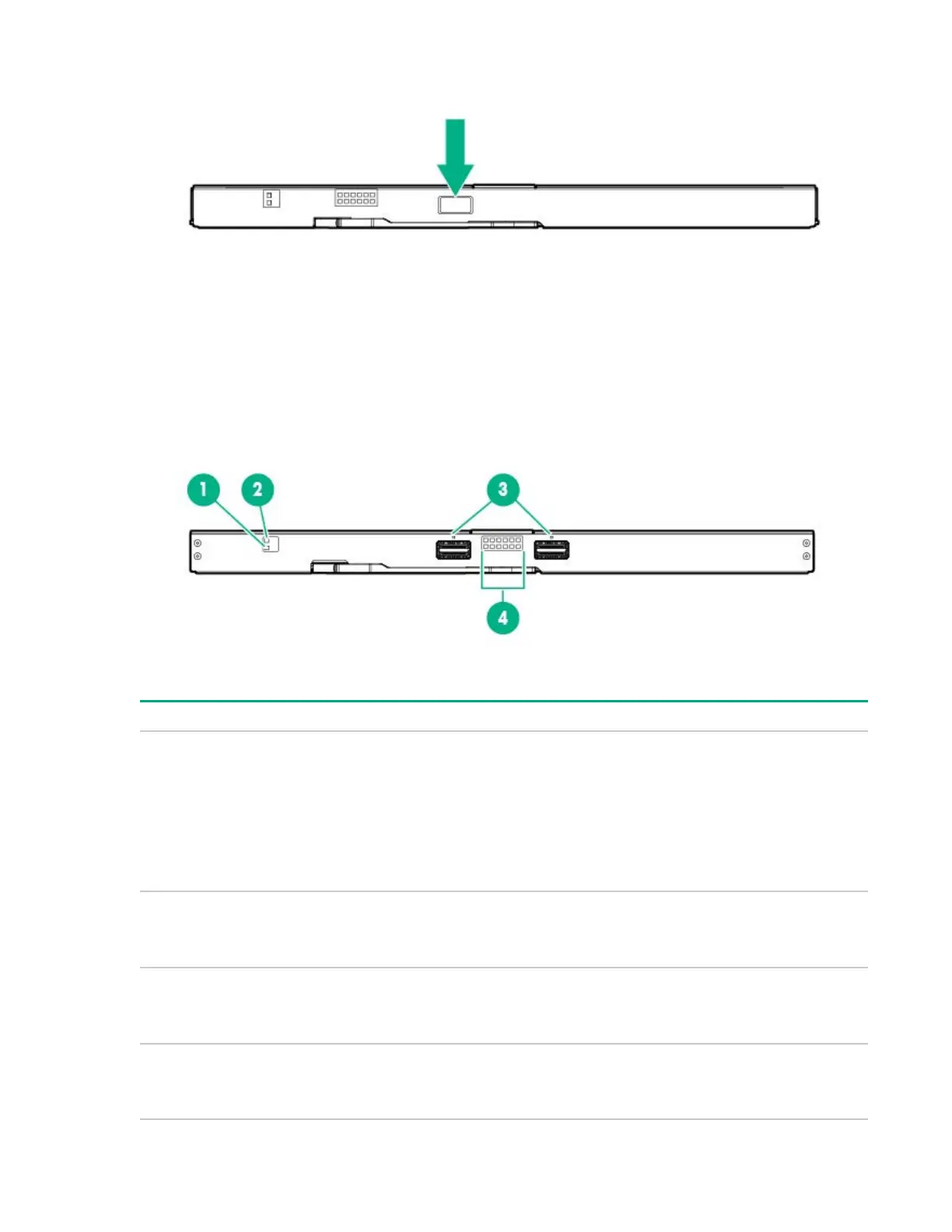

HPE Synergy 20Gb Interconnect Link Module LEDs and buttons
Item Description Status
1 Health LED
Solid green = Normal
Solid amber = No power present
Flashing amber = Module degraded
Solid red = Installation alignment error.
*
2 UID button/LED
Solid blue = Activated by OneView
O = Deactivated
3
Interconnect link port LEDs Solid green = Linked
Solid red = Error condition
4 Server link LEDs
Solid green = 10Gb link
Solid amber = 20Gb link
Component and LED identification 33
