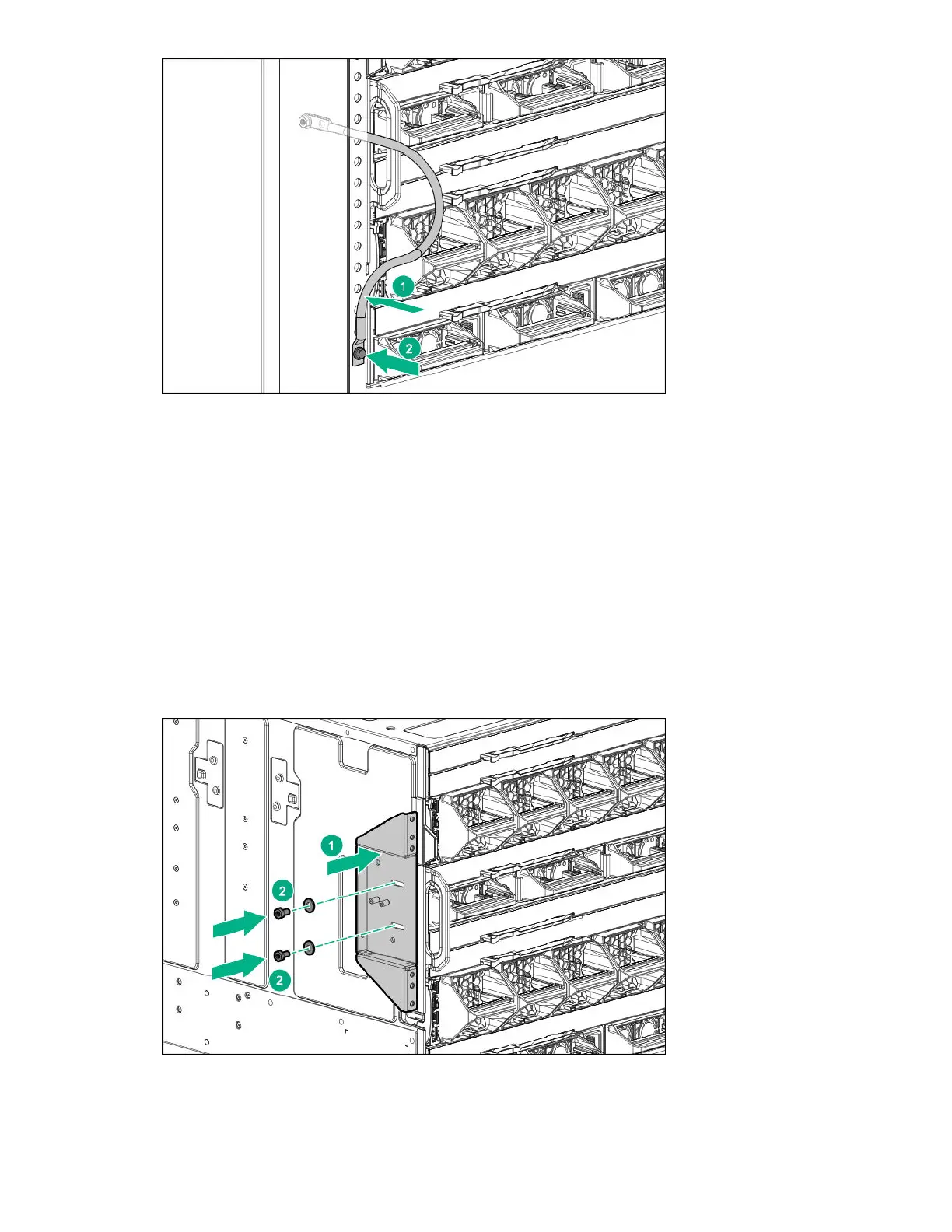

Installing the DC power grounding kit (with bracket)
For clarity, the rack is not shown in the images of this procedure.
Prerequisites
The following tools are required to complete this procedure:
• T-15 Torx screwdriver
• 8 mm socket wrench
Procedure
1.
Using the 2 hex thread-forming screws, install the bracket on the frame.
Tighten the screws to 15lb-in of torque.
2. Use two nuts to connect the cable to the bracket.
Installation 83
