Chapter 6 Function Introduction Shenzhen Hpmont Technology Co., Ltd
―100― HD20 Series Inverters User Manual
No. Name Description Range
【
factory setting
】
F19.23 Enabled mode of terminal run command 0,1
【
0
】
0: Rise edge enabled mode.
• For many applications, the inverter is not allowed to auto-run to avoid device damage and ensure
safety due to no person interference at power on. In these applications, when the inverter’s power
is initialized and ready to run, it can not start to run until the terminal run command is given.
1: Level enabled mode.
• For certain applications, when ensured personal safety and device safety it need the inverter
immediately run at power on in order to provide automation and efficiency. In these application, the
inverter will immediately run as soon as the terminal run command is given whether before or after
power on.
Braking unit (F19.24
－
F19.25)
No. Name Description Range
【
factory setting
】
F19.24 Action voltage of braking unit 380
－
750V
【
dependent on inverter
model
】
For 380V inverter, this braking voltage range is 630－750V.
For 220V inverter, this braking voltage range is 380－450V.
Note: Only in inverter running status the braking is enabled.
F19.25 Reserved
Fixed length arrive and stop function (F19.26
－
F19.34)

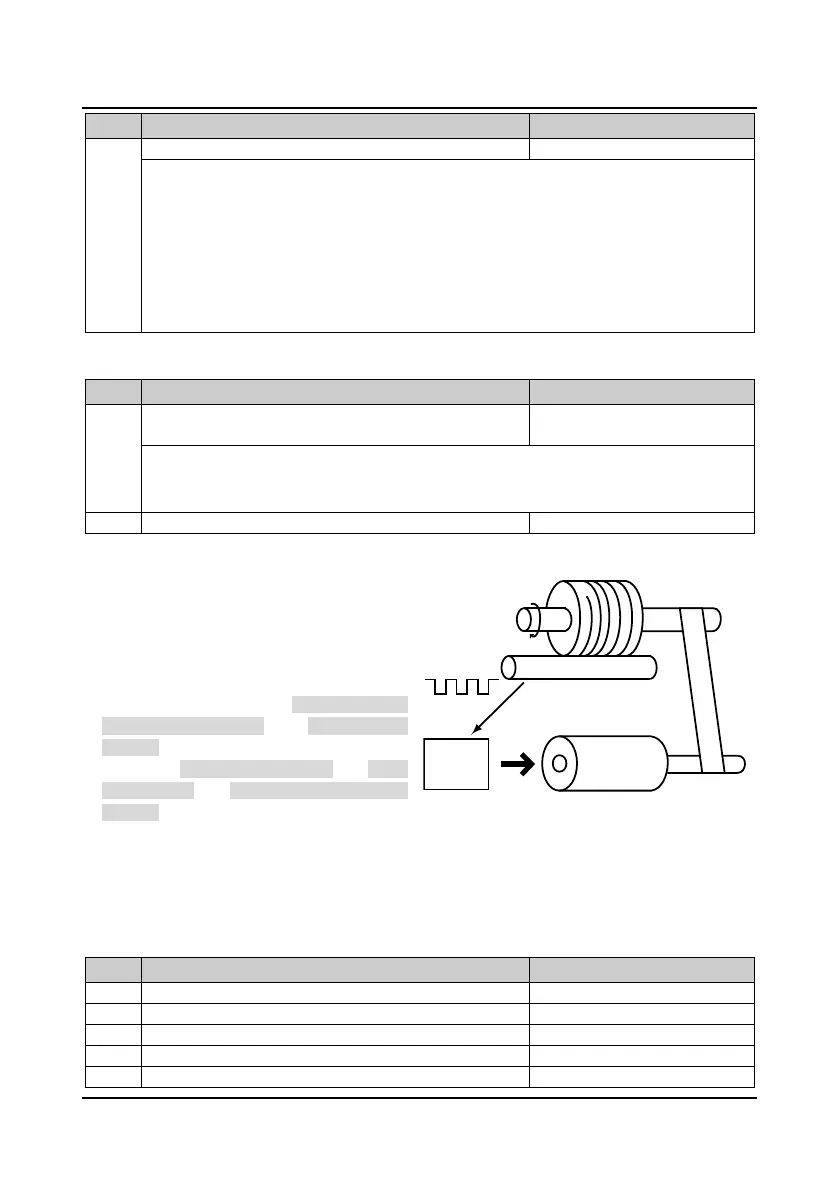

This group is used to realize fixed
length stop
function. As the right figure:
The inverter inputs the count pulse from
the
terminal (multi-
function terminal is set as No.
52 function) and
gets the count length
according to the measuring number of
pulses
per revolution (F19.31) and
shaft diameter
(F19.30). Then
modify the count length and
obtain the actual length (F19.27) via
length
ratio (F19.28) and
length checking coefficient
(F19.29) too.
The formula is as follows:
F19.27 = Counted length × F19.28 ÷ F19.29 ÷ 100
Counted length = Counted pulse number ÷ F19.31 × F19.30 × π
If F19.27 ≥ F19.26, the inverter will automatically send the stop command. Before running again
, it
need clear F19.27 or changed to F19.27 < F19.26. Otherwise the inverter can’t be started.
No. Name Description Range
【
factory setting
】
F19.26 Preset length 0
－
65535
【
0m
】
F19.27
Actual length
0－65535【0m】
F19.28 Length ratio 0.001
－
30.000
【
1.000
】
F19.29
Length checking coefficient
0.001－1.000【1.000】
F19.30 Measuring shaft diameter 1.00
－
100.00
【
10.00cm
】
Inverter
Measuring speed shaft
Motor
