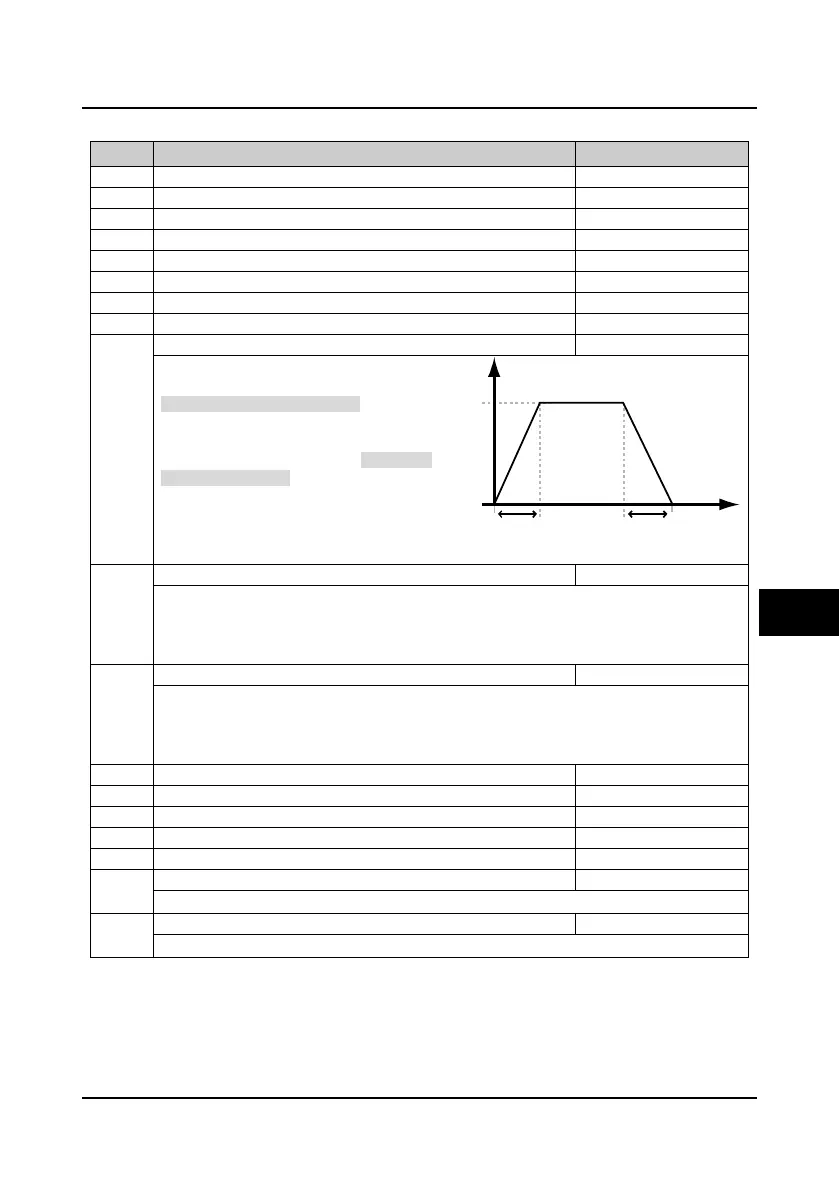

6.2.4 Group F03 Acceleration/Deceleration Parameters
No. Name Description Range
factory setting
F03.00 Reserved
F03.02 Deceleration time 1 0.01
600.00
10.00s
F03.04 Deceleration time 2 0.01
600.00
10.00s
F03.06 Deceleration time 3 0.01
600.00
10.00s
F03.08 Deceleration time 4 0.01
600.00
10.00s
Acceleration time is the time that the inverter’s
output frequency accelerates from 0 Hz to
F00.06 (the max-output frequency) in the linear
form. As the right figure.
Deceleration time is the time that the inverter’s
output frequency decelerates from F00.06 (the
max-output frequency) to 0 Hz in the linear
form. As the right figure.
• It can only choose the acceleration time or
the deceleration time.
F03.09 Switching frequency of acceleration time 2 and time 1 0.00
upper limit
0.00Hz
When the running frequency is smaller than the F03.09 setting, it will accelerate according to
acceleration time 2; Otherwise it will accelerate according to acceleration time 1.
• When use terminals to select acceleration/deceleration time (set multi-function terminal as
number 26 and 27 function), F03.09 is disabled.
F03.10 Switching frequency of deceleration time 2 and time 1 0.00
upper limit
0.00Hz
When the running frequency is smaller than the F03.10 setting, it will decelerate according to
deceleration time 2; Otherwise it will decelerate according to deceleration time 1.
• When use terminals to select acceleration/deceleration time (set multi-function terminal as
number 26 and 27 function), F03.10 is disabled.
F03.11 Reserved
F03.13 Reserved
F03.15 Acceleration time of jog operation 0.01
600.00
6.00s
Deceleration time of jog operation
F03.15 and F03.16 define the acceleration/deceleration time of jog operation.
Deceleration time of emergency stop
It defines the deceleration time of emergency stop.
