Shenzhen Hpmont Technology Co., Ltd Chapter 3 Mechanical Installation
HD20 Series Inverters User Manual ―13―
3.4 Dimensions and Mounting Size

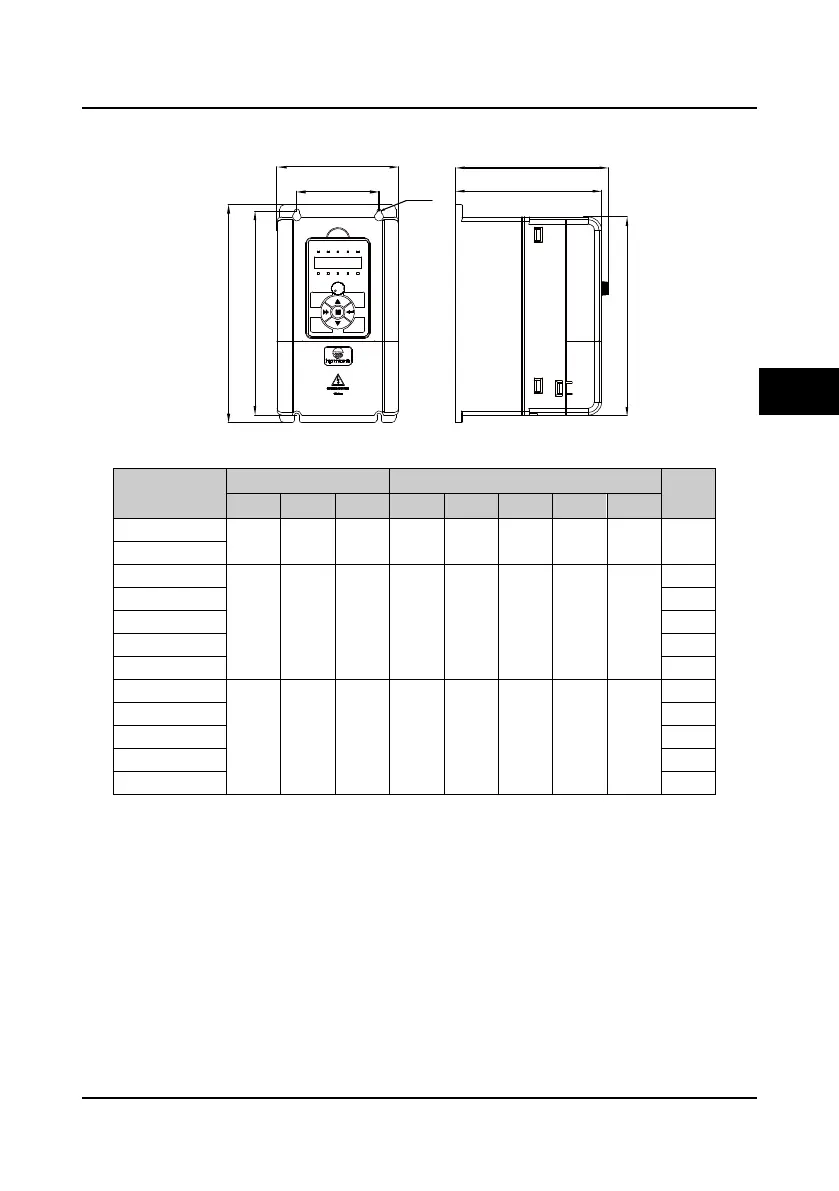

Figure 3-3 Dimensions of HD20 inverter
Table 3-1 HD20 dimensions
Model
Dimension (mm) Mounting size (mm)
Gross
weight
W H D W1 H1 H2 D1 d
HD20-2S0P2G
100 183 140 70 171 160 132 5 1.3
HD20-2S0P4G
HD20-2D0P7G
115 221 170 87 206 200 162 5
2.1
HD20-2D1P5G 2.1
HD20-4T0P4G 2.0
HD20-4T0P7G 2.0
HD20-4T1P5G 2.1
HD20-2D2P2G
135 241 170 91 226 220 162 5
2.4
HD20-4T2P2G 2.3
HD20-4T3P0G 2.4
HD20-4T4P0G 2.4
HD20-4T5P5G 2.4
The mm and the Kg are respectively units of the size and the gross weight in the table.
LOCK
FWD REV AL M
LO/RE
HZ A V RPM
%
4-Ød
H2
W1
W
H
H1
D1
D
SHF
PRG
STOP
RUN
JOG
ENT
3
