Chapter 9 Options
9.1 Panel Installation Assembly
The panel installation assembly includes mounting base and extension cable.
9.1.1 Mounting Base
The panel mounting base is an accessory. If needed, please order goods.
Model: HD-KMB. The mounting base and its size are shown as and the unit is mm.

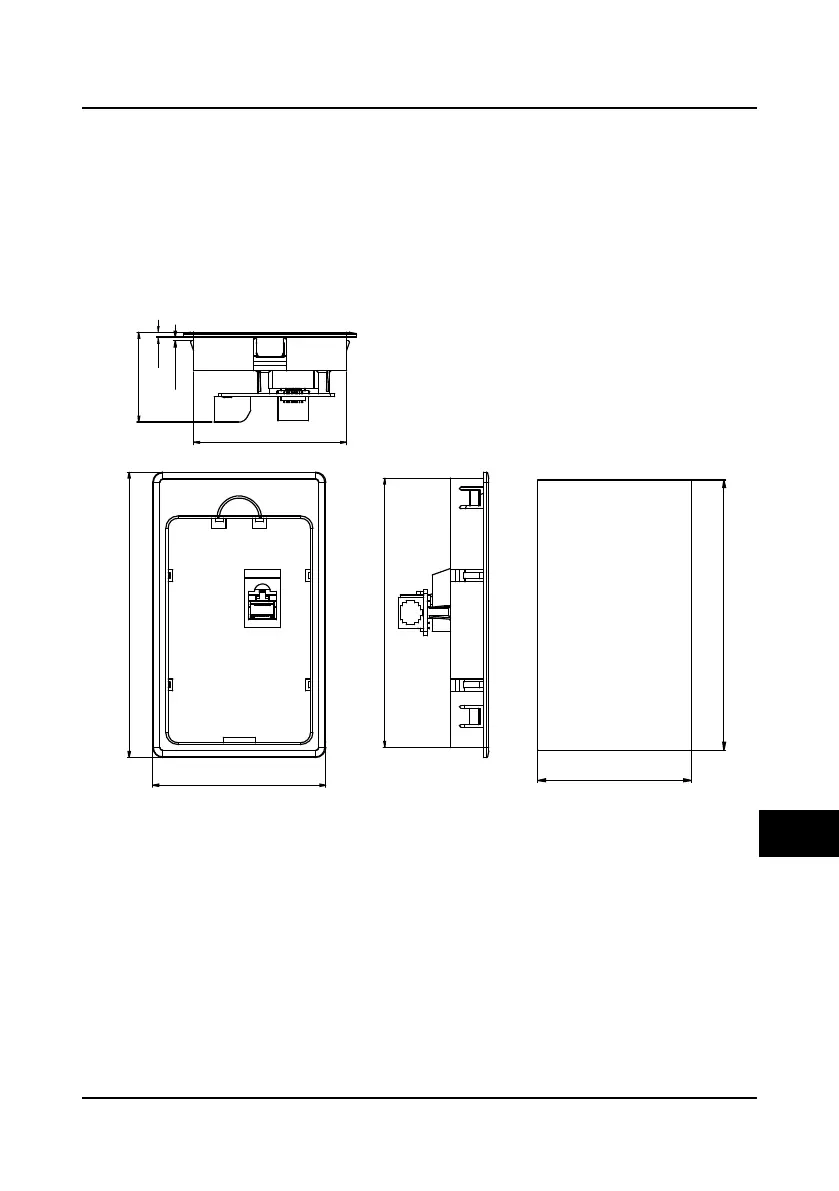

Figure 9-1 Mounting base and its size
9.1.2 Extension Cable
The panel extension cable is an accessory. If needed, please order goods.
The models are as follows:
• 1m extension cable to panel: HD-CAB-1M
• 2m extension cable to panel: HD-CAB-2M
• 3m extension cable to panel: HD-CAB-3M
• 6m extension cable to panel: HD-CAB-6M
134
±0.2
44.8
86
142
76
±0.2
2.5
1.8
±0.1
76.5
+0.1
0
134.5
+0.1
0
Mounting base
Mounting size
9
