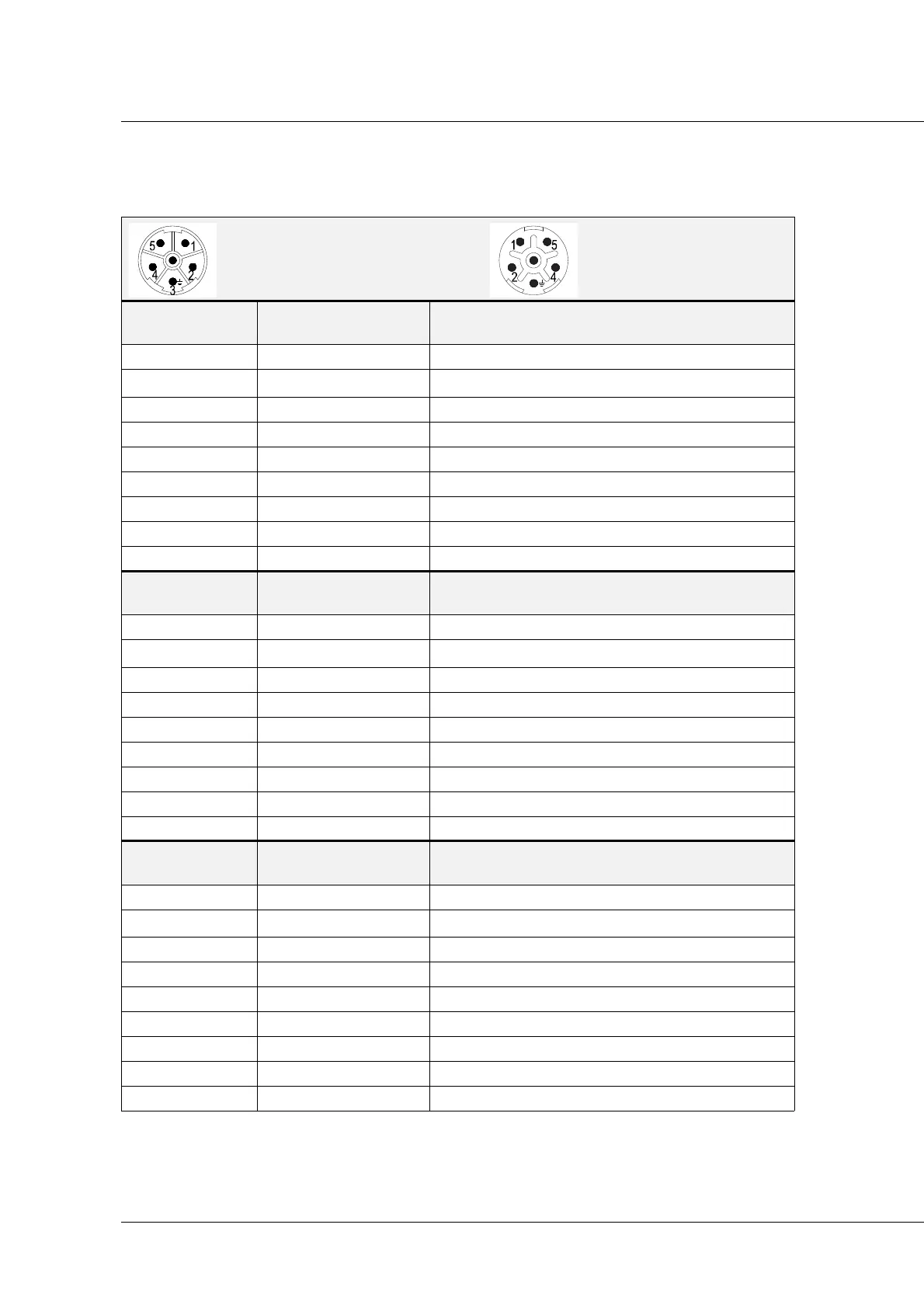

Type approved cables for shared DC Bus extensions
user side view
M23 connector
6-pole male
user side view
M23 connector
6-pole female
PIN / connector Conductor/Signal
4G1.5 + (2X1)H2]H2
- Helukabel - 707481
1 DC Bus + conductor (2-core) - BLACK - 1mm
2
2 Phase 230 V
AC
conductor 1 - BLACK - 1.5mm
2
3 Protective Earth (PE) conductor - YELLOW-GREEN - 1.5mm
2
4 Neutral 230 V
AC
conductor 2 - BLACK - 1.5mm
2
5 DC Bus - conductor (2-core) - WHITE - 1mm
2
6 Not used -
*
*
Connected to the connector casing.
DC Bus shielding 2-core braid 2x1mm
2
* Cable shield cable outer braid
**
**
Not connected - cut at base.
- conductor 3 - BLACK - 1.5mm
2
PIN / connector Conductor/Signal
[4G1.5+(2X1.0)H2]H2
- Unika Unidrall 5000 - 3C047
1 DC Bus + conductor (2-core) - BLACK - 1mm
2
2 Phase 230 V
AC
conductor 1 - BLACK - 1.5mm
2
3 Protective Earth (PE) conductor - YELLOW-GREEN - 1.5mm
2
4 Neutral 230 V
AC
conductor 2 - BLACK - 1.5mm
2
5 DC Bus - conductor (2-core) - WHITE - 1mm
2
6 Not used -
* DC Bus shielding 2-core braid 2x1mm
2
* Cable shield cable outer braid
** - conductor 3 - BLACK - 1.5mm
2
PIN / connector Conductor/Signal
[4G1.5+(2X1.0)H2]H2
- Flamar - 86AVSQ16XX-XXX
1 DC Bus + conductor (2-core) - BLACK - 1mm
2
2 Phase 230 V
AC
conductor 1 - BLACK - 1.5mm
2
3 Protective Earth (PE) conductor - YELLOW-GREEN - 1.5mm
2
4 Neutral 230 V
AC
conductor 2 - BLACK - 1.5mm
2
5 DC Bus - conductor (2-core) - WHITE - 1mm
2
6 Not used -
* DC Bus shielding 2-core braid 2x1mm
2
* Cable shield cable outer braid
** - conductor 3 - BLACK - 1.5mm
2
