C Spare parts
HSD S.p.A. © -
h01
11k00a.f
m091
115
65
C Spare
parts

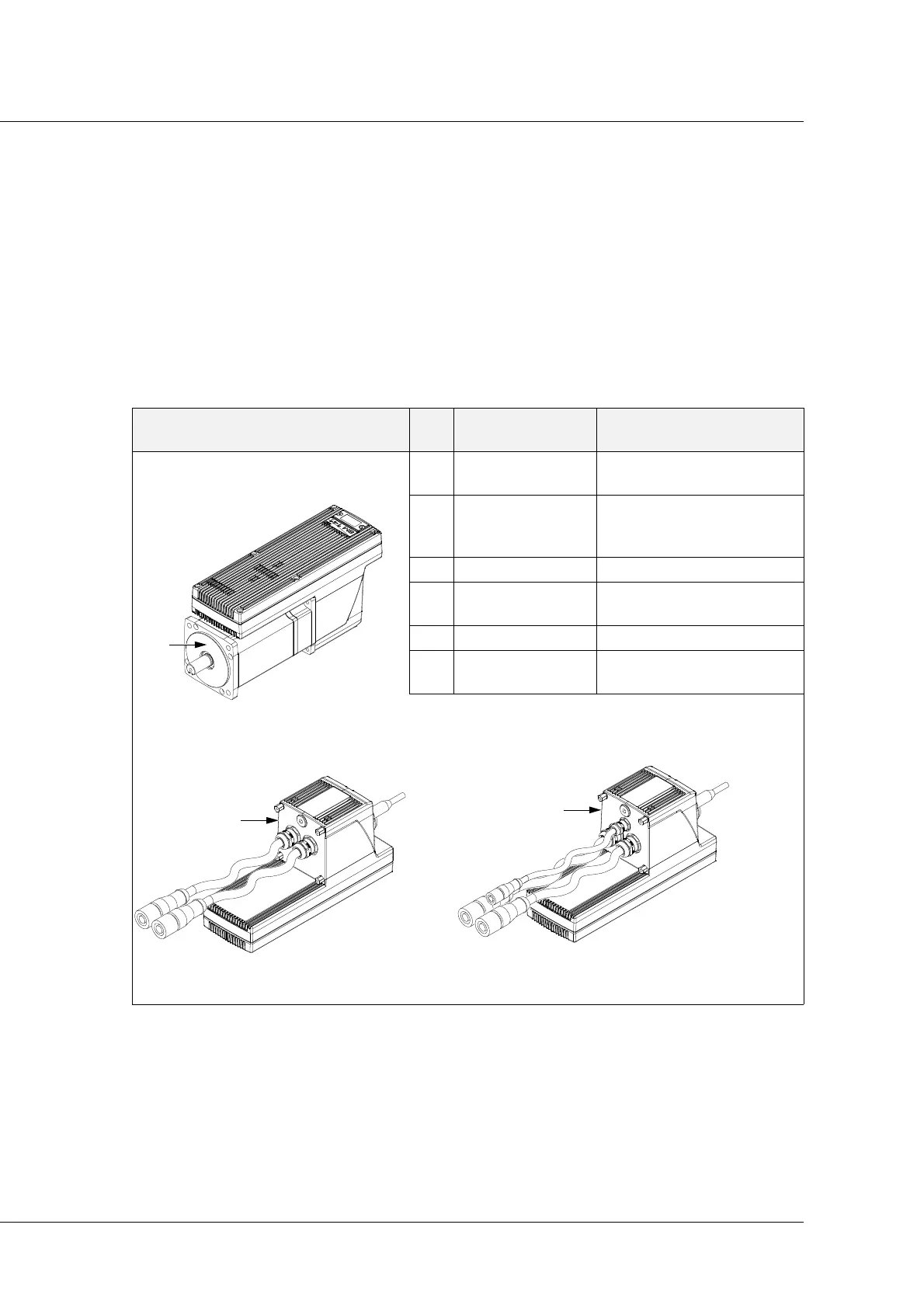

The following is an illustration
and description of its parts that can be replaced.
The manufacturer may update
its product
s range without advan
ce notice.
Part
s
Ref.
Manufacturer
code
Description
1
H0
102D0141D0
Motor SM141D 450W and
shared DC-BUS
1
H0
102D0141D1
Motor SM141D 450W with
parkin
g brake and shared
DC-BUS
1
H0102D0141D2
Motor SM141D 350W
1
H0
102D0141D3
Motor SM141D 350W with
parking br
ake
2
H0102DPH400B1
Drive CPH400B
3
H0102DPH400B3
Drive CPH400B with
parking brake pilo
ting
1
2
3
64
66
Table of Contents
Default Chapter
5
Table of Contents
5
1 Preliminary Information
11
Introduction
11
Scope of the Manual
11
Symbols Used in the Manual
12
Documents Supplied with the Product
12
EC Declaration of Conformity
13
Orders and Requests for Information
14
Identification of the Product and Manufacturer
14
Warranty
15
2 Safety Information
17
Safety Regulations
17
Safety Warnings for Maintenance
17
Risks Associated with the Use of the Product
18
Prohibitions and Risks Associated with Improper Handling And/Or Use
18
Residual Risks
18
Signs Fixed to the Product
19
Description
21
3 Main Parts
23
SM 141 D General Description and Applications
23
SM 141 D General Overview and Main Parts
24
CPH 400 B General Description and Applications
25
CPH 400 B General Overview and Main Parts
25
Shared DC Bus
26
Identification of the Manufacturer and of the Product
27
Safety and Information Signs
28
4 Transport, Packing, Unpacking, Storage
29
Warnings
29
Overall Dimensions and Weight of the Packed Product
29
Transport and Packing
30
Unpacking
30
Storage
30
5 Installation and Commissioning
31
Preliminary Installation Checks
31
Preparing the Factory Services
31
Work Environmental Requisites
31
Mechanical Connections
32
SM 141 D Fixing
32
SM 141 D Overall Dimensions
32
CPH 400 B Fixing
33
CPH 400 B Overall Dimensions
33
Electrical Connections SM 141 D/CPH 400 B
34
Shared DC Bus Power Supply Configurations
34
General Requirements for the Use of Electric Connectors
37
Electric Connectors
38
Power Cable with Shared DC Bus
42
Cable Types
42
Polarity Test on Shared DC Bus Network Wiring with SM141D Motors and CPH400B Drives
43
Fieldbus Interface
45
E-Netx
45
Regenerative Effect on Bus DC
45
Dipswitch Configuration
46
E-Netx Configuration
47
Logical Address and E-Netx Bus Line Termination
47
Diagnostics
48
5.10 General Post-Installation Checks
49
5.11 Running-In
49
5.12 Environmental Conditions
49
6 Maintenance
51
General Cleaning
53
A Technical Characteristics
57
General Data
57
Torque Curve SM 141 D 350W
61
Torque Curve SM 141 D 450W
61
B Disposal
63
C Spare Parts
65
D Assistance Service
67
Customer Service
67
Analytical Index
69
