HSD SM 141 D User Manual

5 Installation and commissioning
42
HSD S.p.A. © - h0104k02a.fm091115
5.5.1 Power cable with shared DC Bus
The power cable connected to the shared DC Bus for feeding a single motor must have the following
characteristics:
 4x1.5 mm² + (2x1 mm²), obviously, larger sections are also allowed;
 working voltage of 600/1000 V on all conductors;
 80 °C;
 all screening in tinned copper.

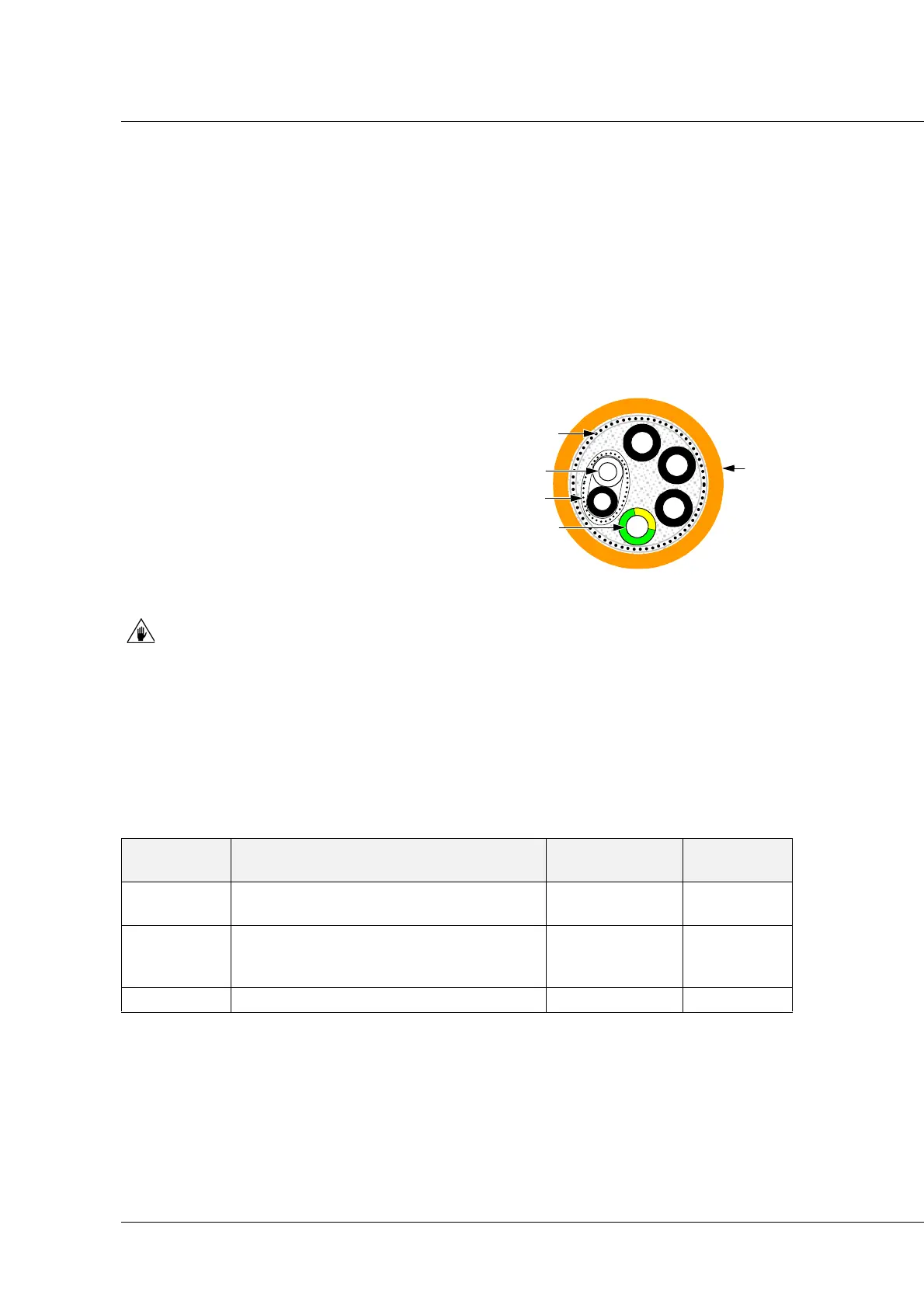

A - outer sheath
B - full shielding
C - shielded 2-core cable
D - 2-core cable shielding
E - conductor composition 4x1.5 mm²
Always use cables with the required characteristics. For other cables, contact the
HSD Assistance Service.
In the case of power supply cables feeding two or more motors at the same time (for connections other than
star type) contact the assistance service.
Cable types
Some of the cables tested and recommended by the manufacturer are reported below.
BRAND TYPE
MANUFACTURE
R'S CODE
HSD CODE
UNIKA
UNIDRALL 5000 4G1.5+(2X1)
11.0 / 138 / 242.8
3C047 2131A0312
FLAMAR
Cable Braid Shield Sect. 1x(2x1.00mm²
Braid Shield)+4x1.50mm²
UL Style 21223/CSA O.D. 11.00 mm
86AVSQ16xx-xxx -
HELUKABEL 4G1.5+ 2x1.5C-C / 11.6 / 136 / 7.5xD 707481 -
B
D
C
E
A
