Installation Manual -Antenna & Feeder System Installation
BTS3802C & RRU Chapter 1 Installation Preparations
1-6

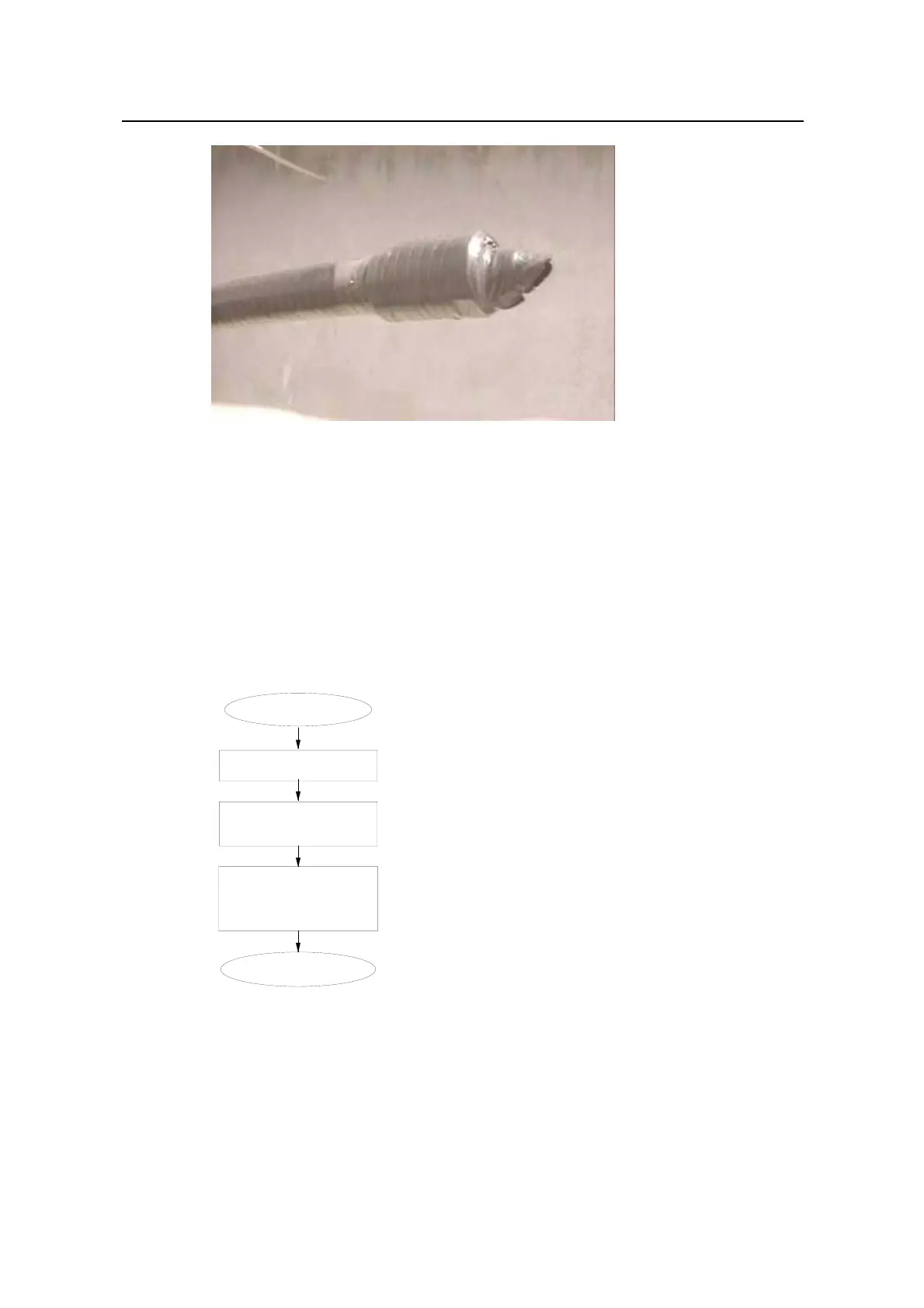

Figure 1-2 Simple waterproof treatment for the connecting point of the feeder
1.7 Assembling Antenna
To reduce the operations on the tower, it is necessary to assemble the antenna on the
ground. For assembling method, please refer to the instruction in the antenna packing
box. After assembling, please keep the instruction for later reference.
The installation procedure is shown in Figure 1-3.
Start
Install the antenna fixing clip
Apply waterproof treatment
to the connectors
Connect the antenna
with the jumper
End
Figure 1-3 Assembling flow of antenna
I. Assembling omnidirectional antenna
The accessories of omnidirectional antenna are antenna fixing clip and jumper. The
fixing clips are shown in Figure 1-4 and Figure 1-5.
To Next Page
