Installation Manual -Antenna & Feeder System Installation
BTS3802C & RRU Chapter 1 Installation Preparations
1-7

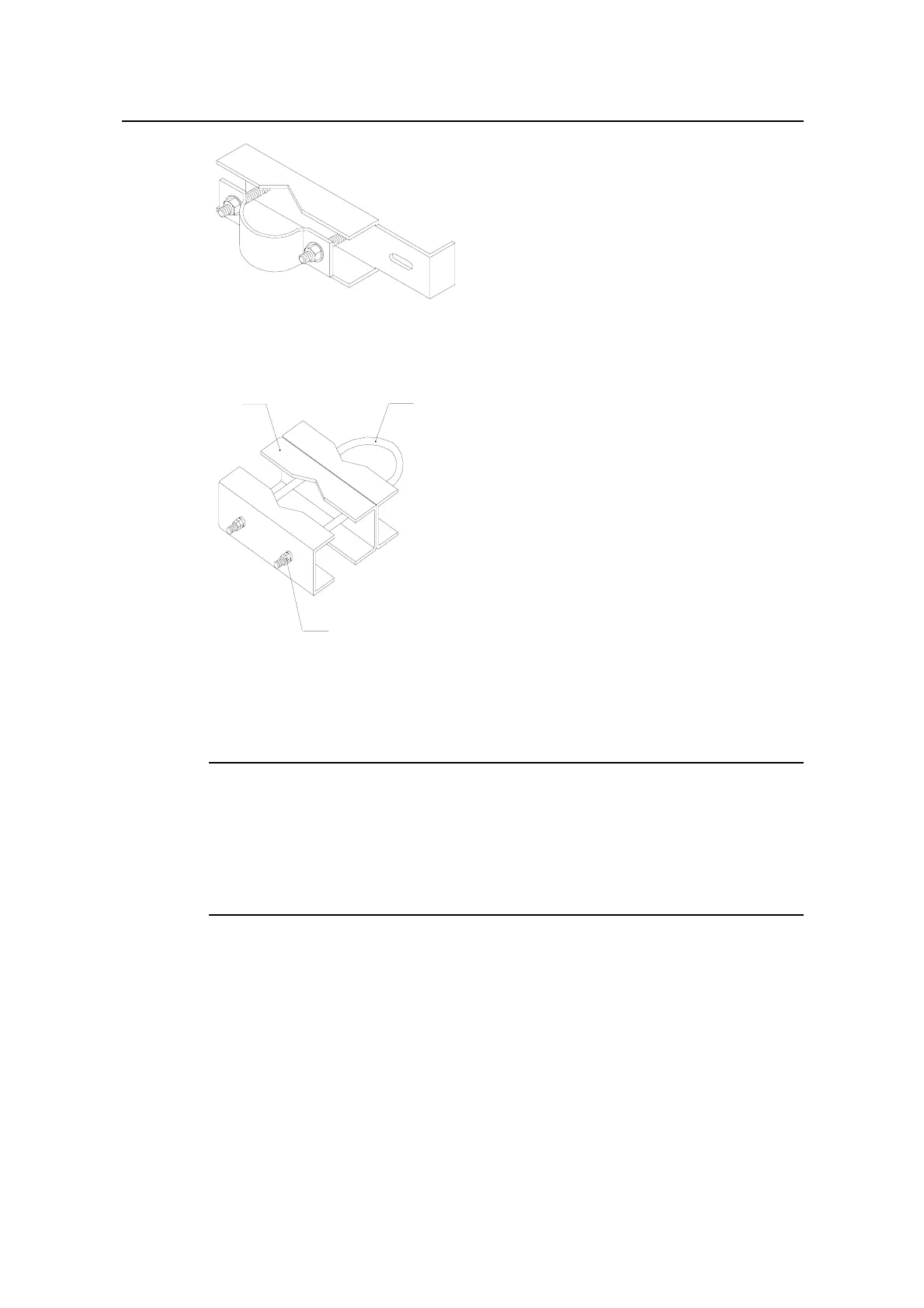

Figure 1-4 Fixing clip for omnidirectional antenna (1)
(1) (2)
(3)
(1) Fixing piece (2) U bolt M12×580 (3) M12 Nut
Figure 1-5 Fixing clip for omnidirectional antenna (2)
Note:
There are many types of fixing clips for omnidirectional antenna with different installation methods.
Figure 1-4 and Figure 1-5 illustrate two of them. The actual installations of fixing clips depend on the
specific conditions. The following description is based on the case adopting the fixing clip shown in
Figure 1-4.
The procedure of assembling the omnidirectional antenna is as follows:
1) Add the two fixing clips onto the omnidirectional antenna. The parts contacting
the antenna should be tightened, as shown in Figure 1-6.
To Next Page
