Installation Manual -Antenna & Feeder System Installation
BTS3802C & RRU Chapter 1 Installation Preparations
1-8
(1)
(2)
(3)

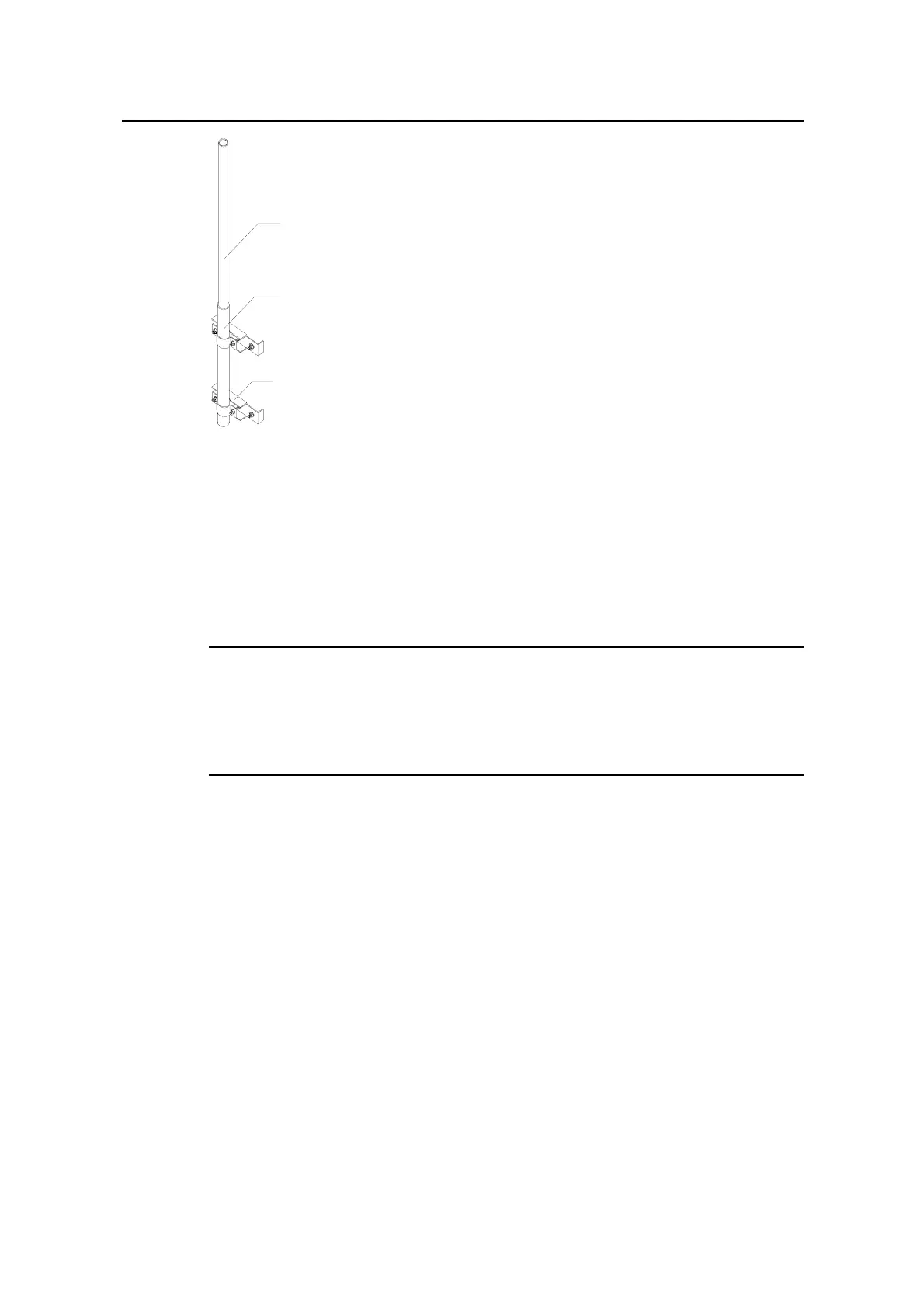

(1) Omnidirectional antenna (2) Antenna jacket (3) Fixing clip
Figure 1-6 Fixing of the omnidirectional antenna
2) Connect the connector of the jumper with the connector of the antenna and
tighten the connection.
3) Apply waterproof treatment to the connectors joining the antenna and the feeder.
See "2.13.1 Waterproof Treatment for Outdoor Connectors".
Note:
Steps 2) and 3) can be performed on the tower. When wrapping up a connector, please wrap up the
connector with a layer of insulation tape before wrapping with the semiconductive adhesive tape for the
convenience of removing the tape.
II. Assembling directional antenna
The accessories of directional antenna are antenna fixing clip (shown in Figure 1-7)
and pitch angle adjuster (shown in Figure 1-8) and jumper.
