Installation Manual -Antenna & Feeder System Installation
BTS3802C & RRU Chapter 1 Installation Preparations
1-9

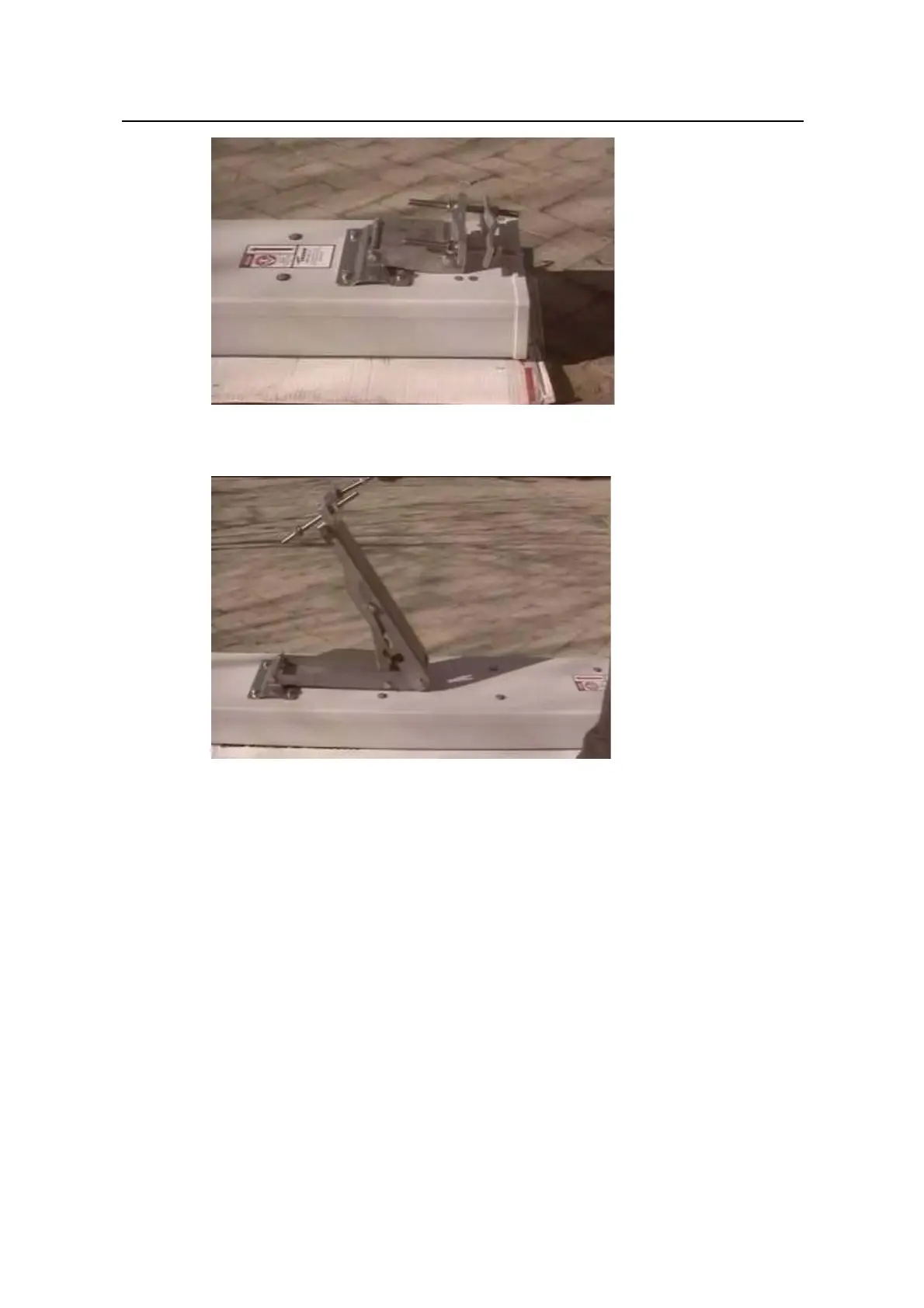

Figure 1-7 Fixing clip for the directional antenna
Figure 1-8 Pitch angle adjuster
The procedure of assembling directional antenna is as follows.
1) Identify the top and the bottom of the antenna according to the indications on the
back of the antenna. (The top is the pitch angle adjuster and the bottom is for
fixing the antenna on the support).
2) Install the accessories to their proper places in strict accordance with the
accessory assembly drawings provided by the supplier.
3) Connect the connector of the jumper with that of the antenna and tighten the
connection.
4) Apply waterproof and encapsulation treatment to the connectors joining the
antenna and the feeder. See "2.13.1 Waterproof Treatment for Outdoor
Connectors".
The finished connection of the jumpers and the directional antenna as well as the
relevant waterproof treatment is shown in Figure 1-9.
