Installation Manual – Antenna & F
eeder System Installation
BTS3802C & RRU
Chapter 2
Installing RF Antenna & Feeder System
2-13

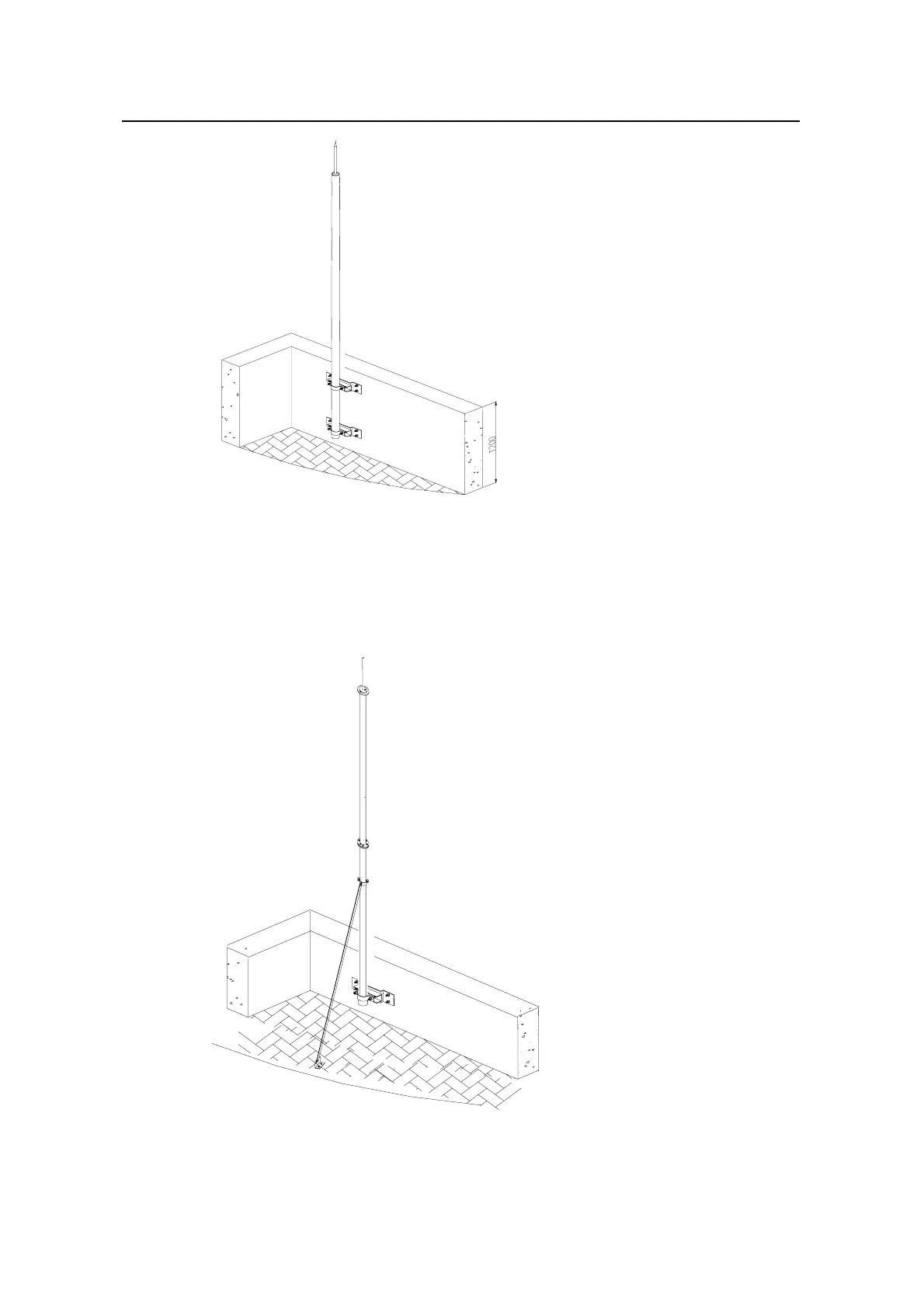

Figure 2-12
Fixing the antenna support onto the wall (no shorter than 1200mm)
When the wall is shorter than 1200mm, fix one
fixing point of the main supporting post
onto the wall using exp
ansion bolts and the
other onto the surface of the
roof, as
shown in
Figure 2-13
.
Figure 2-13
Fixing the antenna support onto the wall (shorter than 1200mm)
38
40
