Installation Manual – Antenna & Feeder System Installation
BTS3802C & RRU
Chapter 2
Installing RF Antenna & Feeder System
2-34
4
0
0
0
4
0
0
(1)
(3)
(2)
(4)
(5)

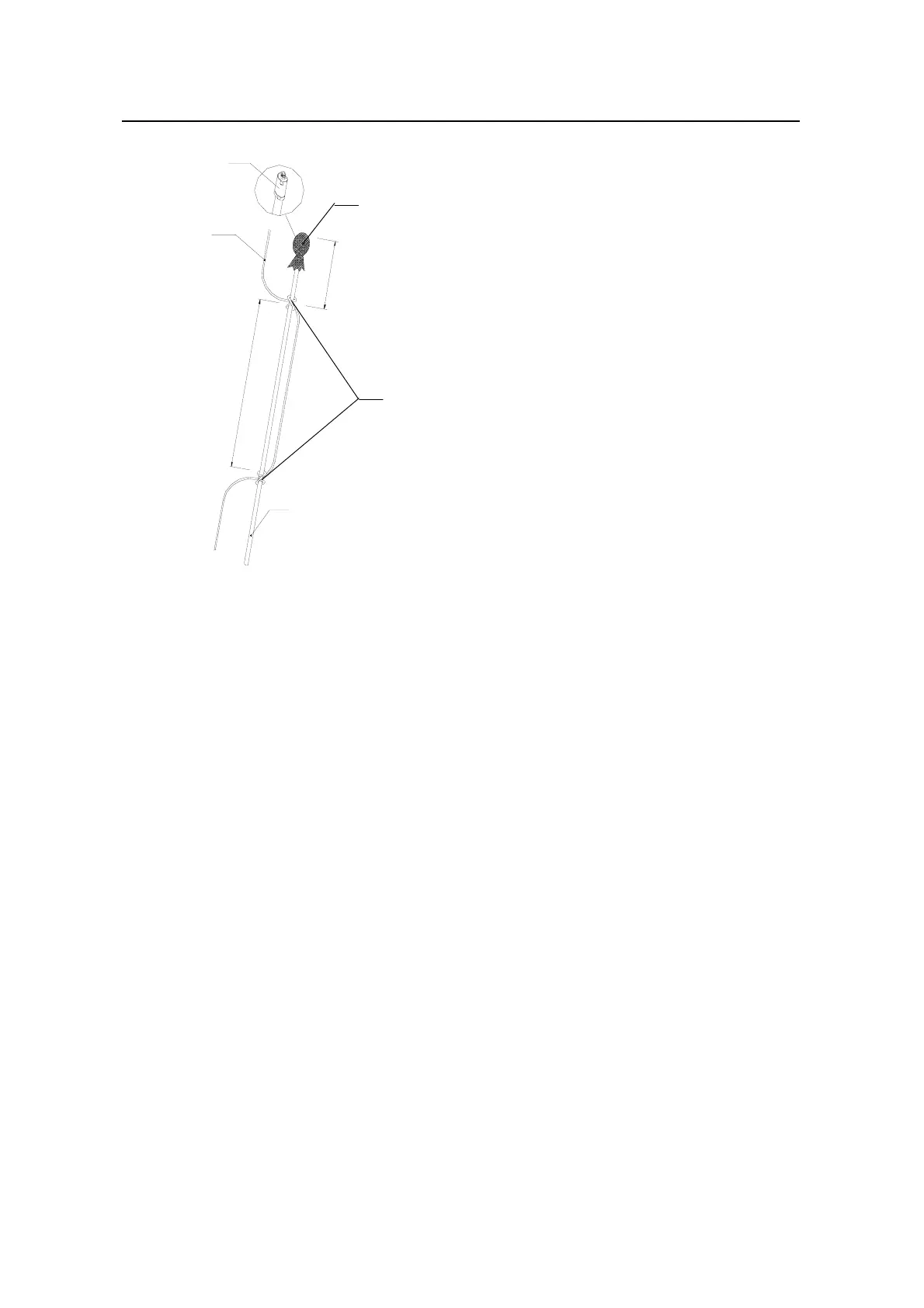

(1) Feeder connector (2) Wrapped connector (3) Lifting rope (4) Knot of the rope (5) Feeder
Figure 2-32 Protection of the feeder connector (unit: mm)
3) Fix the upper end of the feeder in a proper position by multiple-point fastening
lest that the feeder falls from the tower. However, it shall not be too close to the
antenna, as shown in Figure 2-33. Based on the different fixing requirements,
select the 1-for-3 or 1-for-1 fixing clip, as shown in Figure 2-34 and Figure 2-35.
