FusionModule5000 Smart Modular Data Center
Product Description (ECC800)
other end of the module, and the signal cables are routed through the control skylight located
on the top of the network cabinet to the other end of the module.

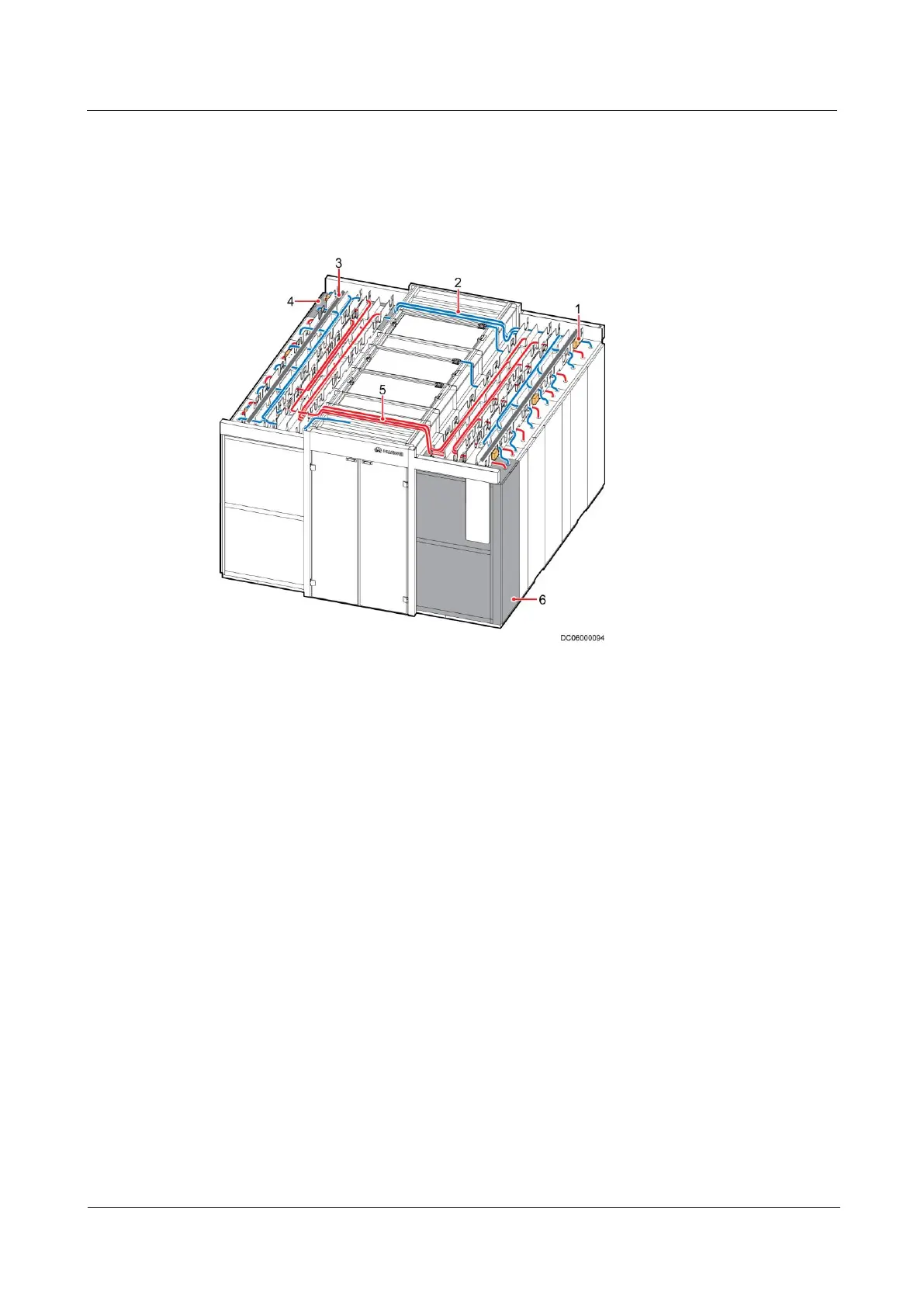

Figure 3-80shows how to route cables.
Figure 3-80 Diagram for routing cables
When the distance between two modules is 1200 mm, the power cables are routed through the
cable tray located on the top of the PDC to the other module, and the signal cable is routed
through the cable tray located on the top of the network cabinet to the other module. Figure
3-81shows how to route cables between modules.
