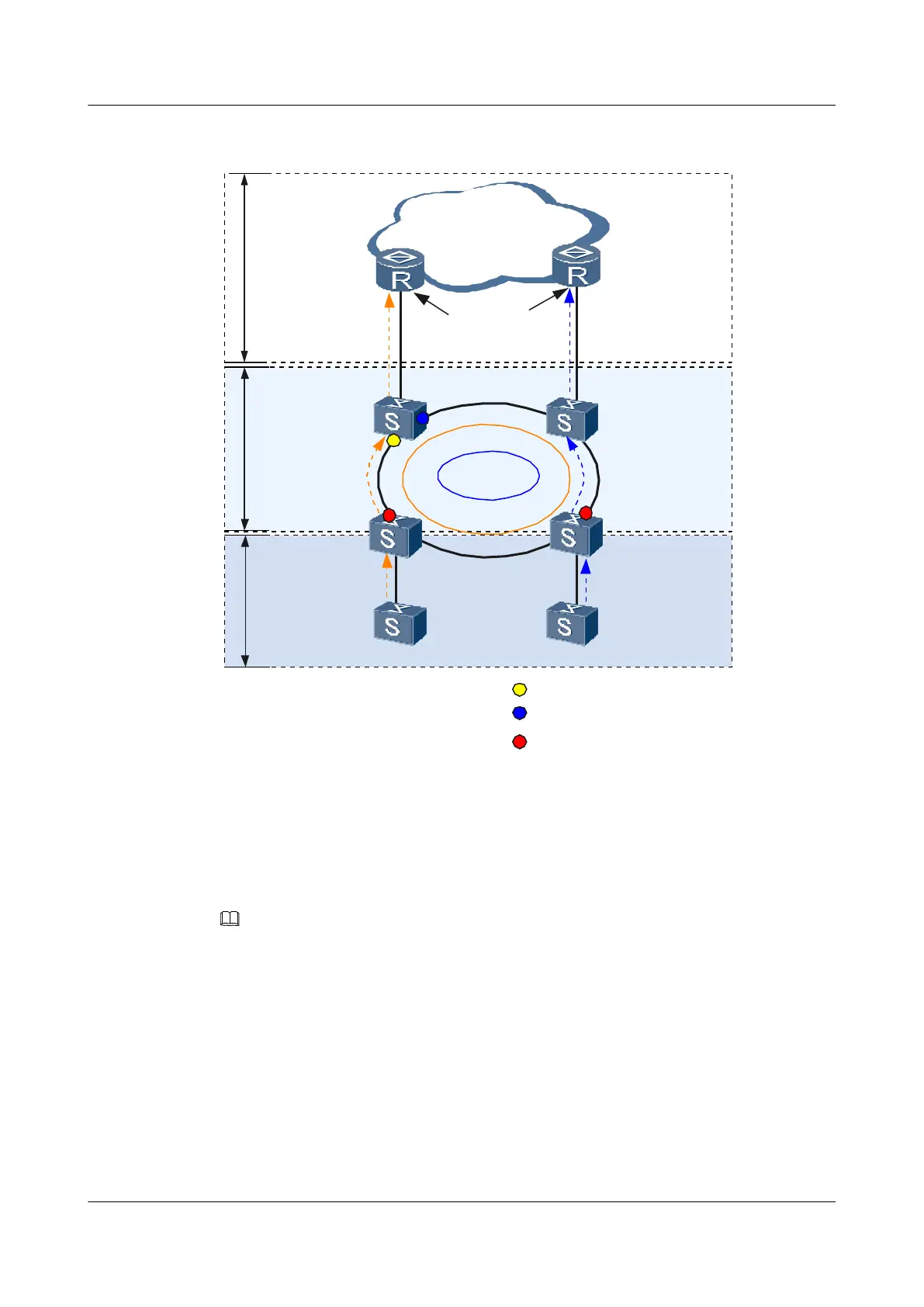

Figure 10-10 Networking diagram for SEP multi-instance
LSW1
LSW2
LSW4
LSW3
NPE1
NPE2
IP/MPLS Core
CE2CE1
SEP
Segment2
Block Port
Primary Edge Node
Secondary Edge Node
VRRP+peer BFD
Instance1:
VLAN 100~200
Instance2:
VLAN 201~400
Core
Aggregation
Access
group 2:Master
group 1:Backup
group 1:Master
group 2:Backup
SEP Segment1
P1
P2
To solve the problem of bandwidth waste and to implement traffic load balancing and link
backup, multi-instance can be deployed in the SEP network and mappings between protected
instances and user VLANs need to be set, as shown in Figure 10-10. Data traffic of different
VLANs can be transmitted along different paths.
NOTE
Currently, SEP multi-instance allows two SEP segments to be configured on a physical ring network.
Pre-configuration Tasks
Before configuring SEP multi-instance, complete the following tasks:
l Configuring Basic SEP Functions
l Specifying an Interface to Block
Data Preparation
To configure SEP multi-instance, you need the following data.
Quidway S7700 Smart Routing Switch
Configuration Guide - Ethernet 10 SEP Configuration
Issue 01 (2011-07-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
517
