Port Name Silk
Screen
Number
of Ports
Function
VDSL2 Port xDSL0
and
xDSL1
2 The VDSL2 port supports a maximum
transmission distance of 3.5 km (11,482 feet)
and supports VDSL2 service access in 48
channels.
NOTE
For pin assignments of the xDSL0 port, see Table
2-27. For pin assignments of the xDSL1 port, see
Table 2-28.
Mounting ears – 2 Used for fixing the device.

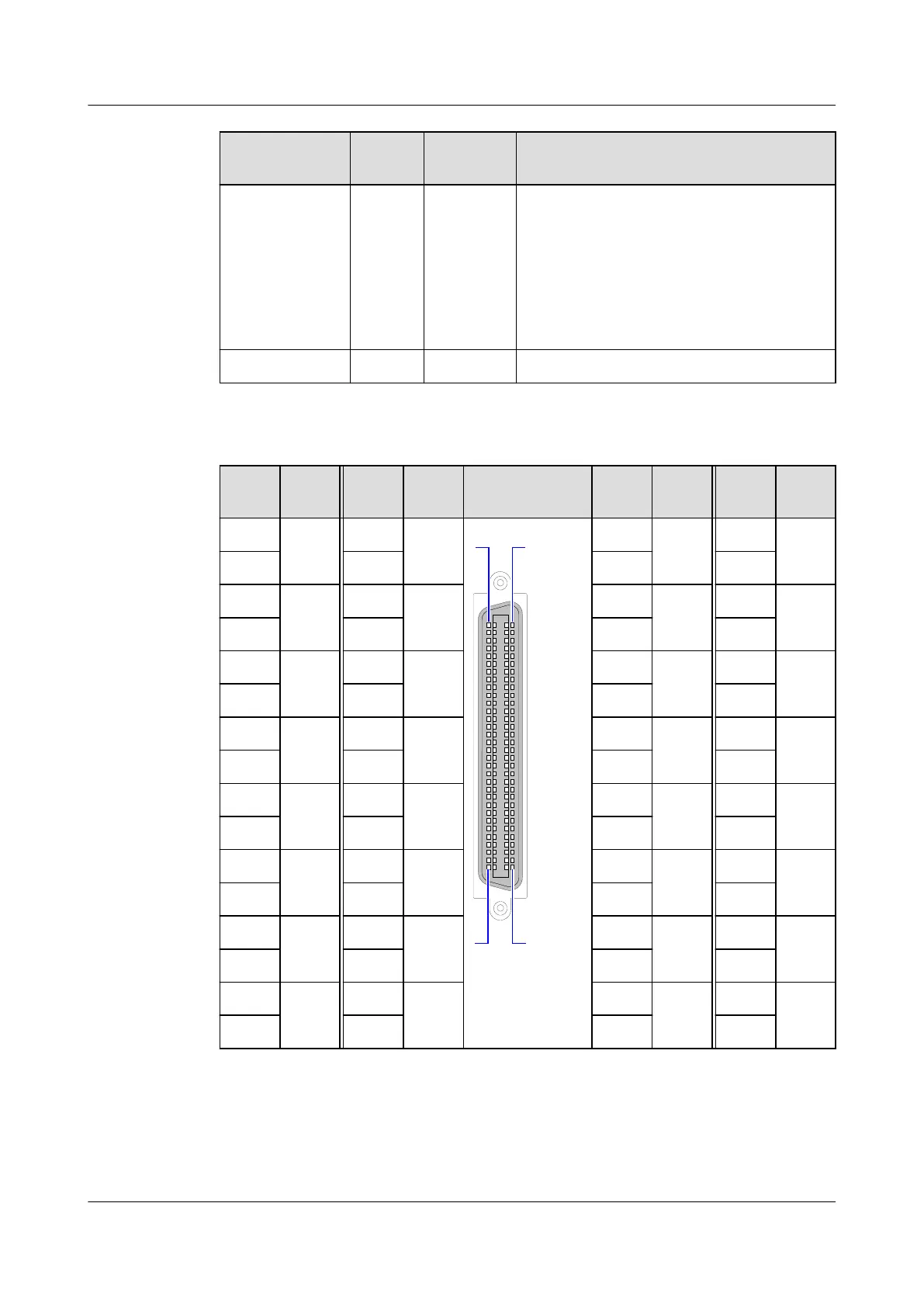

Table 2-27 Pin assignments of the xDSL0 port
Pin
Signa
l
Pin Signa
l
Port Pin Signa
l
Pin Signa
l
64 15 48 7
32 16 16 -
63 47 31 15
62 14 46 6 30 17 14 -
61 45 29 13
60 13 44 5 28 18 12 -
59 43 27 11
58 12 42 4 26 19 10 -
57 41 25 9
56 11 40 3 24 20 8 -
55 39 23 7
54 10 38 2 22 21 6 -
53 37 21 5
52 9 36 1 20 22 4 -
51 35 19 3
50 8 34 0 18 23 2 -
49 33 17 1
