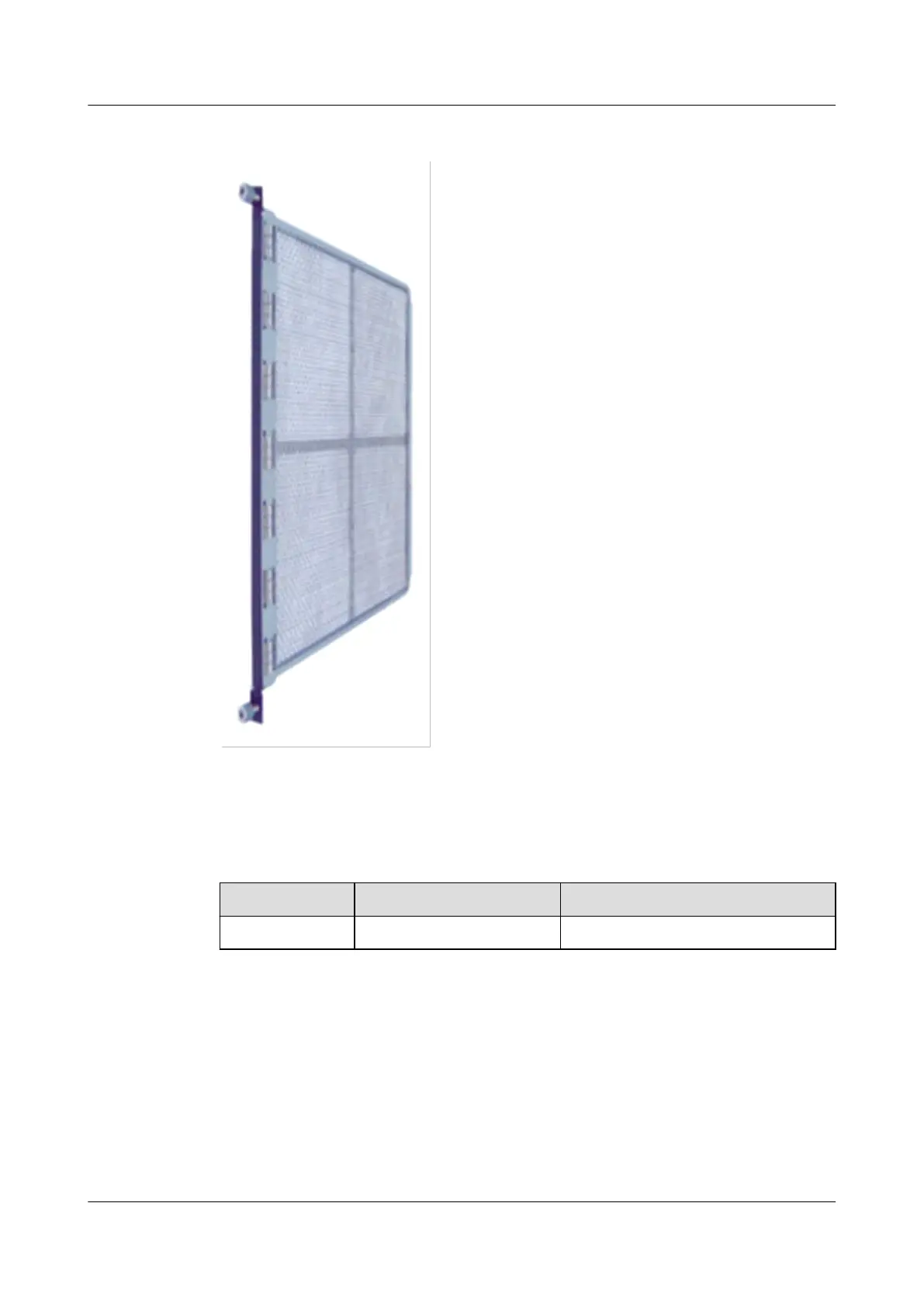

Figure 2-23 Appearance of the air filter in the MA5603T chassis
Table 2-41 lists the material and dimensions of the air filter.
Table 2-41 Material and dimensions of the air filter
Chassis
Material Dimensions (W x D x H)
MA5603T Wire netting 11.0 mm x 272.3 mm x 245.4 mm
Function
The air filter is installed at the left of the MA5603T chassis. The air filter is installed in the
slot at the left of the fan tray. When the cold air enters the chassis from the left of the chassis,
the air filter can filter the dust in the air.
