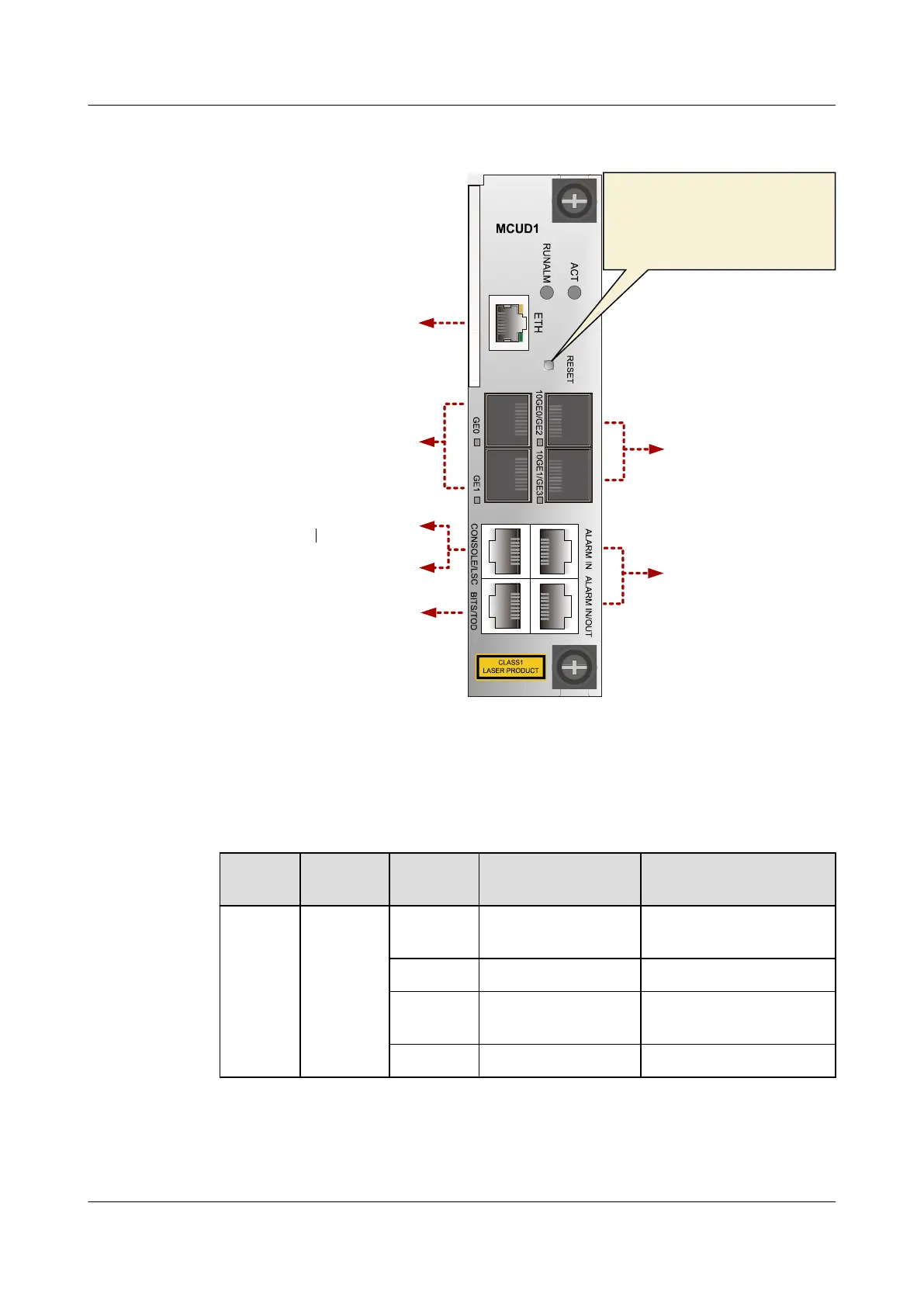

Front Panel Port
This button is used to reset the
board manually. Resetting the
board interrupts the services.
Hence, exercise caution when
using the reset button.
Environment
monitoring port
Connected to the
digital sensors
10GE or GEupstream
transmission or
cascading ports
Connected to 10GE Or
GE port of the upper-
layer device or the
cascaded device
BITS/TOD port
connected to the clock device
using the clock transfer cable
10/100/1000M Base-T
maintenance network port
Connected to the Ethernet
port of the maintenance
terminal
GE upstream transmission
or cascading ports
Connected to the GE port
of the upper-layer device
or the cascaded device
Maintenance serial port
Connected to the serial port
of the maintenance terminal
RS-485 monitoring serial port
Connected to the serial port
of the monitored device
For details about supported optical module, see 4.4 10GE Optical Module and 4.3 GE
Optical/Electrical Module.
Indicator
Indicato
r
Name Color Status Meaning
RUN
ALM
Running
status
indicator
Green Blinking The board functions
properly
Red Blinking The board is starting up
Orange Blinking A high-temperature alarm
is generated
Red On The board is faulty
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
246
