Functional Specifications
Please refer to "Upstream Interface Board Comparison".
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle

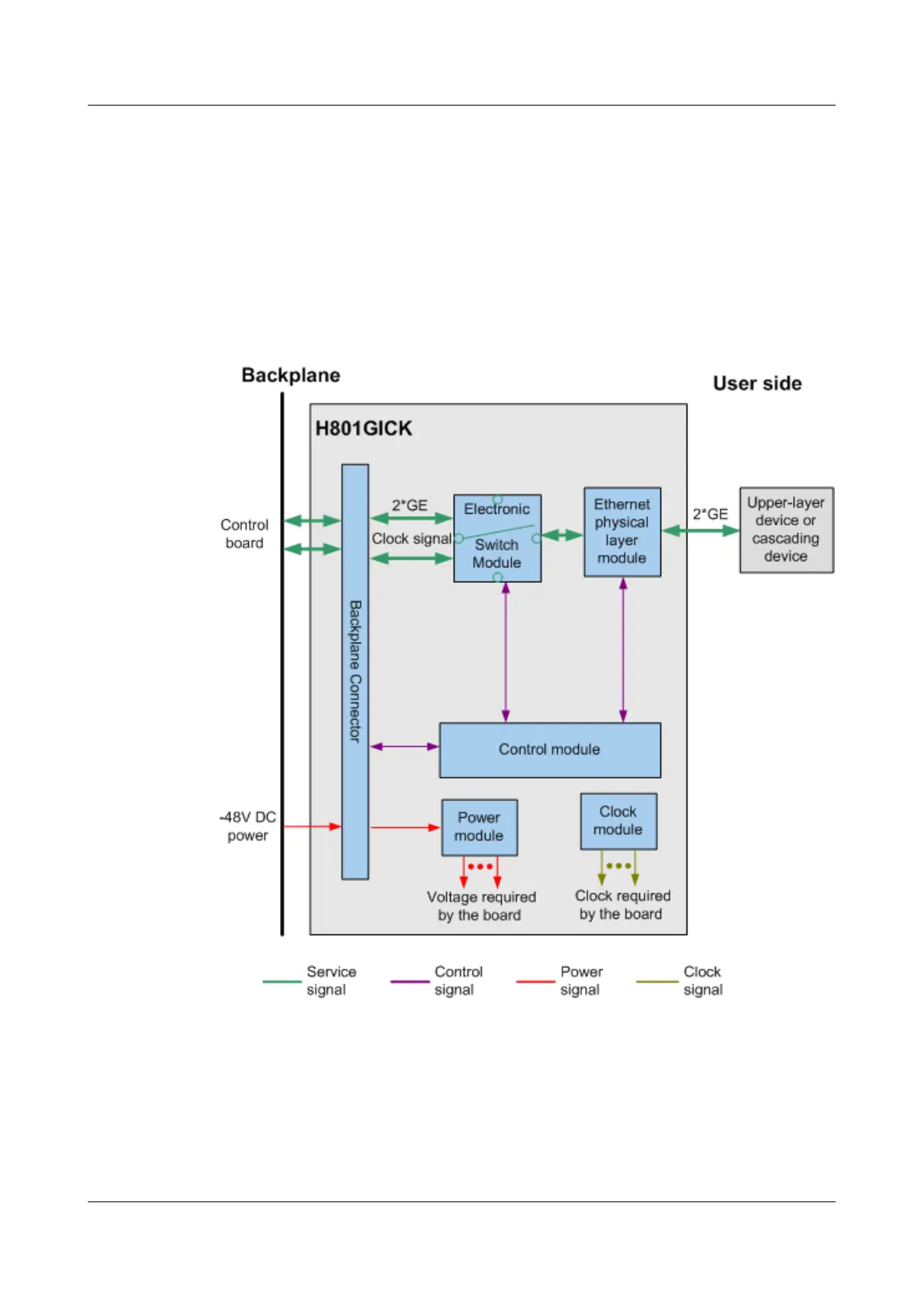

Figure 3-29 Working principle of the H801GICK board
The basic working principle of the H801GICK board is as follows:
l The control module loads the board software, controls the running of the software, and
manages the entire board.
l The electronic switch module switches the service signals during the active/standby
switchover.
