Huawei SmartAX MA5600T Hardware Description

Indicator
Indicato
r
Name Color Status Meaning
RUN
ALM
Running
status
indicator
Green Blinking slowly (on
for 1 s and off for 1 s
repeatedly)
The board works in the
normal state
Green Blinking quickly (on
for 0.25 s and off for
0.25 s repeatedly)
The board is starting up
Orange Blinking A high-temperature alarm
is generated
Red On The board is faulty
LINK Link status
indicator
Green On The connection is
successful
- Off The connection fails
ACT Data status
indicator
Yellow Blinking Data is being transmitted
- Off No data is being
transmitted
Daughter Board
The H801OPFA board is installed with one LEDA daughter board to control the LEDs on the
front panel. Figure 3-76 shows the position of the daughter board on the H801OPFA board.

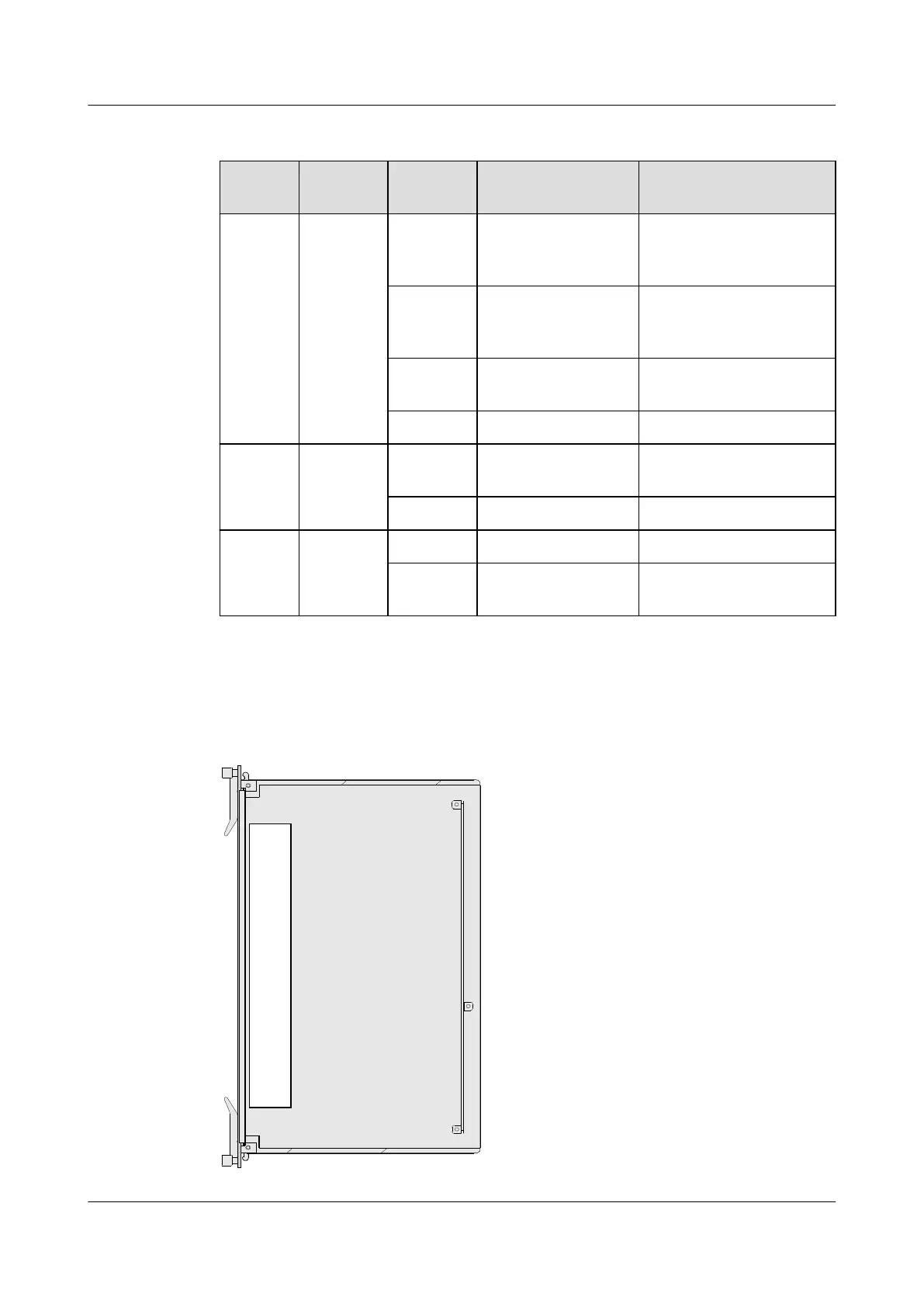

Figure 3-76 Position of the daughter board on the H801OPFA board
D
a
u
g
h
t
e
r
b
o
a
r
d
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
407
