The ventilation of the N63E-22 cabinet is as follows: Cool air enters the cabinet through the
cable space at the bottom of the service subrack. The air is exhausted by the fans upward
through the service subracks. The air exits from the top or from the air deflector of the
cabinet, as shown in Figure 1-23and Figure 1-24.

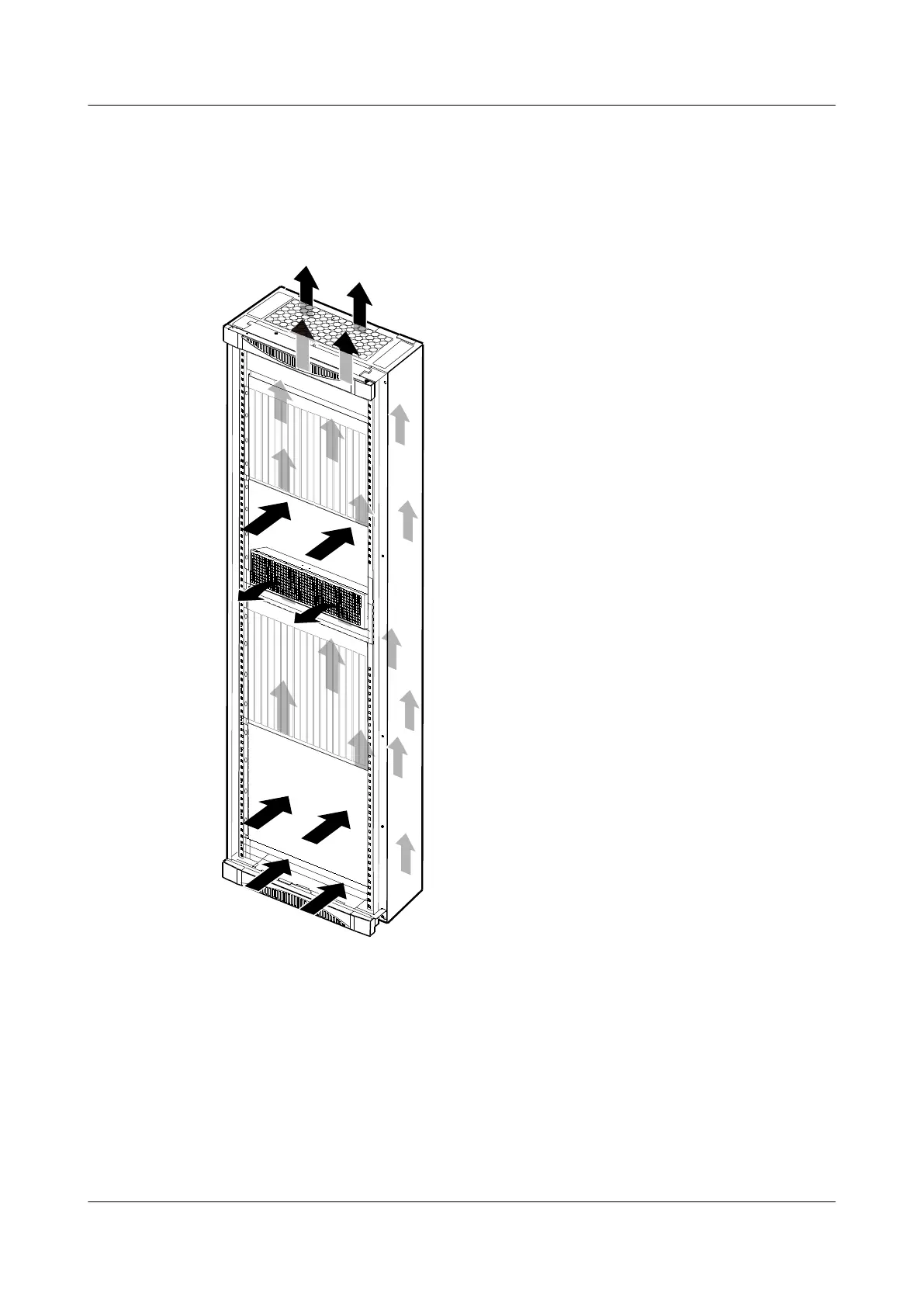

Figure 1-23 Ventilation of the N63E-22 cabinet installed with two service subracks
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
30
