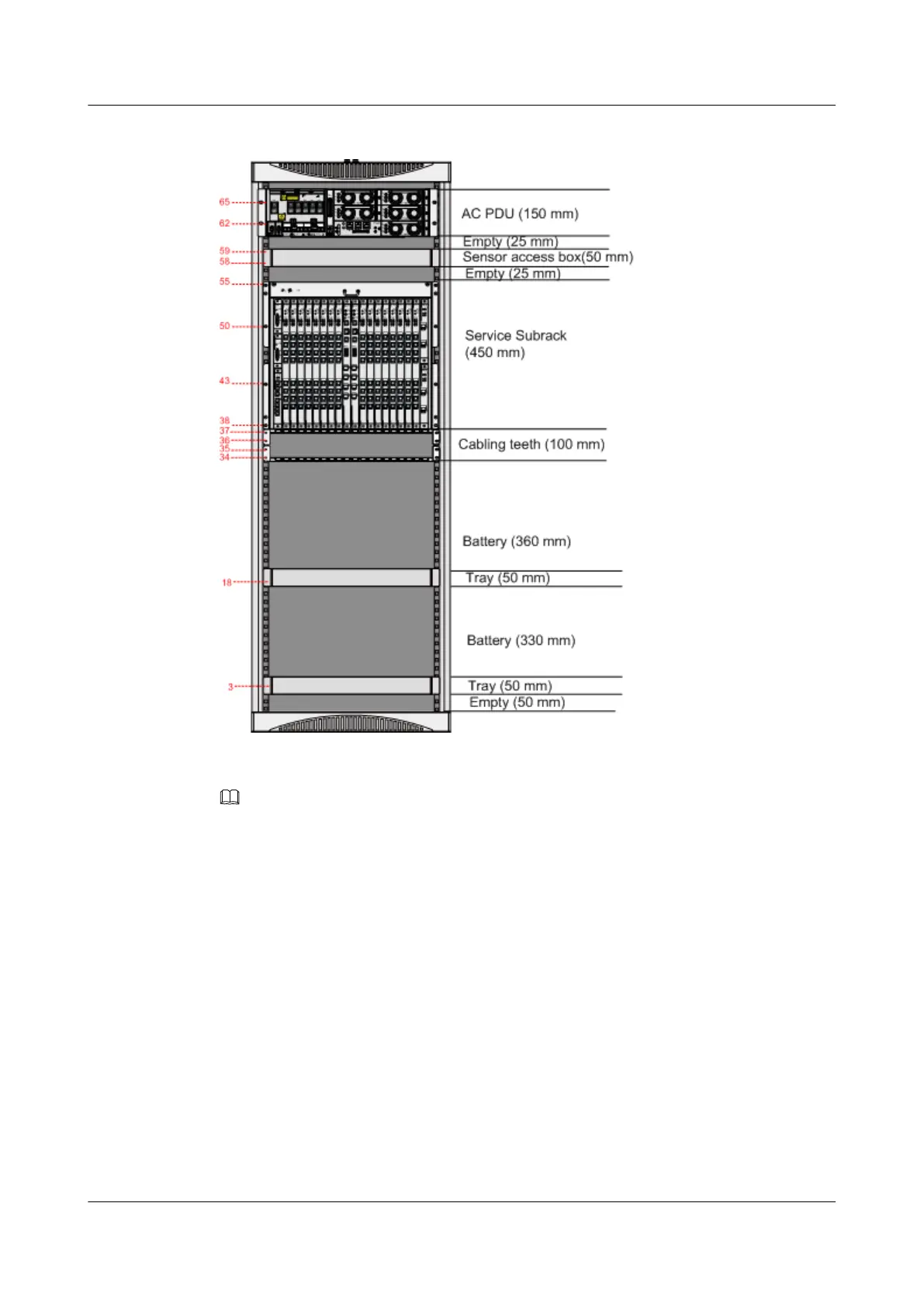

Figure 1-30 Configuration of the N66E-18 cabinet installed with one ETSI subrack
NOTE
l In Figure 1-30, the filled holes are for floating nuts to fasten subracks.
l Two power cables are configured for the ETSI subrack by default.
l Only this configuration is able to provide the battery group, and at most 100 AH is supported.
l In the range of 90 V AC to 175 V AC, the output current of the EPS75-4815AF power system
decreases linearly, limited within a specified range. In areas with 110 V power supply, dual-live-wire
input is recommended. When 110 V single-live-wire input is used, the output power of the
EPS75-4815AF power system reduces to half (maximum: 1600 W) of that in 220 V.
l Cabinet installation against the wall or back-to-back cabinet installation is not supported.
AC-powered Cabinet with One ETSI Subrack and One SPL Subrack
Figure 1-31 shows the configuration of the N66E-18 cabinet installed with one ETSI subrack
and one SPL subrack.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
38
