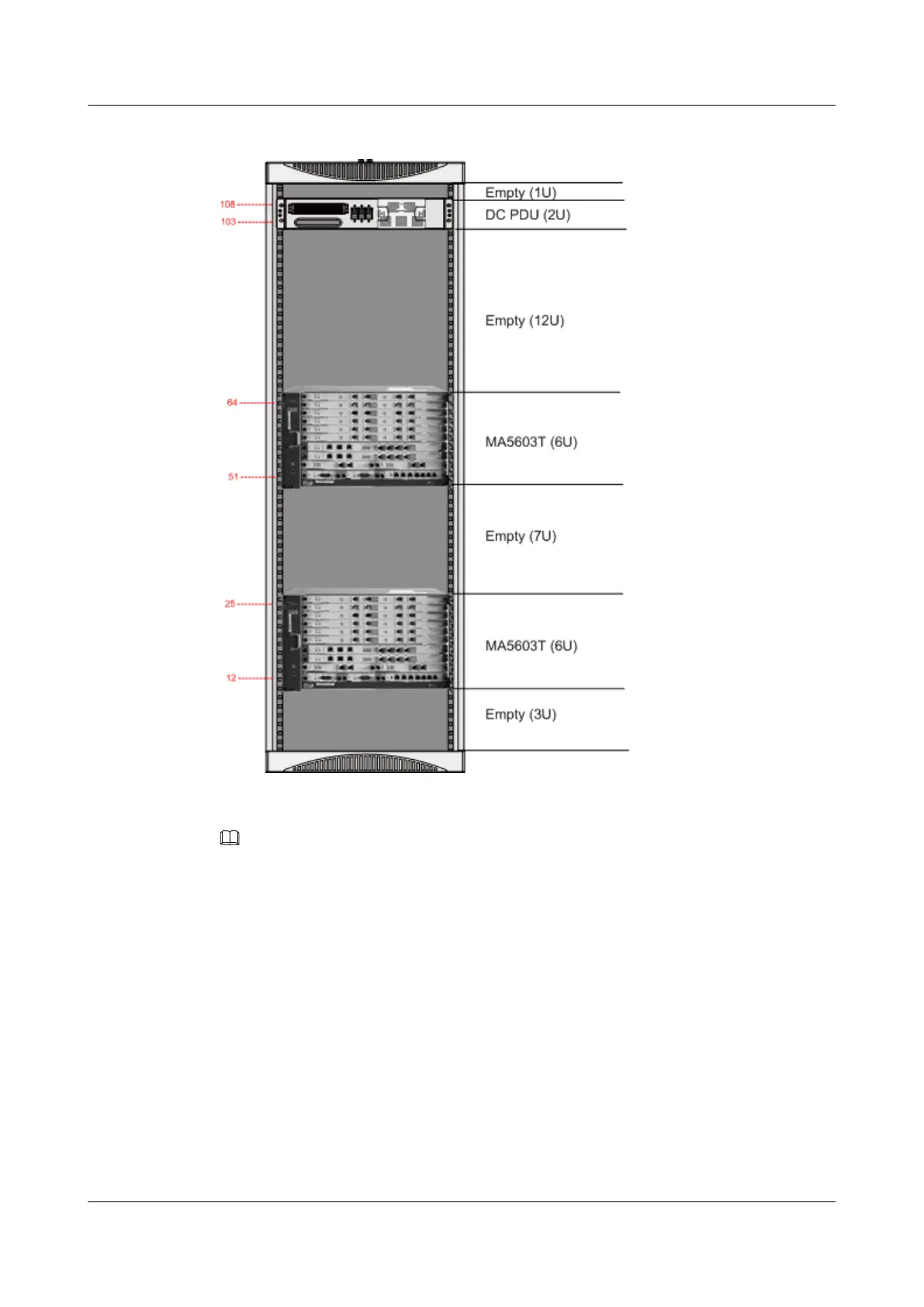

Figure 1-32 Configuration of the N66E-18 cabinet installed with two MA5603T chassis
NOTE
l In Figure 1-32, the filled holes are for floating nuts to fasten chassis.
l When all the service slots in the chassis are installed with the VDSL, combo, or PON boards, one
chassis is allowed in the cabinet.
l Cabinet installation against the wall or back-to-back cabinet installation is not supported.
AC-powered Cabinet with Two MA5603T Chassis
Figure 1-33 shows the configuration of the N66E-18 cabinet installed with two MA5603T
chassis.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
40
