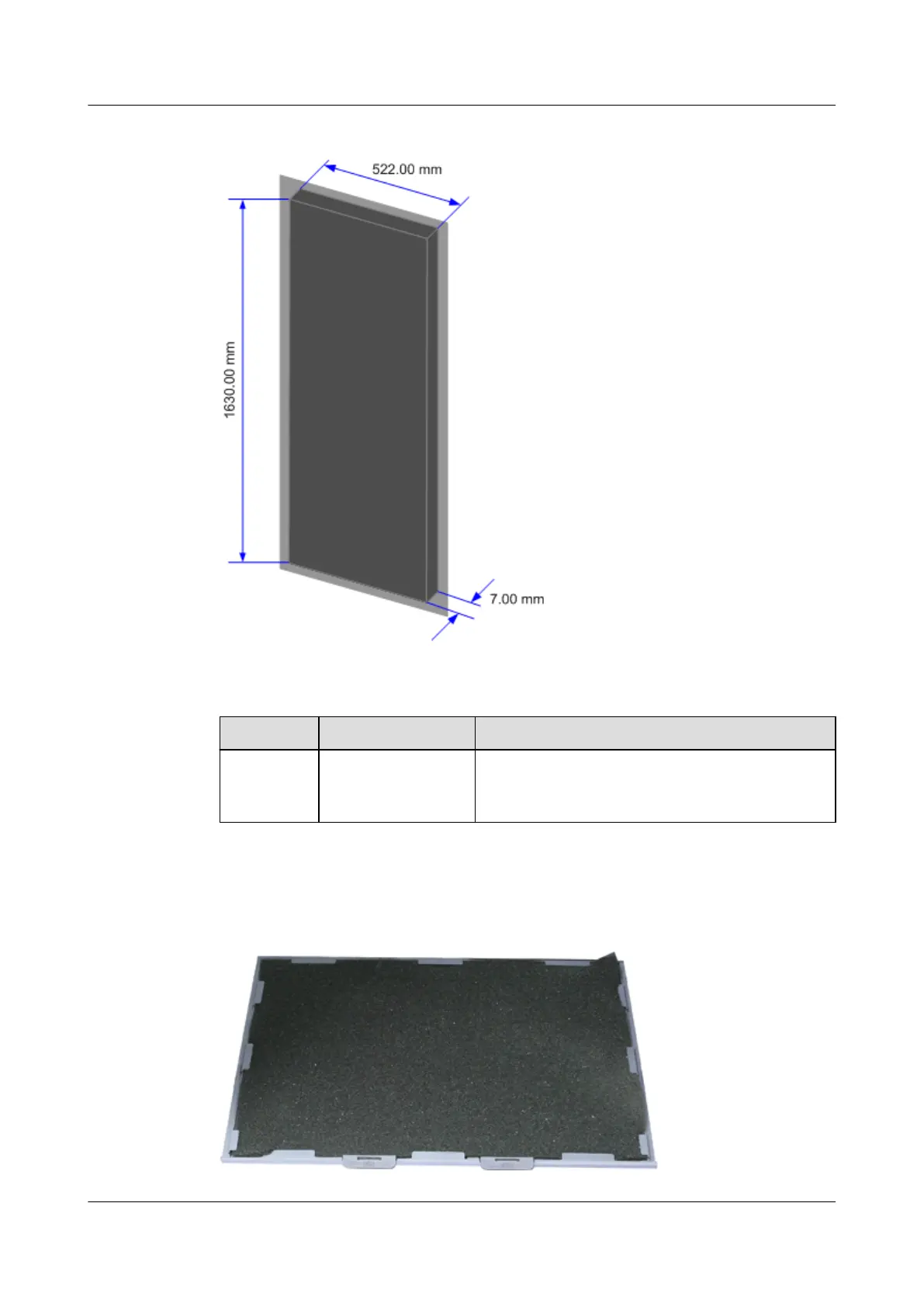

Figure 1-37 Dimensions of the air filter on the inner side of the doors of the N66E-18 cabinet
Table 1-6 Material and dimensions of the air filter on the inner side of the doors of the
N66E-18 cabinet
Cabinet
Material Dimensions (Width x Height x Thickness)
N66E-18 50PPI (50 sponge
picks per inch) black
sponge
522.00 mm x 1630.00 mm x 7.00 mm
Figure 1-38 shows the air filter at the bottom of the N66E-18 cabinet.
Figure 1-38 Appearance of the air filter at the bottom of the N66E-18 cabinet
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
