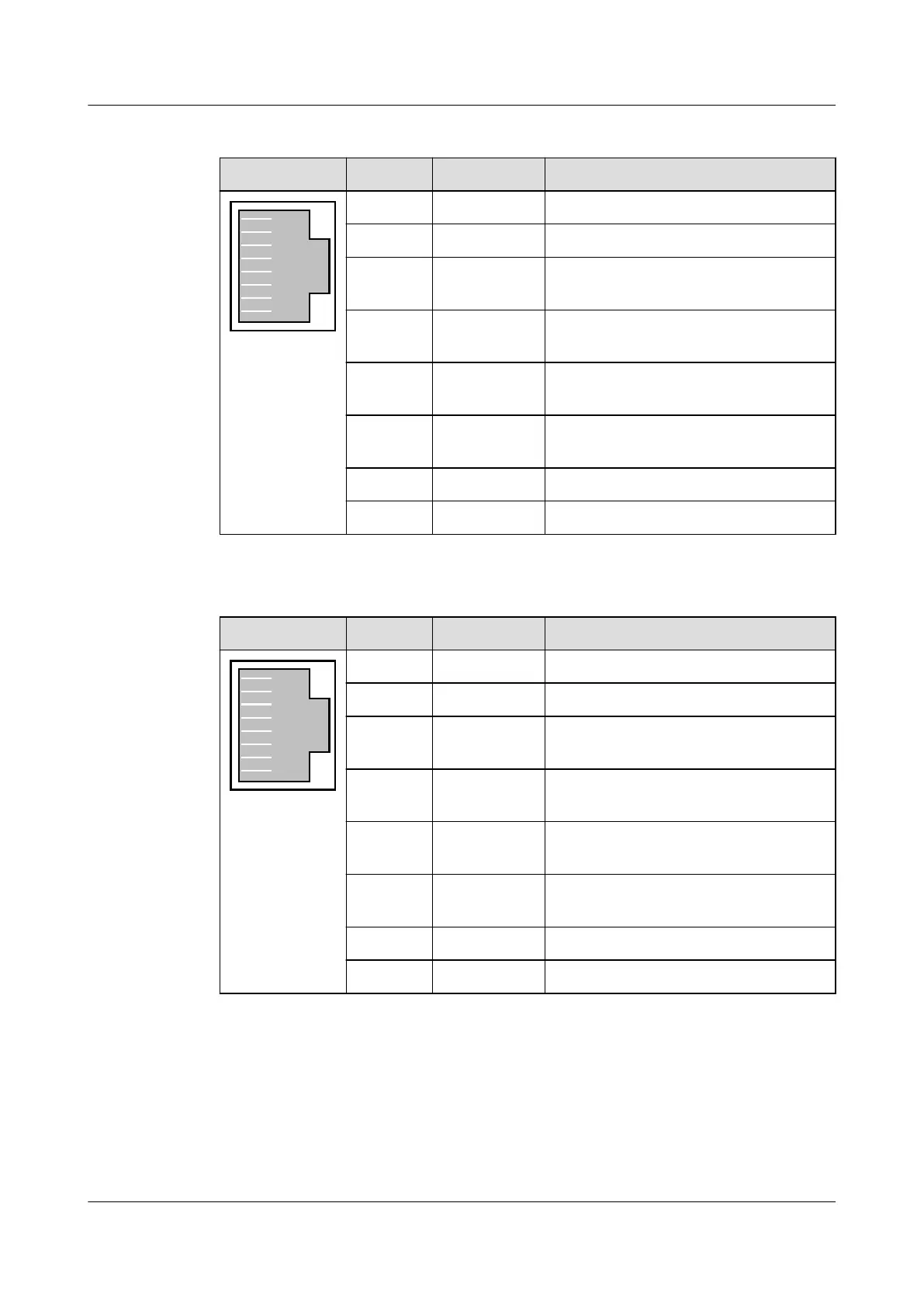

Table 3-151 Pin assignments of the BITS/TOD IN0 port
Port Pin Signal Remarks
1
2
3
4
5
6
7
8
1 BITS0_IN_B Input B of channel 0 BITS clock signals
2 BITS0_IN_A Input A of channel 0 BITS clock signals
3 PPS0_IN- Negative polarity of channel 0 PPS time
signals
4 TOD0_IN- Negative polarity of channel 0 TOD time
signals
5 TOD0_IN+ Positive polarity of channel 0 TOD time
signals
6 PPS0_IN+ Positive polarity of channel 0 PPS time
signals
7 - -
8 GND Grounding
Table 3-152 Pin assignments of the BITS/TOD IN1 port
Port
Pin Signal Remarks
1
2
3
4
5
6
7
8
1 BITS1_IN_B Input B of channel 1 BITS clock signals
2 BITS1_IN_A Input A of channel 1 BITS clock signals
3 PPS1_IN- Negative polarity of channel 1 PPS time
signals
4 TOD1_IN- Negative polarity of channel 1 TOD time
signals
5 TOD1_IN+ Positive polarity of channel 1 TOD time
signals
6 PPS1_IN+ Positive polarity of channel 1 PPS time
signals
7 - -
8 GND Grounding
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
731
