Functional Specifications
The H806VPEF board supports the following functions and features:
l Seven inputs of alarm digital parameters and one output of digital controlling parameters
l Two inputs of 2 Mbit/s or 2 MHz BITS clock signals
l Two inputs of 1 PPS+TOD time signals
l One output of 2 Mbit/s or 2 MHz clock signals
l The control board pass-through RS-485 monitoring serial port, and providing
environmental monitoring channel with the main control board
l External monitoring Ethernet port to transparently transmit monitored data
l Automatic power shutdown in case of a high temperature (supported by H802SCUN and
H801SCUK)
l Working with the H802MABO backplane and installed in the GPIO slot of the subrack.
l G.993.5
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principles

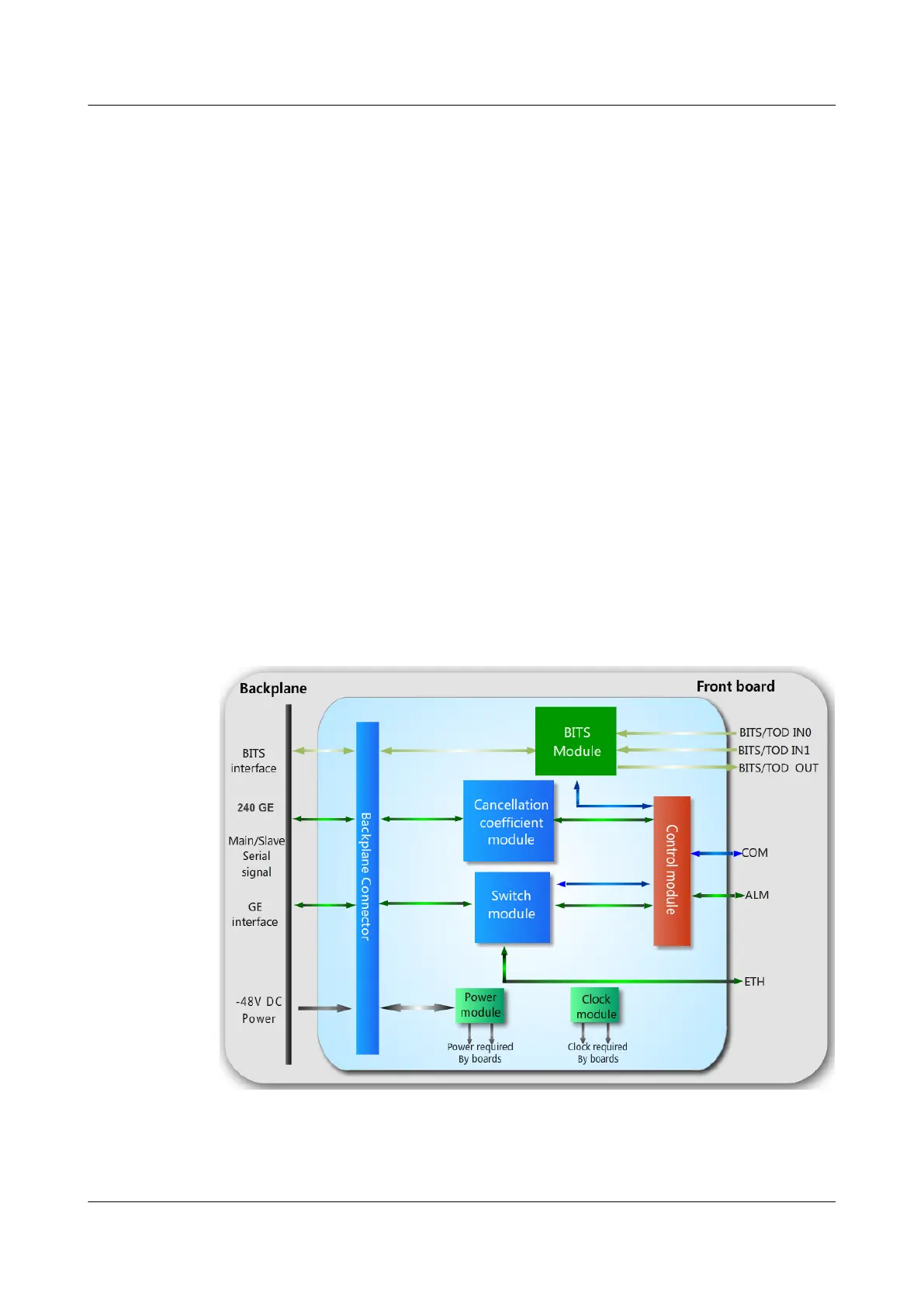

Figure 3-138 Working principles of the H806VPEF board
The basic working principles of the H806VPEF board are as follows:
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
735
